Datasheet AD8417 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | Bidirectional, Zero Drift, Current Sense Amplifier |
| Pages / Page | 17 / 4 — AD8417. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. … |
| Revision | E |
| File Format / Size | PDF / 352 Kb |
| Document Language | English |

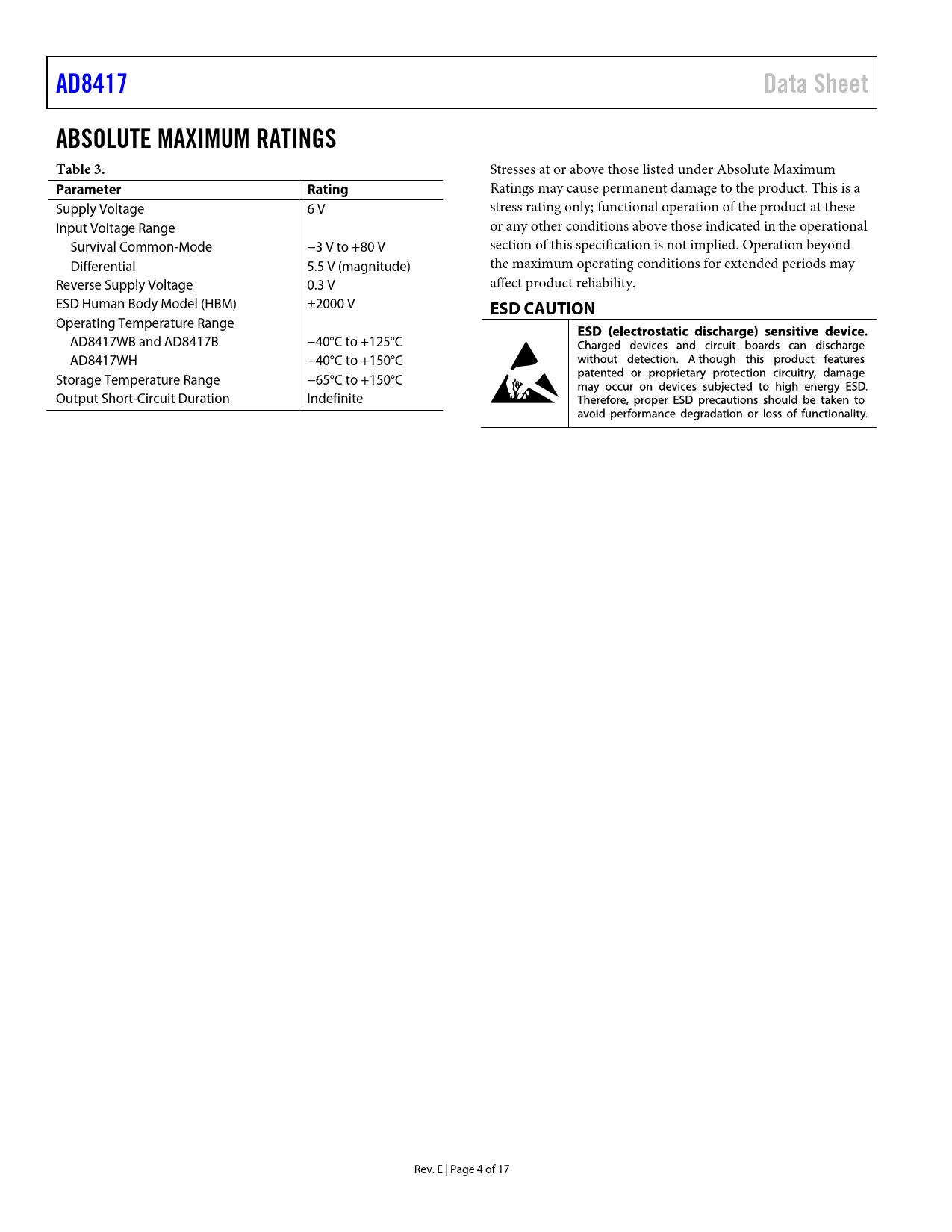

AD8417. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
AD8417 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage 6 V stress rating only; functional operation of the product at these Input Voltage Range or any other conditions above those indicated in the operational Survival Common-Mode −3 V to +80 V section of this specification is not implied. Operation beyond Differential 5.5 V (magnitude) the maximum operating conditions for extended periods may Reverse Supply Voltage 0.3 V affect product reliability. ESD Human Body Model (HBM) ±2000 V
ESD CAUTION
Operating Temperature Range AD8417WB and AD8417B −40°C to +125°C AD8417WH −40°C to +150°C Storage Temperature Range −65°C to +150°C Output Short-Circuit Duration Indefinite Rev. E | Page 4 of 17 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TYPICAL APPLICATION CIRCUIT REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION OUTPUT OFFSET ADJUSTMENT UNIDIRECTIONAL OPERATION Ground Referenced Output Mode VS Referenced Output Mode BIDIRECTIONAL OPERATION EXTERNAL REFERENCED OUTPUT SPLITTING THE SUPPLY SPLITTING AN EXTERNAL REFERENCE APPLICATIONS INFORMATION MOTOR CONTROL 3-Phase Motor Control H-Bridge Motor Control SOLENOID CONTROL High-Side Current Sense with a Low-Side Switch High-Side Current Sense with a High-Side Switch High Rail Current Sensing PINOUT OPTION ENGINEERED FOR FMEA OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
