Datasheet AD8418 (Analog Devices) - 4

ManufacturerAnalog Devices
DescriptionBidirectional, Zero-Drift, Current Sense Amplifier
Pages / Page16 / 4 — AD8418. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. …
File Format / SizePDF / 301 Kb
Document LanguageEnglish

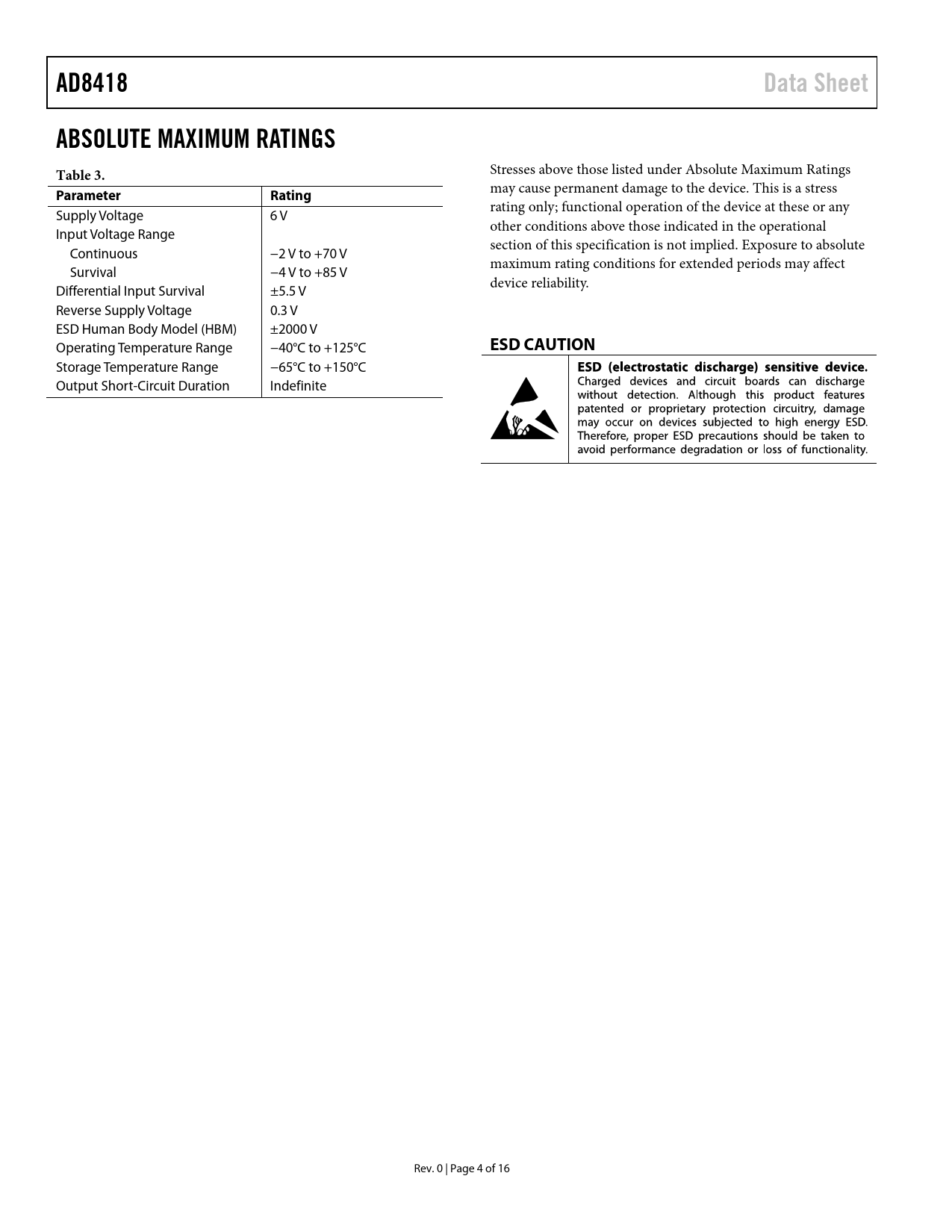

AD8418. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION

AD8418 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3 Parameter Rating ESD CAUTION

Model Line for this Datasheet

Text Version of Document

AD8418 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any Supply Voltage 6 V other conditions above those indicated in the operational Input Voltage Range section of this specification is not implied. Exposure to absolute Continuous −2 V to +70 V maximum rating conditions for extended periods may affect Survival −4 V to +85 V device reliability. Differential Input Survival ±5.5 V Reverse Supply Voltage 0.3 V ESD Human Body Model (HBM) ±2000 V Operating Temperature Range −40°C to +125°C
ESD CAUTION
Storage Temperature Range −65°C to +150°C Output Short-Circuit Duration Indefinite Rev. 0 | Page 4 of 16 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Output Offset Adjustment Unidirectional Operation Ground Referenced Output VS Referenced Output Bidirectional Operation External Referenced Output Splitting the Supply Splitting an External Reference Applications Information Motor Control 3-Phase Motor Control H-Bridge Motor Control Solenoid Control High-Side Current Sense with a Low-Side Switch High-Side Current Sense with a High-Side Switch High Rail Current Sensing Outline Dimensions Ordering Guide Automotive Products
