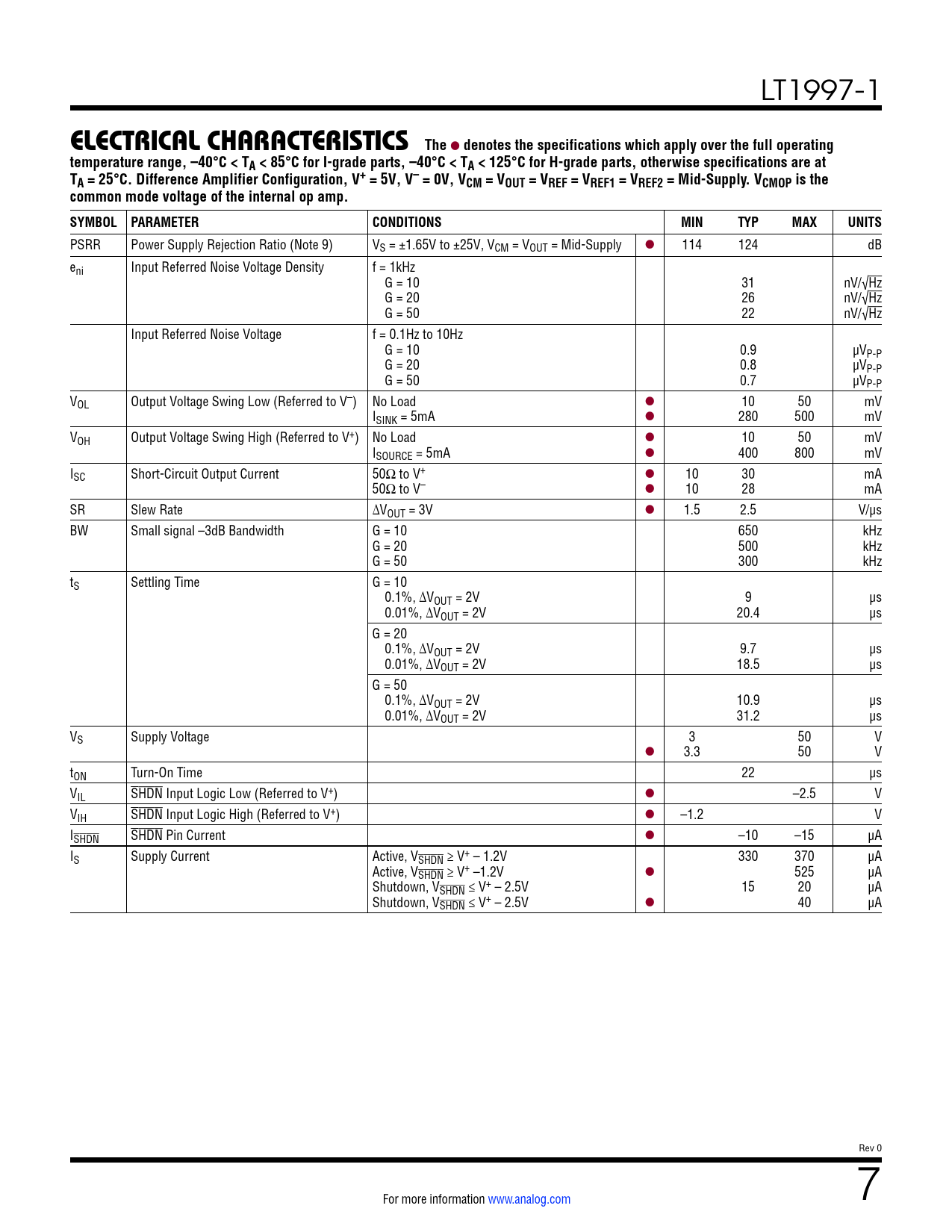

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT1997-1
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, –40°C < TA < 85°C for I-grade parts, –40°C < TA < 125°C for H-grade parts, otherwise specifications are at TA = 25°C. Difference Amplifier Configuration, V+ = 5V, V– = 0V, VCM = VOUT = VREF = VREF1 = VREF2 = Mid-Supply. VCMOP is the common mode voltage of the internal op amp. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
PSRR Power Supply Rejection Ratio (Note 9) VS = ±1.65V to ±25V, VCM = VOUT = Mid-Supply l 114 124 dB eni Input Referred Noise Voltage Density f = 1kHz G = 10 31 nV/√Hz G = 20 26 nV/√Hz G = 50 22 nV/√Hz Input Referred Noise Voltage f = 0.1Hz to 10Hz G = 10 0.9 µVP-P G = 20 0.8 µVP-P G = 50 0.7 µVP-P VOL Output Voltage Swing Low (Referred to V–) No Load l 10 50 mV ISINK = 5mA l 280 500 mV VOH Output Voltage Swing High (Referred to V+) No Load l 10 50 mV ISOURCE = 5mA l 400 800 mV ISC Short-Circuit Output Current 50Ω to V+ l 10 30 mA 50Ω to V– l 10 28 mA SR Slew Rate ∆VOUT = 3V l 1.5 2.5 V/µs BW Small signal –3dB Bandwidth G = 10 650 kHz G = 20 500 kHz G = 50 300 kHz tS Settling Time G = 10 0.1%, ∆VOUT = 2V 9 µs 0.01%, ∆VOUT = 2V 20.4 µs G = 20 0.1%, ∆VOUT = 2V 9.7 µs 0.01%, ∆VOUT = 2V 18.5 µs G = 50 0.1%, ∆VOUT = 2V 10.9 µs 0.01%, ∆VOUT = 2V 31.2 µs VS Supply Voltage 3 50 V l 3.3 50 V tON Turn-On Time 22 µs VIL SHDN Input Logic Low (Referred to V+) l –2.5 V VIH SHDN Input Logic High (Referred to V+) l –1.2 V ISHDN SHDN Pin Current l –10 –15 µA IS Supply Current Active, VSHDN ≥ V+ – 1.2V 330 370 µA Active, VSHDN ≥ V+ –1.2V l 525 µA Shutdown, VSHDN ≤ V+ – 2.5V 15 20 µA Shutdown, VSHDN ≤ V+ – 2.5V l 40 µA Rev 0 For more information www.analog.com 7 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Block Diagram Applications Information Package Description Typical Application Related Parts Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Package Description Typical Application Related Parts
