Datasheet AD8275 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | G = 0.2, Level Translation, 16-Bit ADC Driver |
| Pages / Page | 16 / 5 — Data Sheet. AD8275. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. REF1. … |
| Revision | B |
| File Format / Size | PDF / 541 Kb |
| Document Language | English |

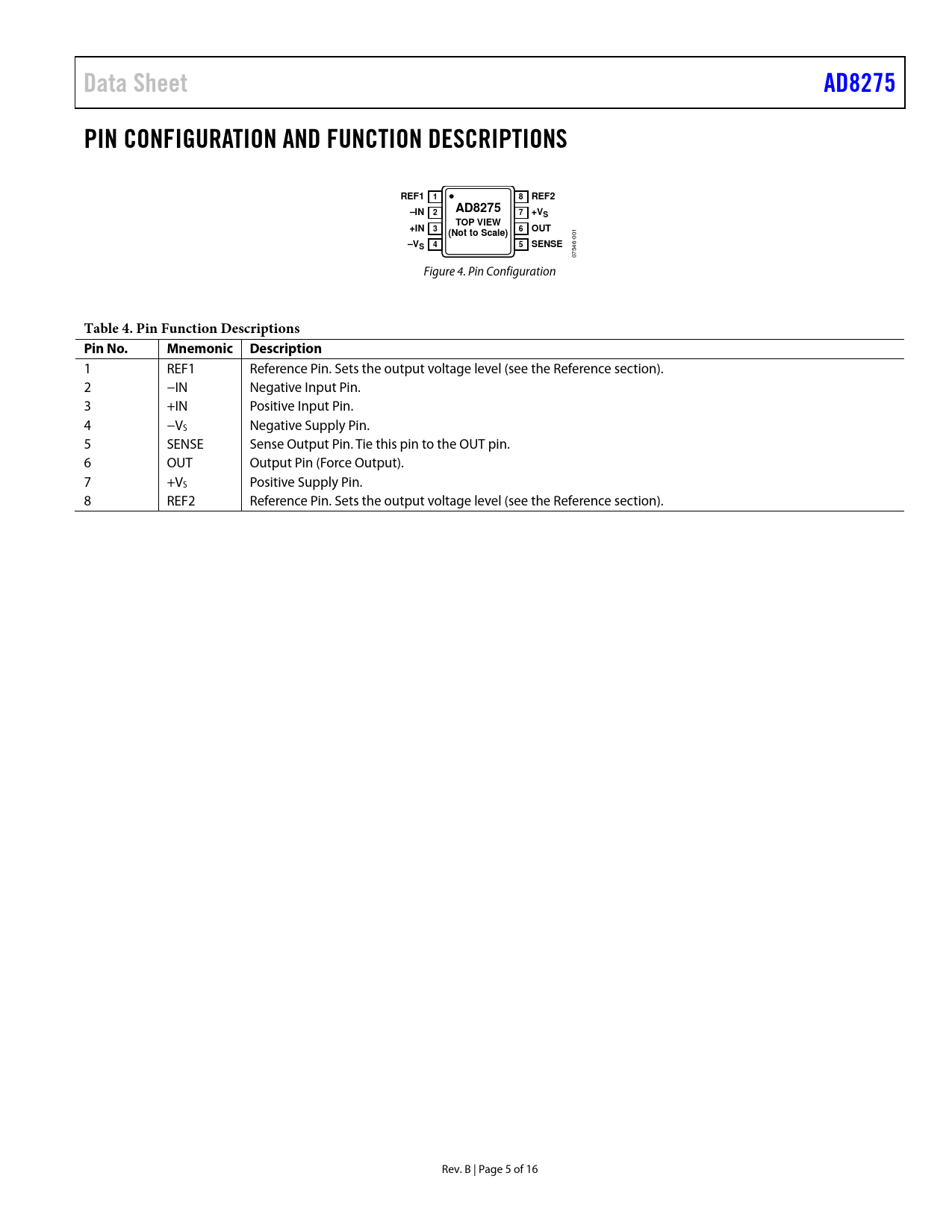

Data Sheet. AD8275. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. REF1. REF2. –IN. +VS. TOP VIEW. +IN. OUT. (Not to Scale). –VS 4. SENSE
Model Line for this Datasheet
Text Version of Document
link to page 12 link to page 12
Data Sheet AD8275 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS REF1 1 8 REF2 –IN AD8275 2 7 +VS TOP VIEW +IN 3 6 OUT (Not to Scale)
001
–VS 4 5 SENSE
07546- Figure 4. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 REF1 Reference Pin. Sets the output voltage level (see the Reference section). 2 −IN Negative Input Pin. 3 +IN Positive Input Pin. 4 −VS Negative Supply Pin. 5 SENSE Sense Output Pin. Tie this pin to the OUT pin. 6 OUT Output Pin (Force Output). 7 +VS Positive Supply Pin. 8 REF2 Reference Pin. Sets the output voltage level (see the Reference section). Rev. B | Page 5 of 16 Document Outline Features Applications Pin Configuration Typical Application General Description Revision History Specifications Absolute Maximum Ratings Maximum Power Dissipation ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Basic Connection Power Supplies Reference Common-Mode Input Voltage Range Input Protection Configurations Applications Information Driving a Single-Ended ADC Differential Outputs Increasing Input Impedance AC Coupling Using the AD8275 as a Level Translator in a Data Acquisition System Outline Dimensions Ordering Guide
