Per Pin Parametric Measurement Unit/Source Measure Unit AD5520 FEATURES GENERAL DESCRIPTION Force/measure functions
The AD5520 is a single-channel, per pin parametric measure-
FIMV, FVMI, FVMV, FIMI, FNMV
ment unit (PPMU) for use in semiconductor automatic
Force/measure voltage range ±11 V
test equipment. The part is also suited for use as a source
4 user programmable force/measure current ranges
measurement unit for instrumentation applications. It
±4 μA, ±40 μA, ±400 μA, ±4 mA (external resistors)
contains programmable modes to force a pin voltage and
2 user programmable extended current ranges
measure the corresponding current, or force a current and
Up to 6 mA without external driver
measure the voltage. The AD5520 can force/measure over a
Higher currents with external driver
±11 V range or user-programmable currents up to ±4 mA
Clamp circuitry and window comparators on board
with its on-board force amplifier. An external amplifier is
Guard amplifier
required for wider current ranges. The device provides a force
64-lead LQFP package
sense capability to ensure accuracy at the tester pin. A guard
APPLICATIONS
output is also available to drive the shield of a force/sense pair. The AD5520 is available in a 64-lead LQFP package.
Automatic test equipment Per pin PMU, shared pin PMU, device power supply instrumentation Source measure, parametric measurement, precision measurement FUNCTIONAL BLOCK DIAGRAM 0 1 2 AVEE AVCC IN IN IN P P P OUT0 OUT1 OUT2 P P P AD5520 COM COM COM COM COM COM FOH BW SELECT FOH3 FOH2 FIN FOH1 FOH0 MEASI5H CLAMP MEASI4H DETECT MEASI3H MEASI2H CLH MEASI1H CLL MEASI0H REFGND G = 16 MEASIOUT MEASIL ISENSE INST AMP GUARDIN MEASOUT VSENSE G = 1 INST AMP GUARD G = 1 MEASVH MEASVOUT COMPARATOR MEASVL CPH CPOH AGND LOGICS QM5 CPOL ECT QM4 CPL ET D B 2 1 0 L DD SEL SEL ST CPCK STANDBY MOE CPSEL F M AM AM AM CLHDETECT CL CS DV DGND AC0 AC1

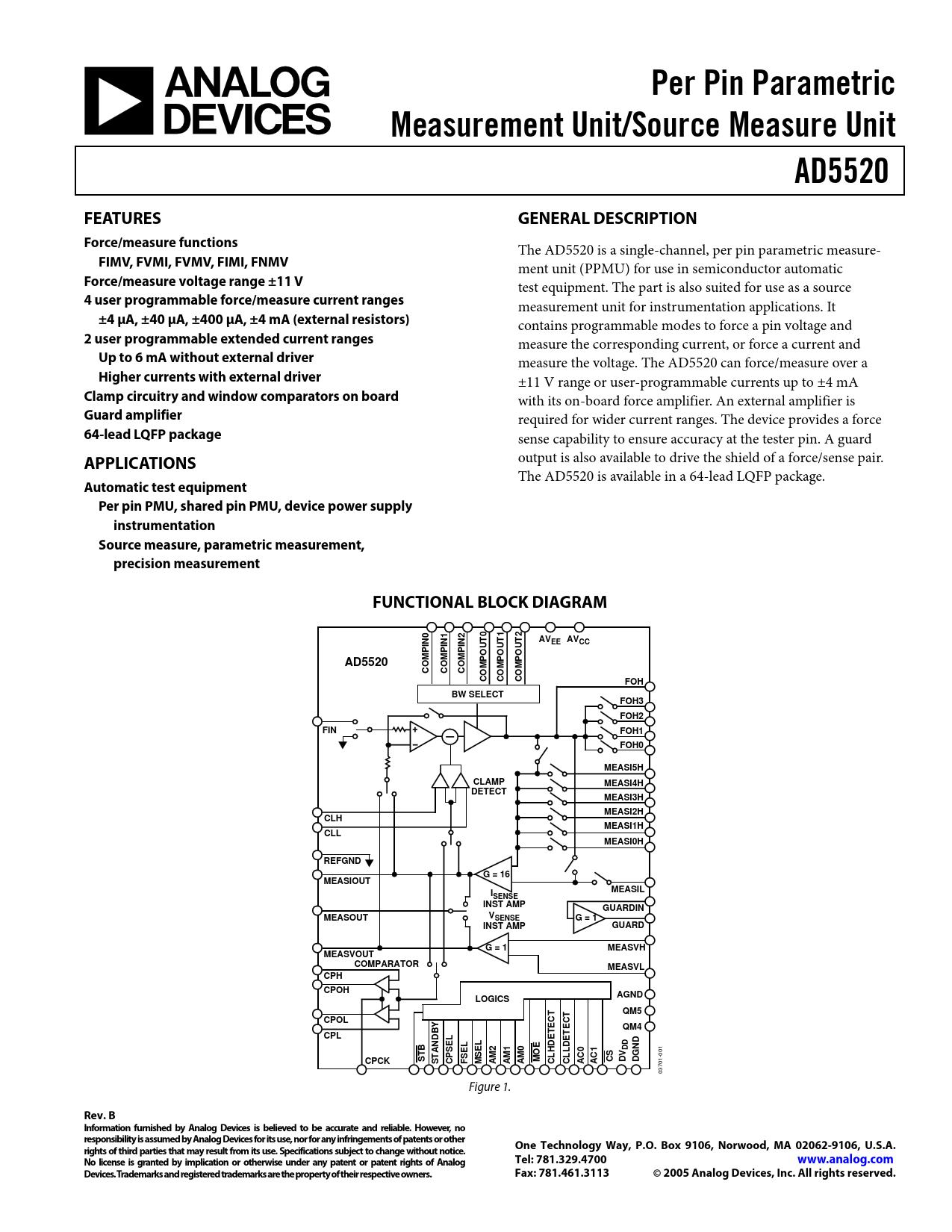

03701-001 Figure 1.
