Data Sheet. ADP5138. ABSOLUTE MAXIMUM RATINGS Table 4. THERMAL RESISTANCE. Parameter. Rating. Table 5. Thermal Resistance
Model Line for this Datasheet
Text Version of Document

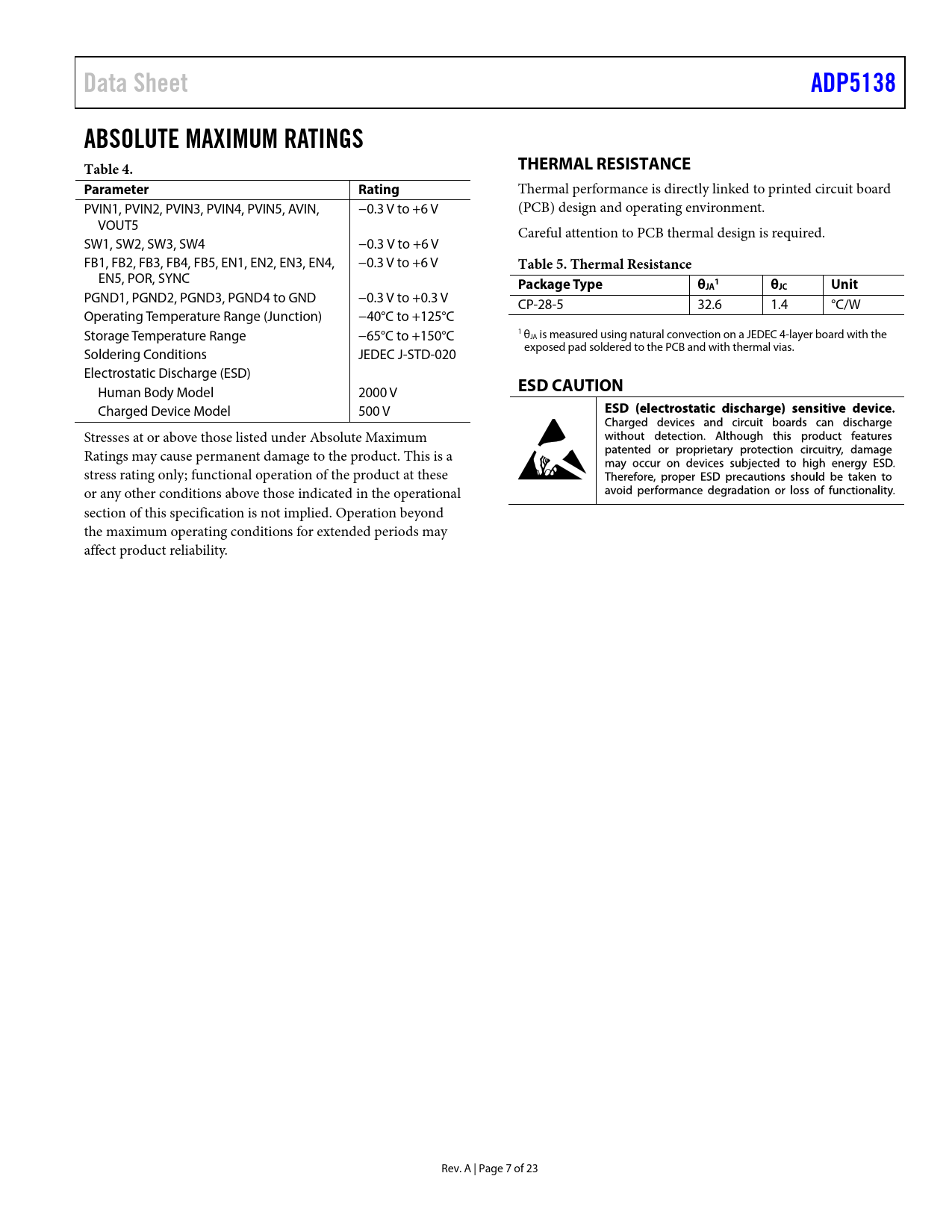

Data Sheet ADP5138 ABSOLUTE MAXIMUM RATINGS Table 4. THERMAL RESISTANCE Parameter Rating
Thermal performance is directly linked to printed circuit board PVIN1, PVIN2, PVIN3, PVIN4, PVIN5, AVIN, −0.3 V to +6 V (PCB) design and operating environment. VOUT5 Careful attention to PCB thermal design is required. SW1, SW2, SW3, SW4 −0.3 V to +6 V FB1, FB2, FB3, FB4, FB5, EN1, EN2, EN3, EN4, −0.3 V to +6 V
Table 5. Thermal Resistance
EN5, POR, SYNC
Package Type θ 1 JA θJC Unit
PGND1, PGND2, PGND3, PGND4 to GND −0.3 V to +0.3 V CP-28-5 32.6 1.4 °C/W Operating Temperature Range (Junction) −40°C to +125°C Storage Temperature Range −65°C to +150°C 1 θJA is measured using natural convection on a JEDEC 4-layer board with the Soldering Conditions JEDEC J-STD-020 exposed pad soldered to the PCB and with thermal vias. Electrostatic Discharge (ESD) Human Body Model 2000 V
