Datasheet STD30NF06LAG (STMicroelectronics) - 8
| Manufacturer | STMicroelectronics |
| Description | Automotive-grade N-channel 60 V, 0.022 Ω typ., 35 A STripFET II Power MOSFET in a DPAK package |
| Pages / Page | 15 / 8 — Test circuits. STD30NF06LAG. Figure 13: Test circuit for resistive load. … |
| File Format / Size | PDF / 734 Kb |
| Document Language | English |
Test circuits. STD30NF06LAG. Figure 13: Test circuit for resistive load. Figure 14: Test circuit for gate charge
Model Line for this Datasheet
Text Version of Document

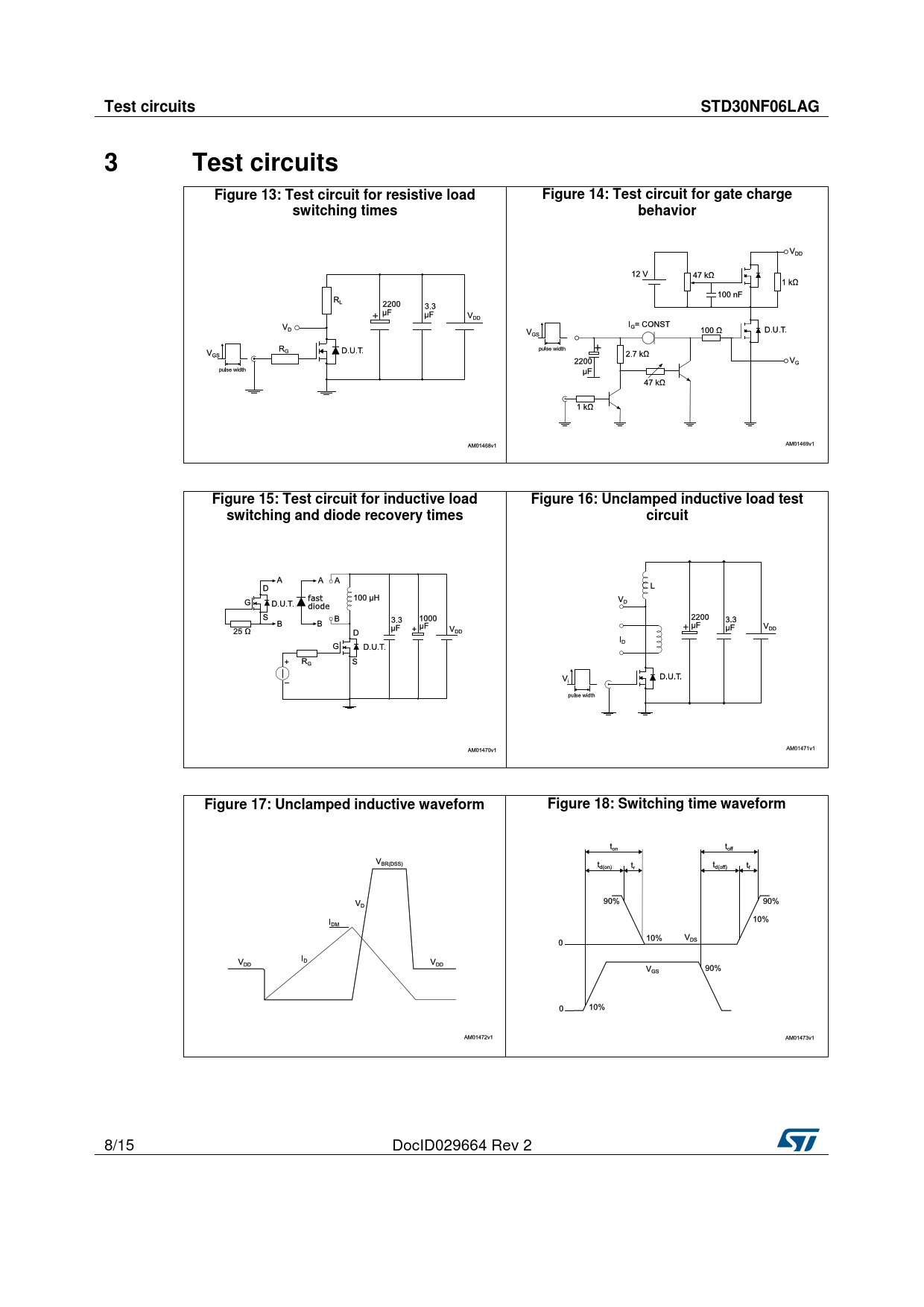

Test circuits STD30NF06LAG 3 Test circuits Figure 13: Test circuit for resistive load Figure 14: Test circuit for gate charge switching times behavior Figure 15: Test circuit for inductive load Figure 16: Unclamped inductive load test switching and diode recovery times circuit Figure 17: Unclamped inductive waveform Figure 18: Switching time waveform
