Datasheet STD30NF06 (STMicroelectronics) - 8
| Manufacturer | STMicroelectronics |
| Description | N-Channel 60V - 0.020 Ohm - 28A - DPAK StripFET(TM) II POWER MOSFET |
| Pages / Page | 10 / 8 — STD30NF06. TO-252 (DPAK) MECHANICAL DATA. inch. DIM. MIN. TYP. MAX. … |
| File Format / Size | PDF / 472 Kb |
| Document Language | English |

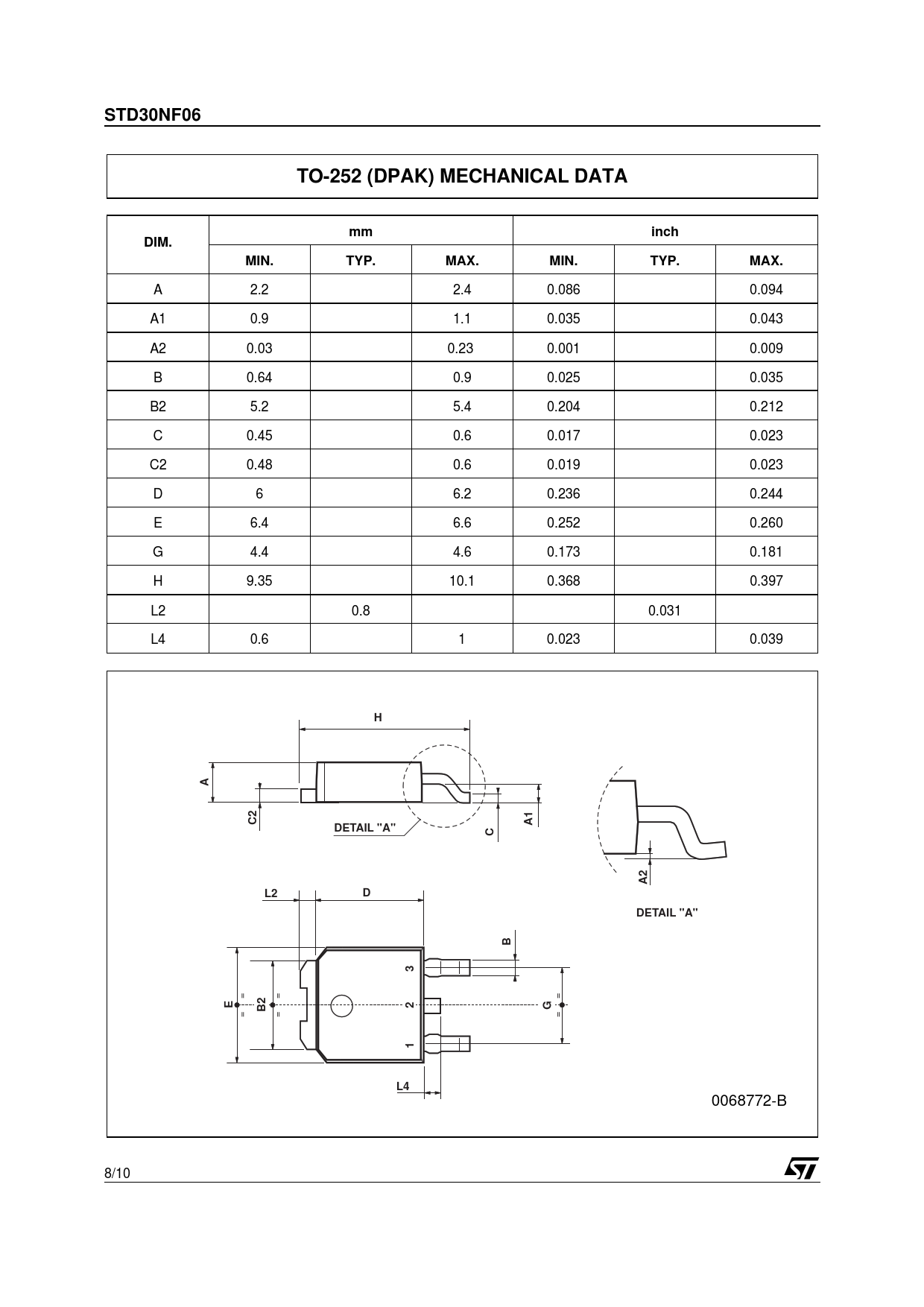

STD30NF06. TO-252 (DPAK) MECHANICAL DATA. inch. DIM. MIN. TYP. MAX. DETAIL "A". 1 3
Model Line for this Datasheet
Text Version of Document
STD30NF06 TO-252 (DPAK) MECHANICAL DATA mm inch DIM. MIN. TYP. MAX. MIN. TYP. MAX.
A 2.2 2.4 0.086 0.094 A1 0.9 1.1 0.035 0.043 A2 0.03 0.23 0.001 0.009 B 0.64 0.9 0.025 0.035 B2 5.2 5.4 0.204 0.212 C 0.45 0.6 0.017 0.023 C2 0.48 0.6 0.019 0.023 D 6 6.2 0.236 0.244 E 6.4 6.6 0.252 0.260 G 4.4 4.6 0.173 0.181 H 9.35 10.1 0.368 0.397 L2 0.8 0.031 L4 0.6 1 0.023 0.039
H A C2 A1 DETAIL "A" C A2 L2 D DETAIL "A" B E B2 2 G
== == ==
1 3 L4
0068772-B 8/10
A 2.2 2.4 0.086 0.094 A1 0.9 1.1 0.035 0.043 A2 0.03 0.23 0.001 0.009 B 0.64 0.9 0.025 0.035 B2 5.2 5.4 0.204 0.212 C 0.45 0.6 0.017 0.023 C2 0.48 0.6 0.019 0.023 D 6 6.2 0.236 0.244 E 6.4 6.6 0.252 0.260 G 4.4 4.6 0.173 0.181 H 9.35 10.1 0.368 0.397 L2 0.8 0.031 L4 0.6 1 0.023 0.039
H A C2 A1 DETAIL "A" C A2 L2 D DETAIL "A" B E B2 2 G
== == ==
1 3 L4
0068772-B 8/10
