Datasheet ISOSD61 (STMicroelectronics) - 4
| Manufacturer | STMicroelectronics |
| Description | 16-bit isolated Sigma-Delta modulator, single-ended and LVDS interfaces |
| Pages / Page | 23 / 4 — ISOSD61. Pin description. Table 1. Pin description. Pin No. Pin name. Pin … |
| File Format / Size | PDF / 557 Kb |
| Document Language | English |
ISOSD61. Pin description. Table 1. Pin description. Pin No. Pin name. Pin description (ISOSD61L). Pin description (ISOSD61). DS13605
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 4

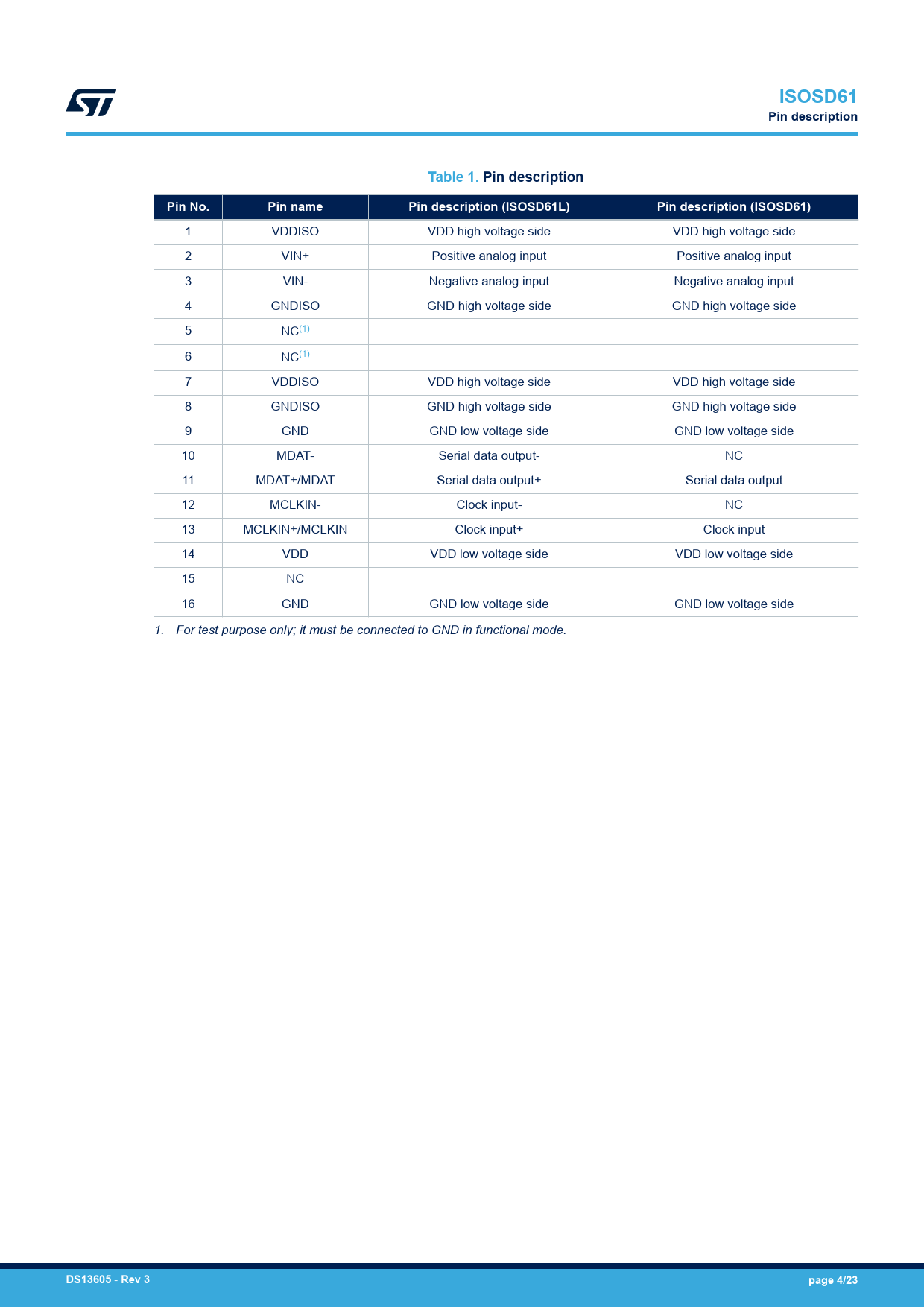

ISOSD61 Pin description Table 1. Pin description Pin No. Pin name Pin description (ISOSD61L) Pin description (ISOSD61)
1 VDDISO VDD high voltage side VDD high voltage side 2 VIN+ Positive analog input Positive analog input 3 VIN- Negative analog input Negative analog input 4 GNDISO GND high voltage side GND high voltage side 5 NC(1) 6 NC(1) 7 VDDISO VDD high voltage side VDD high voltage side 8 GNDISO GND high voltage side GND high voltage side 9 GND GND low voltage side GND low voltage side 10 MDAT- Serial data output- NC 11 MDAT+/MDAT Serial data output+ Serial data output 12 MCLKIN- Clock input- NC 13 MCLKIN+/MCLKIN Clock input+ Clock input 14 VDD VDD low voltage side VDD low voltage side 15 NC 16 GND GND low voltage side GND low voltage side 1. For test purpose only; it must be connected to GND in functional mode.
DS13605
-
Rev 3 page 4/23
Document Outline Cover image Product status link / summary Features Application Description 1 Device overview 2 Pin description 3 Device specifications 4 Terminology 5 Theory of operation 6 Package description 7 Ordering information Revision history Contents List of tables List of figures
ISOSD61 Pin description Table 1. Pin description Pin No. Pin name Pin description (ISOSD61L) Pin description (ISOSD61)
1 VDDISO VDD high voltage side VDD high voltage side 2 VIN+ Positive analog input Positive analog input 3 VIN- Negative analog input Negative analog input 4 GNDISO GND high voltage side GND high voltage side 5 NC(1) 6 NC(1) 7 VDDISO VDD high voltage side VDD high voltage side 8 GNDISO GND high voltage side GND high voltage side 9 GND GND low voltage side GND low voltage side 10 MDAT- Serial data output- NC 11 MDAT+/MDAT Serial data output+ Serial data output 12 MCLKIN- Clock input- NC 13 MCLKIN+/MCLKIN Clock input+ Clock input 14 VDD VDD low voltage side VDD low voltage side 15 NC 16 GND GND low voltage side GND low voltage side 1. For test purpose only; it must be connected to GND in functional mode.
