Datasheet ISOSD61 (STMicroelectronics) - 7
| Manufacturer | STMicroelectronics |
| Description | 16-bit isolated Sigma-Delta modulator, single-ended and LVDS interfaces |
| Pages / Page | 23 / 7 — ISOSD61. Device specifications. Parameter. Symbol. Min. Typ. Max. Units. … |
| File Format / Size | PDF / 557 Kb |
| Document Language | English |
ISOSD61. Device specifications. Parameter. Symbol. Min. Typ. Max. Units. Test conditions. POWER SUPPLY. Table 8. Timing specifications. Symbo
Model Line for this Datasheet
Text Version of Document
ISOSD61 Device specifications Parameter Symbol Min. Typ. Max. Units Test conditions
Signal-to-noise ratio SNR 86 dB Signal-to-(noise + distortion) ratio SNDR 80 dB Effective number of bits ENOB 13 bits Spurious free dynamic Range SFDR 83 dB Total harmonic distortion THD -83 dB Transient Pulse repetition frequency Common-mode transient immunity CMTI 25 30 kV/µs up to 100 KHz
POWER SUPPLY
35 mA @ 25 MHz VDDISO supply current IDDISO 30 mA @ 10 MHz VDD = 5 V, 13 mA fMCLKIN = 25 MHz VDD = 5 V, 11 mA fMCLKIN = 10 MHz VDD supply current IDD VDD = 3.3 V, 12.5 mA fMCLKIN = 25 MHz VDD = 3.3 V, 10.5 mA fMCLKIN = 10 MHz 1. Guaranteed by characterization
Table 8. Timing specifications Symbo Parameter Min. Typ. Max. Units Test conditions l
Modulator clock input frequency fCK 5 25 MHz Clock duty cycle 48% to 52% Data delay after rising edge of CK tD 5 20 ns CL = 15 pF

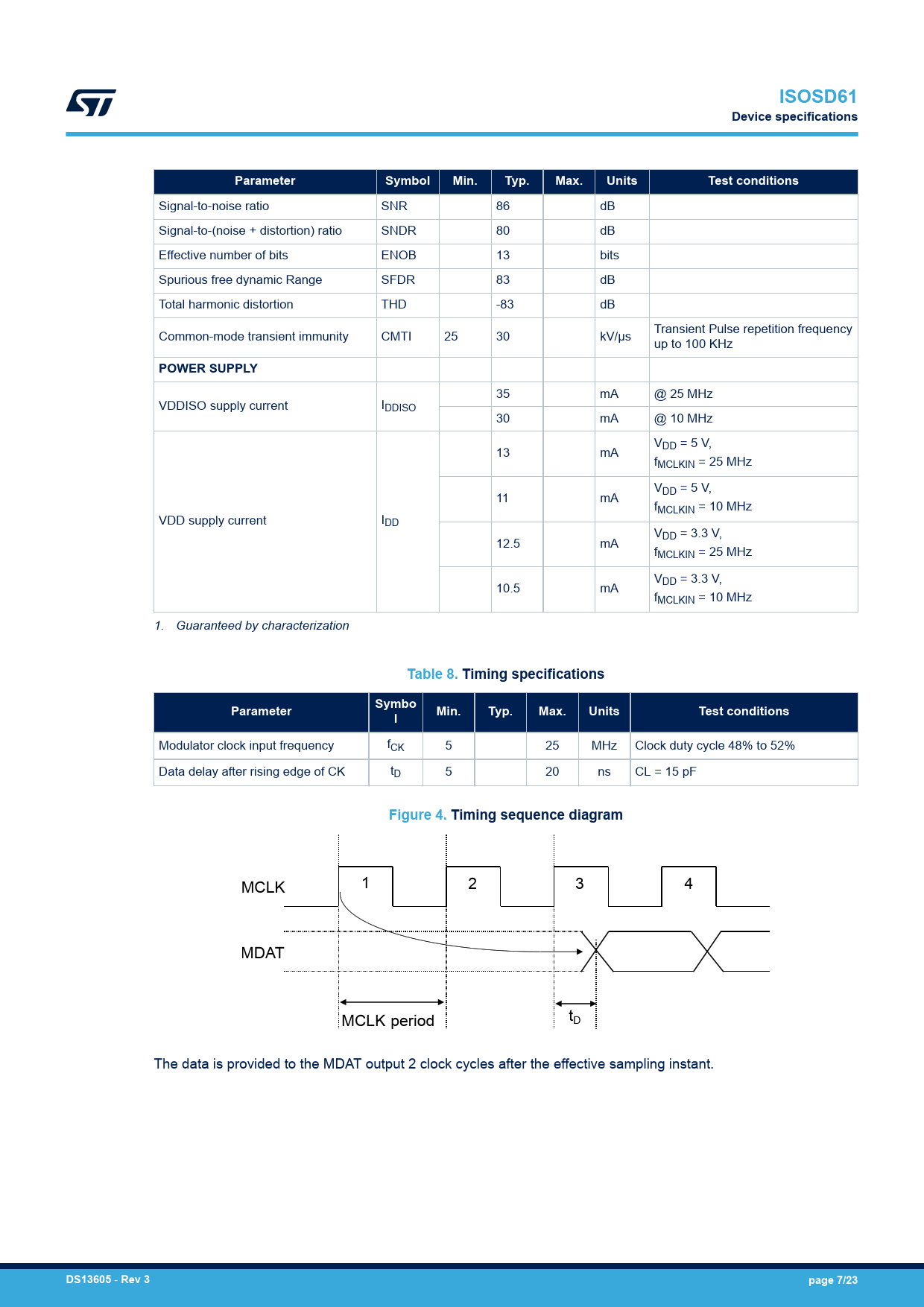

Figure 4. Timing sequence diagram
MCLK 1 2 3 4 MDAT t MCLK period D The data is provided to the MDAT output 2 clock cycles after the effective sampling instant.
DS13605
-
Rev 3 page 7/23
