Datasheet 74HC4060, 74HCT4060 (NXP) - 5
| Manufacturer | NXP |
| Description | 14-stage binary ripple counter with oscillator |
| Pages / Page | 20 / 5 — Nexperia. 74HC4060; 74HCT4060. 14-stage binary ripple counter with … |
| File Format / Size | PDF / 324 Kb |
| Document Language | English |
Nexperia. 74HC4060; 74HCT4060. 14-stage binary ripple counter with oscillator
Model Line for this Datasheet
74HC4060
Text Version of Document

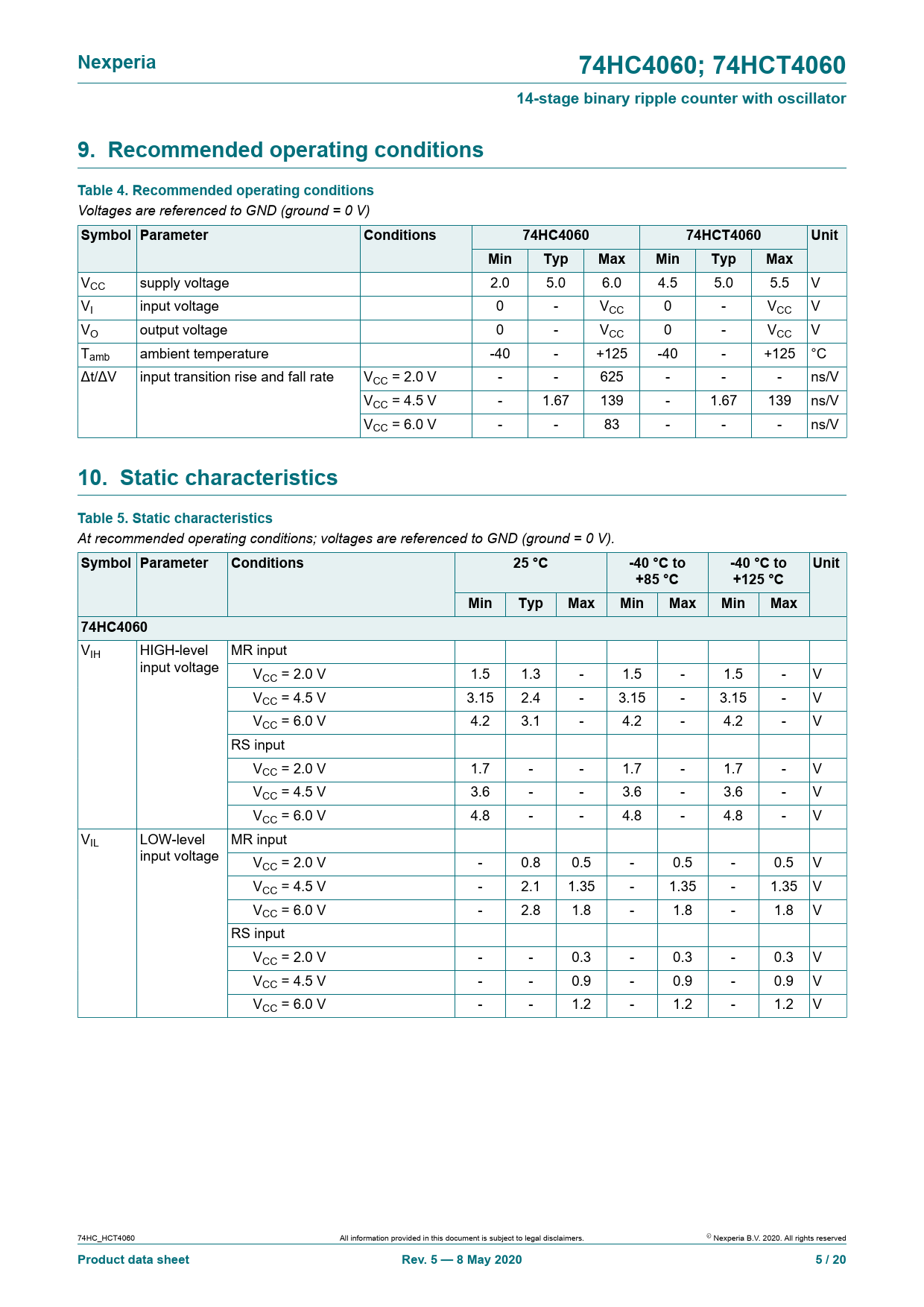

Nexperia 74HC4060; 74HCT4060 14-stage binary ripple counter with oscillator 9. Recommended operating conditions Table 4. Recommended operating conditions
Voltages are referenced to GND (ground = 0 V)
Symbol Parameter Conditions 74HC4060 74HCT4060 Unit Min Typ Max Min Typ Max
VCC supply voltage 2.0 5.0 6.0 4.5 5.0 5.5 V VI input voltage 0 - VCC 0 - VCC V VO output voltage 0 - VCC 0 - VCC V Tamb ambient temperature -40 - +125 -40 - +125 °C Δt/ΔV input transition rise and fall rate VCC = 2.0 V - - 625 - - - ns/V VCC = 4.5 V - 1.67 139 - 1.67 139 ns/V VCC = 6.0 V - - 83 - - - ns/V
10. Static characteristics Table 5. Static characteristics
At recommended operating conditions; voltages are referenced to GND (ground = 0 V).
Symbol Parameter Conditions 25 °C -40 °C to -40 °C to Unit +85 °C +125 °C Min Typ Max Min Max Min Max 74HC4060
VIH HIGH-level MR input input voltage VCC = 2.0 V 1.5 1.3 - 1.5 - 1.5 - V VCC = 4.5 V 3.15 2.4 - 3.15 - 3.15 - V VCC = 6.0 V 4.2 3.1 - 4.2 - 4.2 - V RS input VCC = 2.0 V 1.7 - - 1.7 - 1.7 - V VCC = 4.5 V 3.6 - - 3.6 - 3.6 - V VCC = 6.0 V 4.8 - - 4.8 - 4.8 - V VIL LOW-level MR input input voltage VCC = 2.0 V - 0.8 0.5 - 0.5 - 0.5 V VCC = 4.5 V - 2.1 1.35 - 1.35 - 1.35 V VCC = 6.0 V - 2.8 1.8 - 1.8 - 1.8 V RS input VCC = 2.0 V - - 0.3 - 0.3 - 0.3 V VCC = 4.5 V - - 0.9 - 0.9 - 0.9 V VCC = 6.0 V - - 1.2 - 1.2 - 1.2 V 74HC_HCT4060 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet Rev. 5 — 8 May 2020 5 / 20
