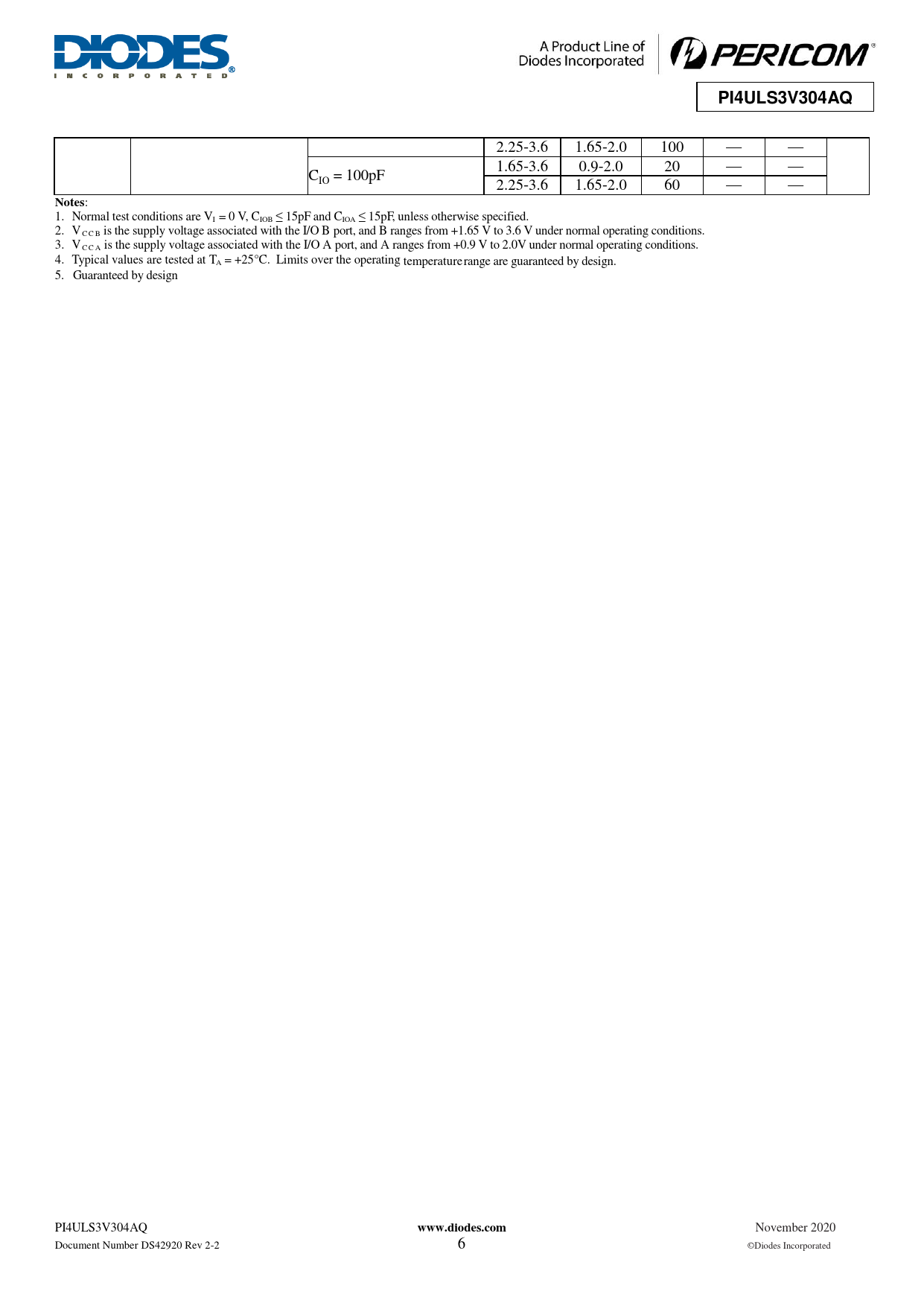

PI4ULS3V304AQ. Notes. www.diodes.com
Model Line for this Datasheet
Text Version of Document
PI4ULS3V304AQ
2.25-3.6 1.65-2.0 100 — — 1.65-3.6 0.9-2.0 20 — — CIO = 100pF 2.25-3.6 1.65-2.0 60 — —
Notes
: 1. Normal test conditions are VI = 0 V, CIOB ≤ 15pF and CIOA ≤ 15pF, unless otherwise specified. 2. V C C B is the supply voltage associated with the I/O B port, and B ranges from +1.65 V to 3.6 V under normal operating conditions. 3. V C C A is the supply voltage associated with the I/O A port, and A ranges from +0.9 V to 2.0V under normal operating conditions. 4. Typical values are tested at TA = +25°C. Limits over the operating temperature range are guaranteed by design. 5. Guaranteed by design PI4ULS3V304AQ
www.diodes.com
November 2020 Document Number DS42920 Rev 2-2 6 © Diodes Incorporated
