Datasheet HPR-1100BGH (Excelitas) - 4
| Manufacturer | Excelitas |
| Description | Hybrid PIN Receiver Module |
| Pages / Page | 7 / 4 — HPR Series – HPR-1100BGH. Hybrid PIN Receiver Module. Figure 1: Typical … |
| File Format / Size | PDF / 465 Kb |
| Document Language | English |
HPR Series – HPR-1100BGH. Hybrid PIN Receiver Module. Figure 1: Typical Photodiode Unity Responsivity
Model Line for this Datasheet
Text Version of Document

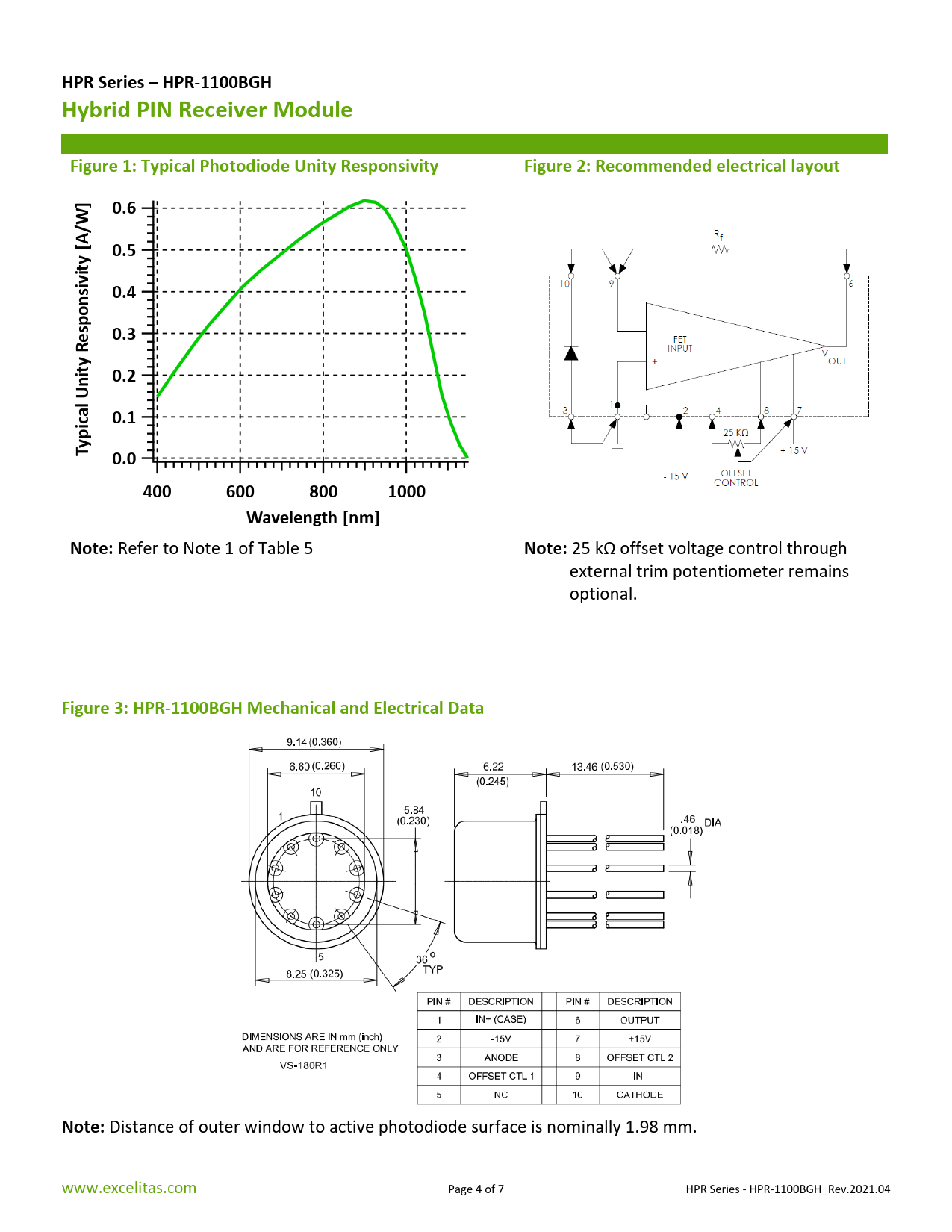

HPR Series – HPR-1100BGH Hybrid PIN Receiver Module Figure 1: Typical Photodiode Unity Responsivity Figure 2: Recommended electrical layout Note:
Refer to Note 1 of Table 5
Note:
25 kΩ offset voltage control through external trim potentiometer remains optional.
Figure 3: HPR-1100BGH Mechanical and Electrical Data Note:
Distance of outer window to active photodiode surface is nominally 1.98 mm. www.excelitas.com Page 4 of 7 HPR Series - HPR-1100BGH_Rev.2021.04
