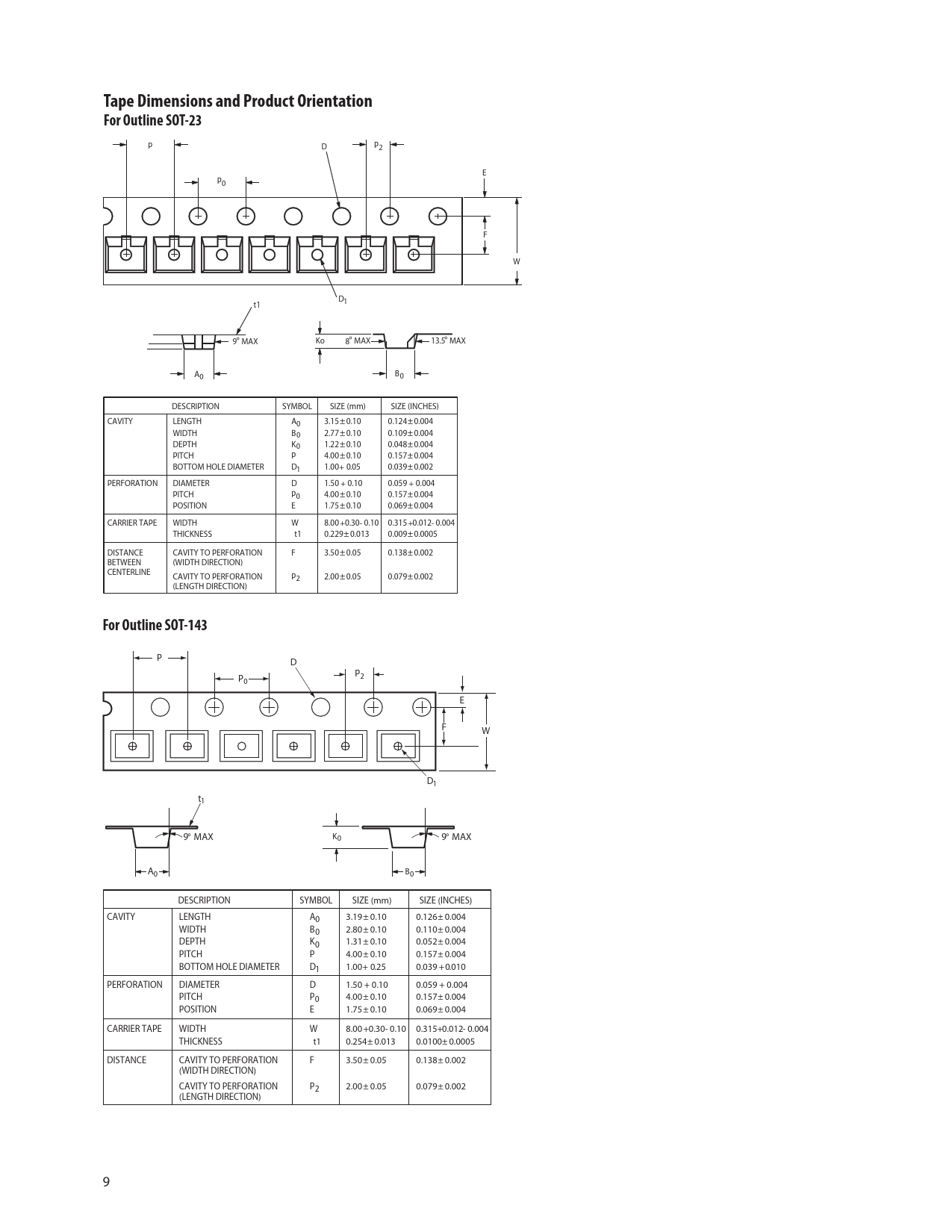

Tape Dimensions and Product Orientation For Outline SOT-23
P D P2 E P0 F W D1 t1 9° MAX Ko 8° MAX 13.5° MAX A B 0 0 DESCRIPTION SYMBOL SIZE (mm) SIZE (INCHES) CAVITY LENGTH A0 3.15 ± 0.10 0.124 ± 0.004 WIDTH B0 2.77 ± 0.10 0.109 ± 0.004 DEPTH K0 1.22 ± 0.10 0.048 ± 0.004 PITCH P 4.00 ± 0.10 0.157 ± 0.004 BOTTOM HOLE DIAMETER D1 1.00 + 0.05 0.039 ± 0.002 PERFORATION DIAMETER D 1.50 + 0.10 0.059 + 0.004 PITCH P0 4.00 ± 0.10 0.157 ± 0.004 POSITION E 1.75 ± 0.10 0.069 ± 0.004 CARRIER TAPE WIDTH W 8.00 + 0.30 - 0.10 0.315 + 0.012 - 0.004 THICKNESS t1 0.229 ± 0.013 0.009 ± 0.0005 DISTANCE CAVITY TO PERFORATION F 3.50 ± 0.05 0.138 ± 0.002 BETWEEN (WIDTH DIRECTION) CENTERLINE CAVITY TO PERFORATION P2 2.00 ± 0.05 0.079 ± 0.002 (LENGTH DIRECTION)
For Outline SOT-143
P D P2 P0 E F W D1 t1 9° MAX K0 9° MAX A0 B0 DESCRIPTION SYMBOL SIZE (mm) SIZE (INCHES) CAVITY LENGTH A0 3.19 ± 0.10 0.126 ± 0.004 WIDTH B0 2.80 ± 0.10 0.110 ± 0.004 DEPTH K0 1.31 ± 0.10 0.052 ± 0.004 PITCH P 4.00 ± 0.10 0.157 ± 0.004 BOTTOM HOLE DIAMETER D1 1.00 + 0.25 0.039 + 0.010 PERFORATION DIAMETER D 1.50 + 0.10 0.059 + 0.004 PITCH P0 4.00 ± 0.10 0.157 ± 0.004 POSITION E 1.75 ± 0.10 0.069 ± 0.004 CARRIER TAPE WIDTH W 8.00 + 0.30 - 0.10 0.315+ 0.012 - 0.004 THICKNESS t1 0.254 ± 0.013 0.0100 ± 0.0005 DISTANCE CAVITY TO PERFORATION F 3.50 ± 0.05 0.138 ± 0.002 (WIDTH DIRECTION) CAVITY TO PERFORATION P2 2.00 ± 0.05 0.079 ± 0.002 (LENGTH DIRECTION) 9
