Datasheet AOZ8S303BLS-24 (Alpha & Omega)
| Manufacturer | Alpha & Omega |
| Description | Single Channel Bidirectional TVS Diode |
| Pages / Page | 6 / 1 — AOZ8S303BLS-24. Single Channel Bidirectional TVS Diode. General … |
| File Format / Size | PDF / 956 Kb |
| Document Language | English |

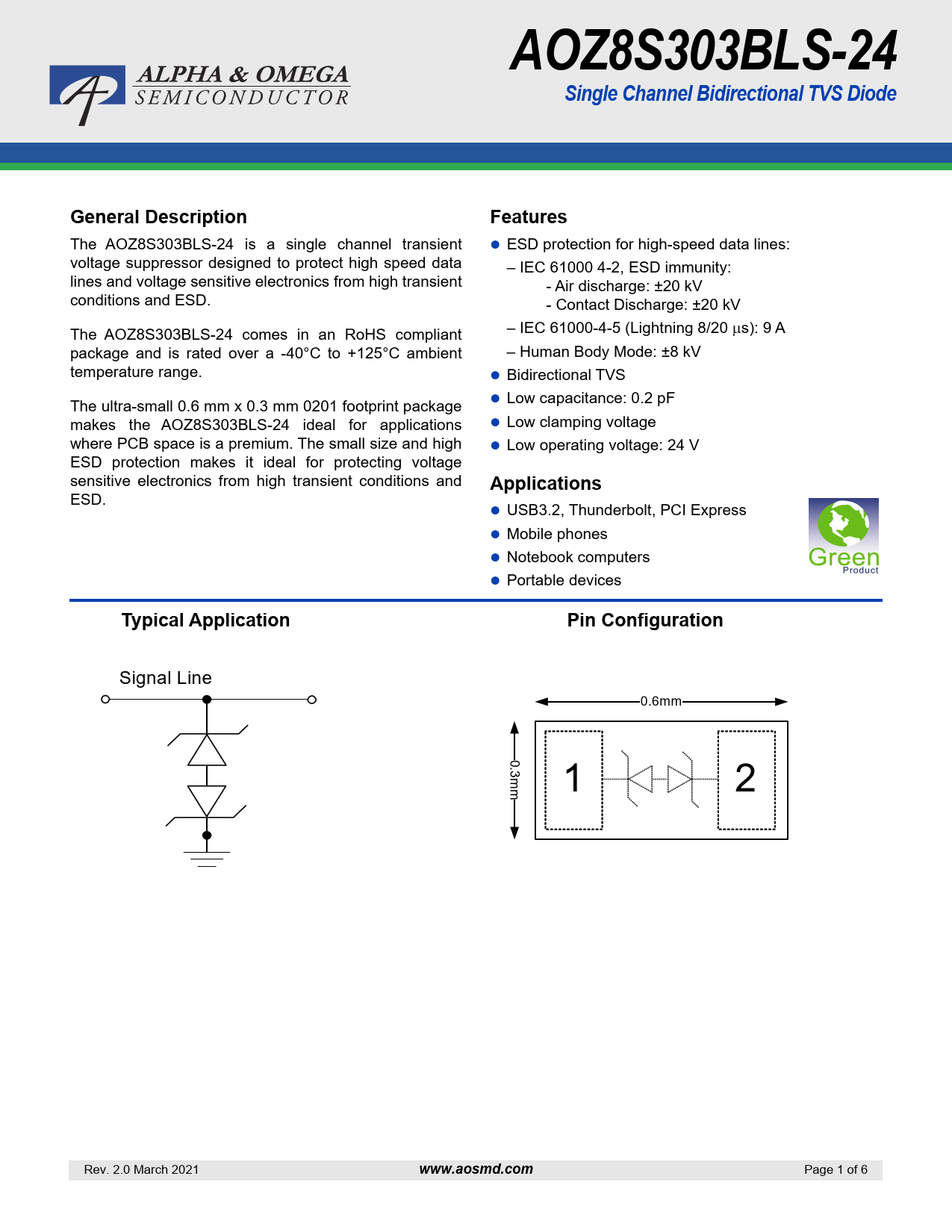

AOZ8S303BLS-24. Single Channel Bidirectional TVS Diode. General Description. Features. Applications. Typical Application
Model Line for this Datasheet
Text Version of Document
AOZ8S303BLS-24 Single Channel Bidirectional TVS Diode General Description Features
The AOZ8S303BLS-24 is a single channel transient ESD protection for high-speed data lines: voltage suppressor designed to protect high speed data – IEC 61000 4-2, ESD immunity: lines and voltage sensitive electronics from high transient - Air discharge: ±20 kV conditions and ESD. - Contact Discharge: ±20 kV The AOZ8S303BLS-24 comes in an RoHS compliant – IEC 61000-4-5 (Lightning 8/20 s): 9 A package and is rated over a -40°C to +125°C ambient – Human Body Mode: ±8 kV temperature range. Bidirectional TVS The ultra-small 0.6 mm x 0.3 mm 0201 footprint package Low capacitance: 0.2 pF makes the AOZ8S303BLS-24 ideal for applications Low clamping voltage where PCB space is a premium. The small size and high Low operating voltage: 24 V ESD protection makes it ideal for protecting voltage sensitive electronics from high transient conditions and
Applications
ESD. USB3.2, Thunderbolt, PCI Express Mobile phones Notebook computers Portable devices
Typical Application Pin Configuration
Signal Line 0.6mm 0.3m m 1 2 Rev. 2.0 March 2021
www.aosmd.com
Page 1 of 6
