DEIC420. Typical Output Waveforms
Model Line for this Datasheet
Text Version of Document
DEIC420
Fig. 10 Propagation Delay vs. Supply Voltage C =4nF V =5V@100kHz L IN 50 40 tONDLY elay (ns) 30 tOFFDLY ation D 20 ropag P 10 08 10 12 14 16 18 Supply Voltage (V)
Typical Output Waveforms

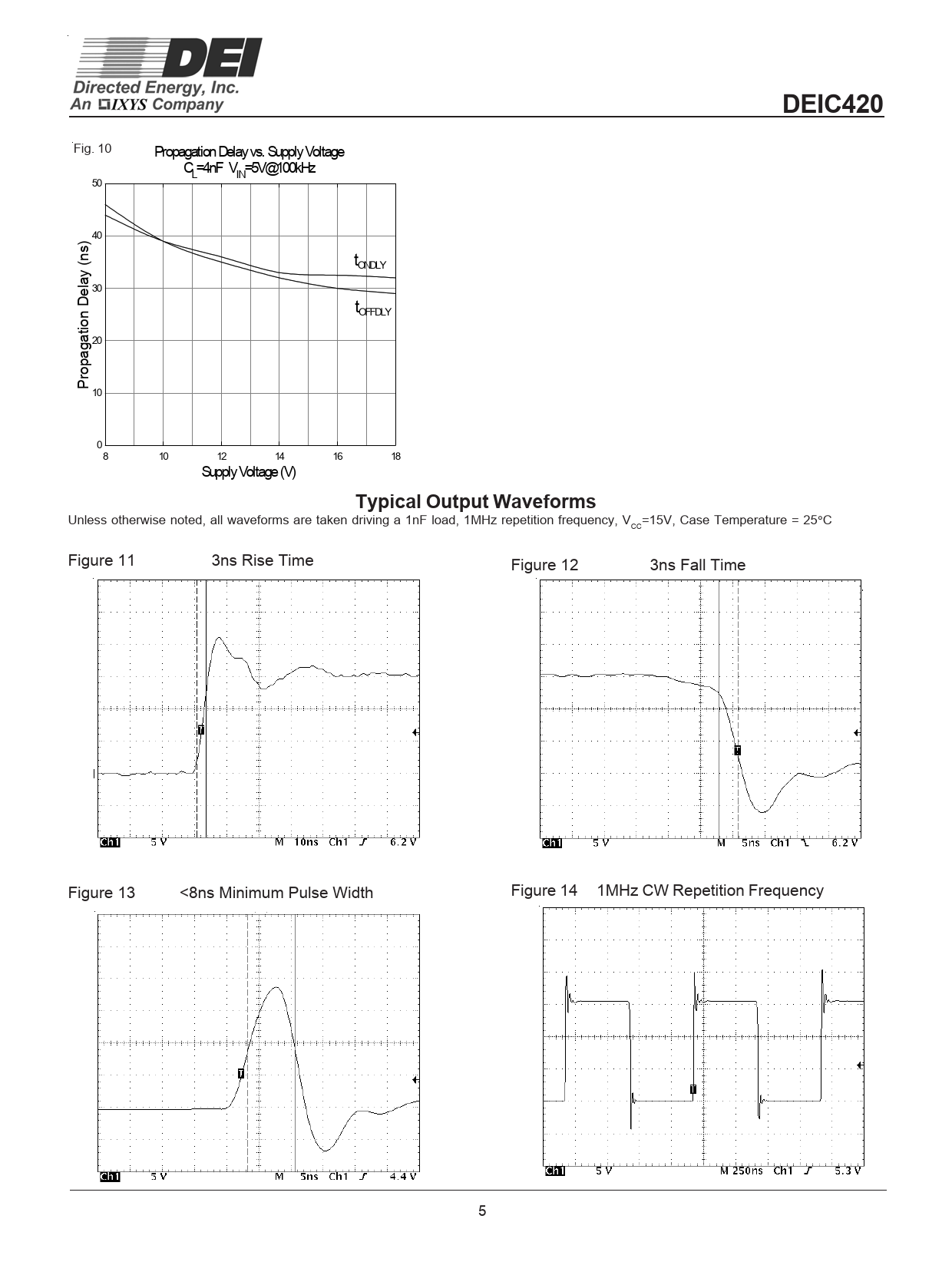

Unless otherwise noted, all waveforms are taken driving a 1nF load, 1MHz repetition frequency, V =15V, Case Temperature = 25°C CC Figure 11 3ns Rise Time Figure 12 3ns Fall Time Figure 13 <8ns Minimum Pulse Width Figure 14 1MHz CW Repetition Frequency 5
