Datasheet TIP120, TIP121, TIP122 (NPN); TIP125, TIP126, TIP127 (PNP) (ON Semiconductor) - 7
| Manufacturer | ON Semiconductor |
| Description | Plastic Medium-Power Complementary Silicon Transistors |
| Pages / Page | 8 / 7 — PACKAGE DIMENSIONS. TO−220. SCALE 1:1. DOCUMENT NUMBER: 98ASB42148B. … |
| Revision | 9 |
| File Format / Size | PDF / 296 Kb |
| Document Language | English |
PACKAGE DIMENSIONS. TO−220. SCALE 1:1. DOCUMENT NUMBER: 98ASB42148B. DESCRIPTION:. PAGE 1 OF 1
Model Line for this Datasheet
Text Version of Document
MECHANICAL CASE OUTLINE

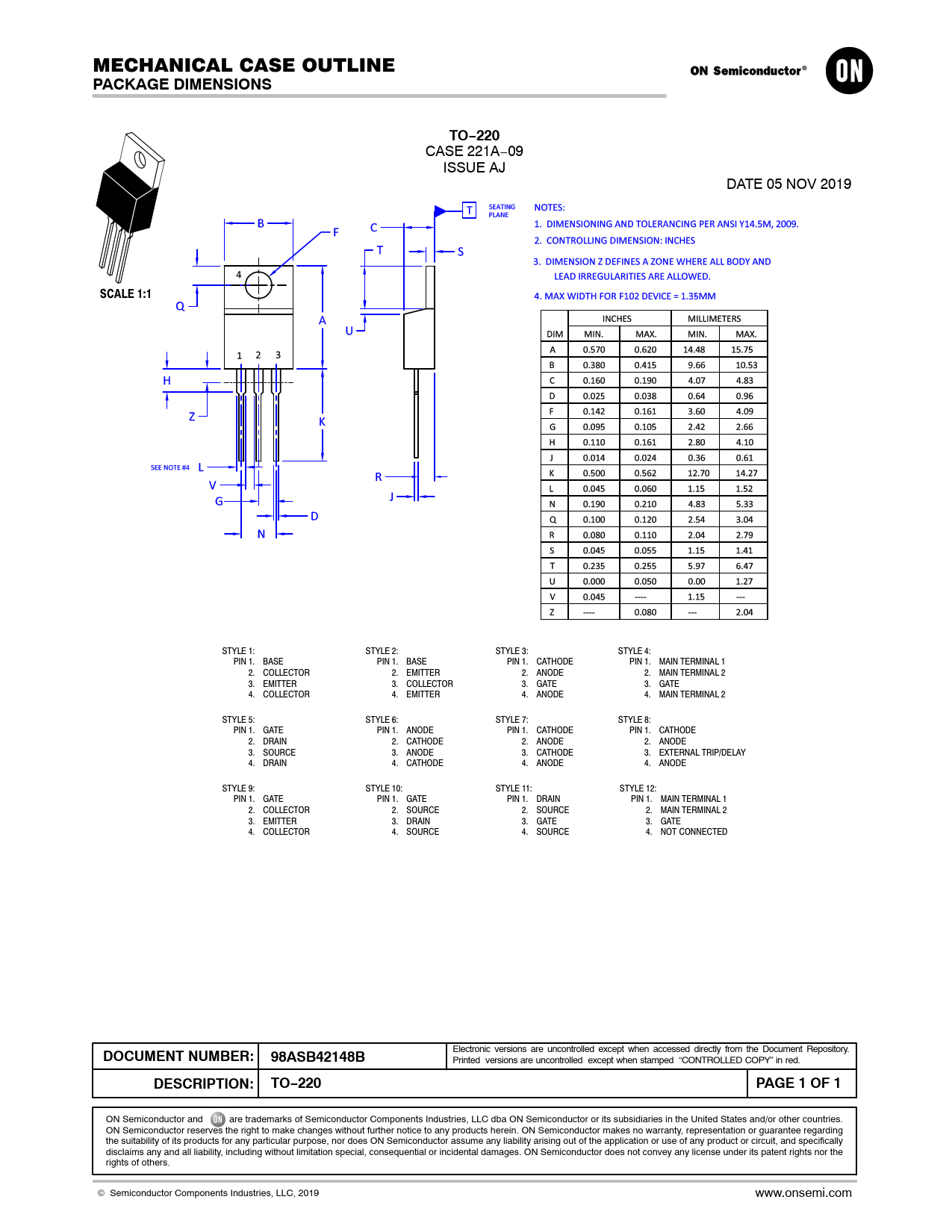

PACKAGE DIMENSIONS TO−220
CASE 221A−09 ISSUE AJ DATE 05 NOV 2019
SCALE 1:1
STYLE 1: STYLE 2: STYLE 3: STYLE 4: PIN 1. BASE PIN 1. BASE PIN 1. CATHODE PIN 1. MAIN TERMINAL 1 2. COLLECTOR 2. EMITTER 2. ANODE 2. MAIN TERMINAL 2 3. EMITTER 3. COLLECTOR 3. GATE 3. GATE 4. COLLECTOR 4. EMITTER 4. ANODE 4. MAIN TERMINAL 2 STYLE 5: STYLE 6: STYLE 7: STYLE 8: PIN 1. GATE PIN 1. ANODE PIN 1. CATHODE PIN 1. CATHODE 2. DRAIN 2. CATHODE 2. ANODE 2. ANODE 3. SOURCE 3. ANODE 3. CATHODE 3. EXTERNAL TRIP/DELAY 4. DRAIN 4. CATHODE 4. ANODE 4. ANODE STYLE 9: STYLE 10: STYLE 11: STYLE 12: PIN 1. GATE PIN 1. GATE PIN 1. DRAIN PIN 1. MAIN TERMINAL 1 2. COLLECTOR 2. SOURCE 2. SOURCE 2. MAIN TERMINAL 2 3. EMITTER 3. DRAIN 3. GATE 3. GATE 4. COLLECTOR 4. SOURCE 4. SOURCE 4. NOT CONNECTED
DOCUMENT NUMBER: 98ASB42148B
