Datasheet 2N3053 (TT Electronics) - 3
| Manufacturer | TT Electronics |
| Description | Medium Power Silicon NPN Transistor |
| Pages / Page | 3 / 3 — MEDIUM POWER SILICON. NPN TRANSISTOR. 2N3053. MECHANICAL DATA. Dimensions … |
| File Format / Size | PDF / 138 Kb |
| Document Language | English |

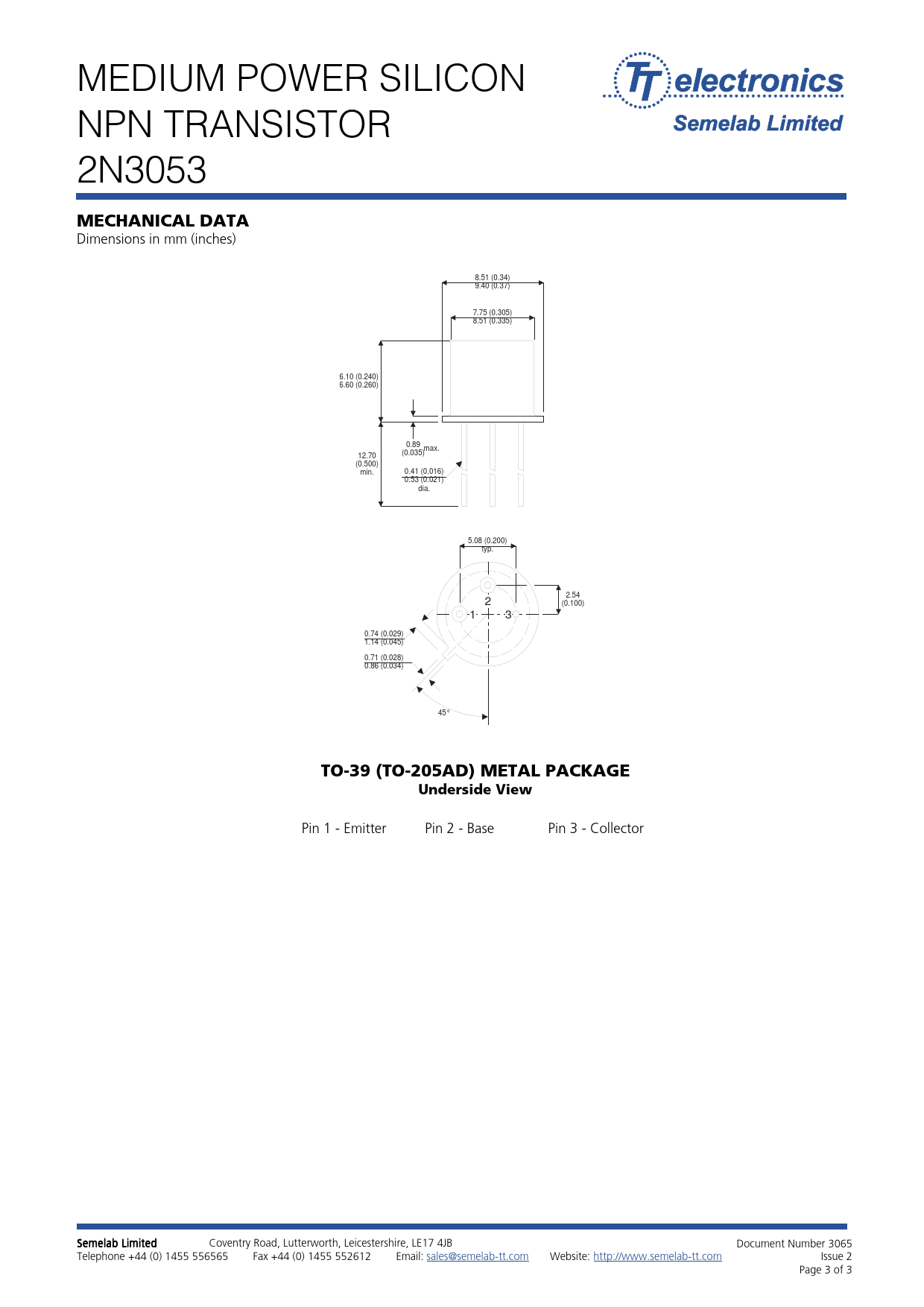

MEDIUM POWER SILICON. NPN TRANSISTOR. 2N3053. MECHANICAL DATA. Dimensions in mm (inches). 8.51 (0.34). 9.40 (0.37) 7.75 (0.305)
Model Line for this Datasheet
Text Version of Document
MEDIUM POWER SILICON
NPN TRANSISTOR
2N3053
MECHANICAL DATA
Dimensions in mm (inches)
8.51 (0.34)
9.40 (0.37) 7.75 (0.305)
8.51 (0.335) 6.10 (0.240)
6.60 (0.260) 12.70
(0.500)
min. 0.89
max.
(0.035)
0.41 (0.016)
0.53 (0.021)
dia. 5.08 (0.200)
typ. 2.54
(0.100) 2
1 3 0.74 (0.029)
1.14 (0.045)
0.71 (0.028)
0.86 (0.034) 45° TO-39 (TO-205AD) METAL PACKAGE
Underside View
Pin 1 -Emitter Pin 2 -Base Semelab Limited
