TigerSHARC. Embedded Processor. ADSP-TS101S. FEATURES. BENEFITS. 300 MHz, 3.3 ns instruction cycle rate
Model Line for this Datasheet
Text Version of Document
link to page 3 link to page 3
TigerSHARC Embedded Processor ADSP-TS101S FEATURES BENEFITS 300 MHz, 3.3 ns instruction cycle rate Provides high performance Static Superscalar DSP opera- 6M bits of internal—on-chip—SRAM memory tions, optimized for telecommunications infrastructure 19 mm × 19 mm (484-ball) CSP-BGA or 27 mm × 27 mm and other large, demanding multiprocessor DSP (625-ball) PBGA package applications Dual computation blocks—each containing an ALU, a multi- Performs exceptionally well on DSP algorithm and I/O bench- plier, a shifter, and a register file marks (see benchmarks in Table 1 and Table 2) Dual integer ALUs, providing data addressing and pointer Supports low overhead DMA transfers between internal manipulation memory, external memory, memory-mapped peripherals, Integrated I/O includes 14-channel DMA controller, external link ports, other DSPs (multiprocessor), and host port, 4 link ports, SDRAM controller, programmable flag processors pins, 2 timers, and timer expired pin for system integration Eases DSP programming through extremely flexible instruc- 1149.1 IEEE compliant JTAG test access port for on-chip tion set and high-level language-friendly DSP architecture emulation Enables scalable multiprocessing systems with low commu- On-chip arbitration for glueless multiprocessing with up to nications overhead 8 TigerSHARC processors on a bus COMPUTATIONAL BLOCKS PROGRAM SEQUENCER DATA ADDRESS GENERATION INTERNAL MEMORY 6 JTAG PORT PC BTB IRQ MEMORY MEMORY MEMORY SHIFTER INTEGER 32 32 INTEGER M0 M1 M2 J ALU K ALU 64K × 32 64K × 32 64K × 32 ADDR IAB 32 × 32 32 × 32 SDRAM CONTROLLER FETCH ALU A D A D A D MULTIPLIER EXTERNAL PORT 32 M0 ADDR X MULTIPROCESSOR M0 DATA REGISTER 128 INTERFACE FILE 32 32 × 32 HOST INTERFACE 32 ADDR M1 ADDR 128 128 INPUT FIFO 64 M1 DATA 128 DAB OUTPUT BUFFER DATA DAB 32 M2 ADDR OUTPUT FIFO 128 M2 DATA CNTRL 128 128 CLUSTER BUS I/O ADDRESS 32 ARBITER Y REGISTER I/O PROCESSOR 3 FILE 32 × 32 L0 8 DMA LINK PORT 3 CONTROLLER CONTROLLER MULTIPLIER L1 8 DMA ADDRESS LINK 32 256 256 LINK DATA 3 PORTS ALU DMA DATA L2 8 CONTROL/ CONTROL/ STATUS/ STATUS/ 3 SHIFTER TCBs BUFFERS L3 8

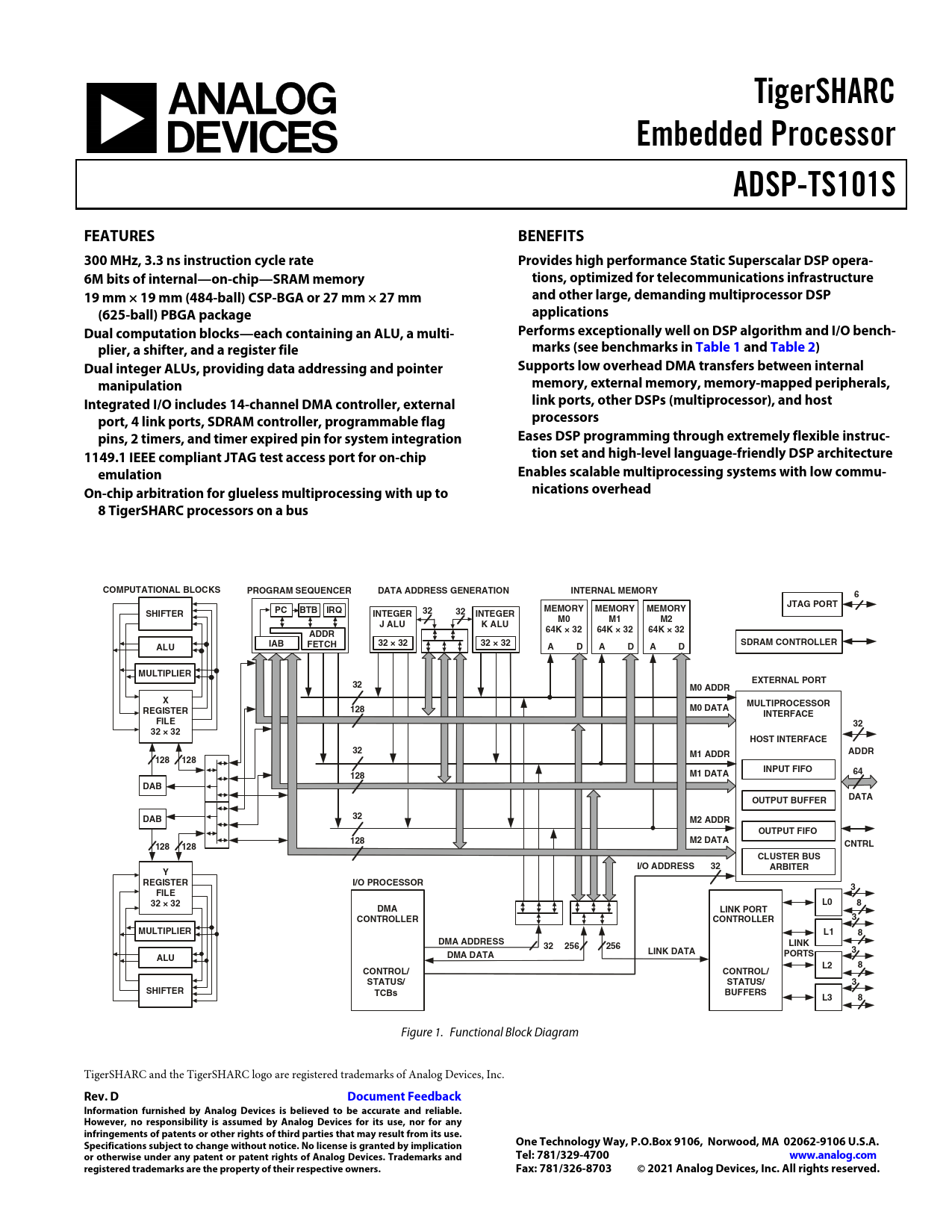

Figure 1. Functional Block Diagram TigerSHARC and the TigerSHARC logo are registered trademarks of Analog Devices, Inc.
