Datasheet MC10EL16, MC100EL16 (ON Semiconductor) - 7
| Manufacturer | ON Semiconductor |
| Description | 5.0 V ECL Differential Receiver |
| Pages / Page | 9 / 7 — SOIC−8 NB. DOCUMENT NUMBER: 98ASB42564B. DESCRIPTION:. PAGE 2 OF 2 |
| Revision | 10 |
| File Format / Size | PDF / 258 Kb |
| Document Language | English |
SOIC−8 NB. DOCUMENT NUMBER: 98ASB42564B. DESCRIPTION:. PAGE 2 OF 2
Model Line for this Datasheet
Text Version of Document
SOIC−8 NB

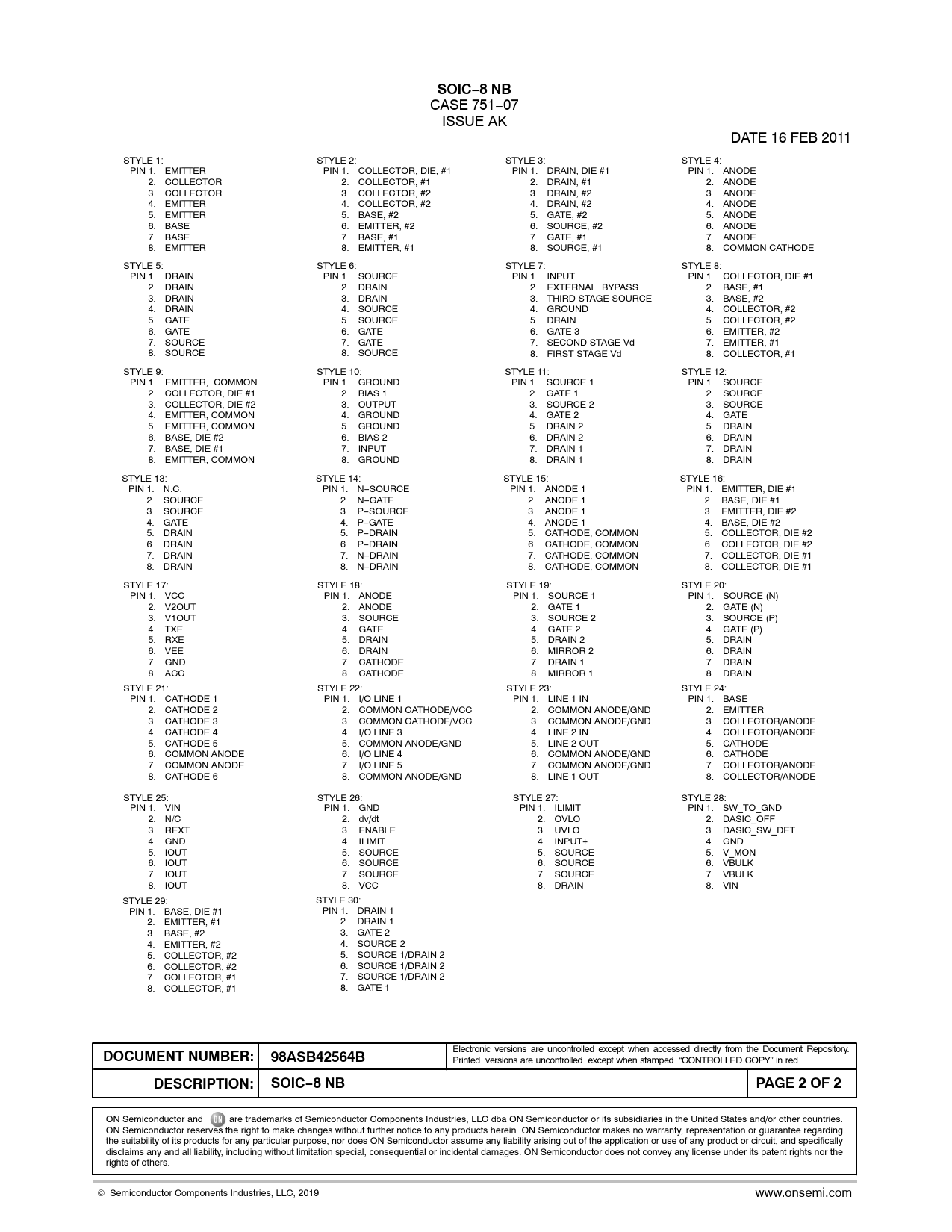

CASE 751−07 ISSUE AK DATE 16 FEB 2011 STYLE 1: STYLE 2: STYLE 3: STYLE 4: PIN 1. EMITTER PIN 1. COLLECTOR, DIE, #1 PIN 1. DRAIN, DIE #1 PIN 1. ANODE 2. COLLECTOR 2. COLLECTOR, #1 2. DRAIN, #1 2. ANODE 3. COLLECTOR 3. COLLECTOR, #2 3. DRAIN, #2 3. ANODE 4. EMITTER 4. COLLECTOR, #2 4. DRAIN, #2 4. ANODE 5. EMITTER 5. BASE, #2 5. GATE, #2 5. ANODE 6. BASE 6. EMITTER, #2 6. SOURCE, #2 6. ANODE 7. BASE 7. BASE, #1 7. GATE, #1 7. ANODE 8. EMITTER 8. EMITTER, #1 8. SOURCE, #1 8. COMMON CATHODE STYLE 5: STYLE 6: STYLE 7: STYLE 8: PIN 1. DRAIN PIN 1. SOURCE PIN 1. INPUT PIN 1. COLLECTOR, DIE #1 2. DRAIN 2. DRAIN 2. EXTERNAL BYPASS 2. BASE, #1 3. DRAIN 3. DRAIN 3. THIRD STAGE SOURCE 3. BASE, #2 4. DRAIN 4. SOURCE 4. GROUND 4. COLLECTOR, #2 5. GATE 5. SOURCE 5. DRAIN 5. COLLECTOR, #2 6. GATE 6. GATE 6. GATE 3 6. EMITTER, #2 7. SOURCE 7. GATE 7. SECOND STAGE Vd 7. EMITTER, #1 8. SOURCE 8. SOURCE 8. FIRST STAGE Vd 8. COLLECTOR, #1 STYLE 9: STYLE 10: STYLE 11: STYLE 12: PIN 1. EMITTER, COMMON PIN 1. GROUND PIN 1. SOURCE 1 PIN 1. SOURCE 2. COLLECTOR, DIE #1 2. BIAS 1 2. GATE 1 2. SOURCE 3. COLLECTOR, DIE #2 3. OUTPUT 3. SOURCE 2 3. SOURCE 4. EMITTER, COMMON 4. GROUND 4. GATE 2 4. GATE 5. EMITTER, COMMON 5. GROUND 5. DRAIN 2 5. DRAIN 6. BASE, DIE #2 6. BIAS 2 6. DRAIN 2 6. DRAIN 7. BASE, DIE #1 7. INPUT 7. DRAIN 1 7. DRAIN 8. EMITTER, COMMON 8. GROUND 8. DRAIN 1 8. DRAIN STYLE 13: STYLE 14: STYLE 15: STYLE 16: PIN 1. N.C. PIN 1. N−SOURCE PIN 1. ANODE 1 PIN 1. EMITTER, DIE #1 2. SOURCE 2. N−GATE 2. ANODE 1 2. BASE, DIE #1 3. SOURCE 3. P−SOURCE 3. ANODE 1 3. EMITTER, DIE #2 4. GATE 4. P−GATE 4. ANODE 1 4. BASE, DIE #2 5. DRAIN 5. P−DRAIN 5. CATHODE, COMMON 5. COLLECTOR, DIE #2 6. DRAIN 6. P−DRAIN 6. CATHODE, COMMON 6. COLLECTOR, DIE #2 7. DRAIN 7. N−DRAIN 7. CATHODE, COMMON 7. COLLECTOR, DIE #1 8. DRAIN 8. N−DRAIN 8. CATHODE, COMMON 8. COLLECTOR, DIE #1 STYLE 17: STYLE 18: STYLE 19: STYLE 20: PIN 1. VCC PIN 1. ANODE PIN 1. SOURCE 1 PIN 1. SOURCE (N) 2. V2OUT 2. ANODE 2. GATE 1 2. GATE (N) 3. V1OUT 3. SOURCE 3. SOURCE 2 3. SOURCE (P) 4. TXE 4. GATE 4. GATE 2 4. GATE (P) 5. RXE 5. DRAIN 5. DRAIN 2 5. DRAIN 6. VEE 6. DRAIN 6. MIRROR 2 6. DRAIN 7. GND 7. CATHODE 7. DRAIN 1 7. DRAIN 8. ACC 8. CATHODE 8. MIRROR 1 8. DRAIN STYLE 21: STYLE 22: STYLE 23: STYLE 24: PIN 1. CATHODE 1 PIN 1. I/O LINE 1 PIN 1. LINE 1 IN PIN 1. BASE 2. CATHODE 2 2. COMMON CATHODE/VCC 2. COMMON ANODE/GND 2. EMITTER 3. CATHODE 3 3. COMMON CATHODE/VCC 3. COMMON ANODE/GND 3. COLLECTOR/ANODE 4. CATHODE 4 4. I/O LINE 3 4. LINE 2 IN 4. COLLECTOR/ANODE 5. CATHODE 5 5. COMMON ANODE/GND 5. LINE 2 OUT 5. CATHODE 6. COMMON ANODE 6. I/O LINE 4 6. COMMON ANODE/GND 6. CATHODE 7. COMMON ANODE 7. I/O LINE 5 7. COMMON ANODE/GND 7. COLLECTOR/ANODE 8. CATHODE 6 8. COMMON ANODE/GND 8. LINE 1 OUT 8. COLLECTOR/ANODE STYLE 25: STYLE 26: STYLE 27: STYLE 28: PIN 1. VIN PIN 1. GND PIN 1. ILIMIT PIN 1. SW_TO_GND 2. N/C 2. dv/dt 2. OVLO 2. DASIC_OFF 3. REXT 3. ENABLE 3. UVLO 3. DASIC_SW_DET 4. GND 4. ILIMIT 4. INPUT+ 4. GND 5. IOUT 5. SOURCE 5. SOURCE 5. V_MON 6. IOUT 6. SOURCE 6. SOURCE 6. VBULK 7. IOUT 7. SOURCE 7. SOURCE 7. VBULK 8. IOUT 8. VCC 8. DRAIN 8. VIN STYLE 29: STYLE 30: PIN 1. BASE, DIE #1 PIN 1. DRAIN 1 2. EMITTER, #1 2. DRAIN 1 3. BASE, #2 3. GATE 2 4. EMITTER, #2 4. SOURCE 2 5. COLLECTOR, #2 5. SOURCE 1/DRAIN 2 6. COLLECTOR, #2 6. SOURCE 1/DRAIN 2 7. COLLECTOR, #1 7. SOURCE 1/DRAIN 2 8. COLLECTOR, #1 8. GATE 1
DOCUMENT NUMBER: 98ASB42564B
Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
DESCRIPTION: SOIC−8 NB PAGE 2 OF 2
