T1610, T1635, T1650, BTA16, BTB16. Characteristics (curves)
Model Line for this Datasheet
- BTA16-600B BTA16-600BRG BTA16-600BWRG BTA16-600CRG BTA16-600CWRG BTA16-600SWRG BTA16-800BRG BTA16-800BWRG BTA16-800CWRG BTA16-800SWRG
Text Version of Document

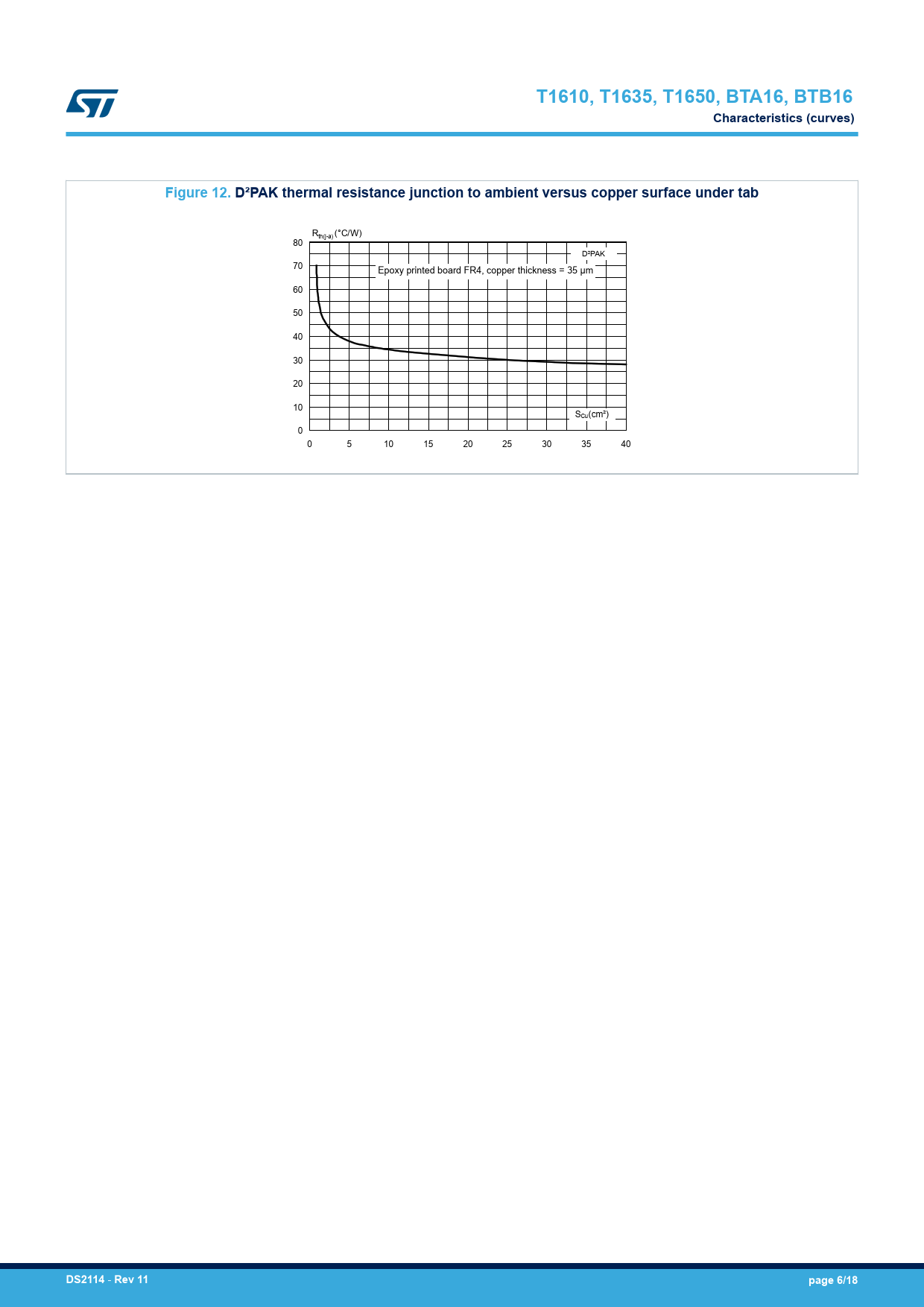

T1610, T1635, T1650, BTA16, BTB16 Characteristics (curves) Figure 12. D²PAK thermal resistance junction to ambient versus copper surface under tab
Rth(j-a) (°C/W) 80 D²PAK 70 Epoxy printed board FR4, copper thickness = 35 µm 60 50 40 30 20 10 SCu(cm²) 0 0 5 10 15 20 25 30 35 40
DS2114
-
Rev 11 page 6/18
