Datasheet T1610, T1635, T1650, BTA16, BTB16 (STMicroelectronics) - 9
| Manufacturer | STMicroelectronics |
| Description | Snubberless, logic level and standard 16 A Triacs |
| Pages / Page | 18 / 9 — T1610, T1635, T1650, BTA16, BTB16. TO-220AB Insulated and non Insulated … |
| File Format / Size | PDF / 232 Kb |
| Document Language | English |
T1610, T1635, T1650, BTA16, BTB16. TO-220AB Insulated and non Insulated package information
Model Line for this Datasheet
- BTA16-600B BTA16-600BRG BTA16-600BWRG BTA16-600CRG BTA16-600CWRG BTA16-600SWRG BTA16-800BRG BTA16-800BWRG BTA16-800CWRG BTA16-800SWRG
Text Version of Document

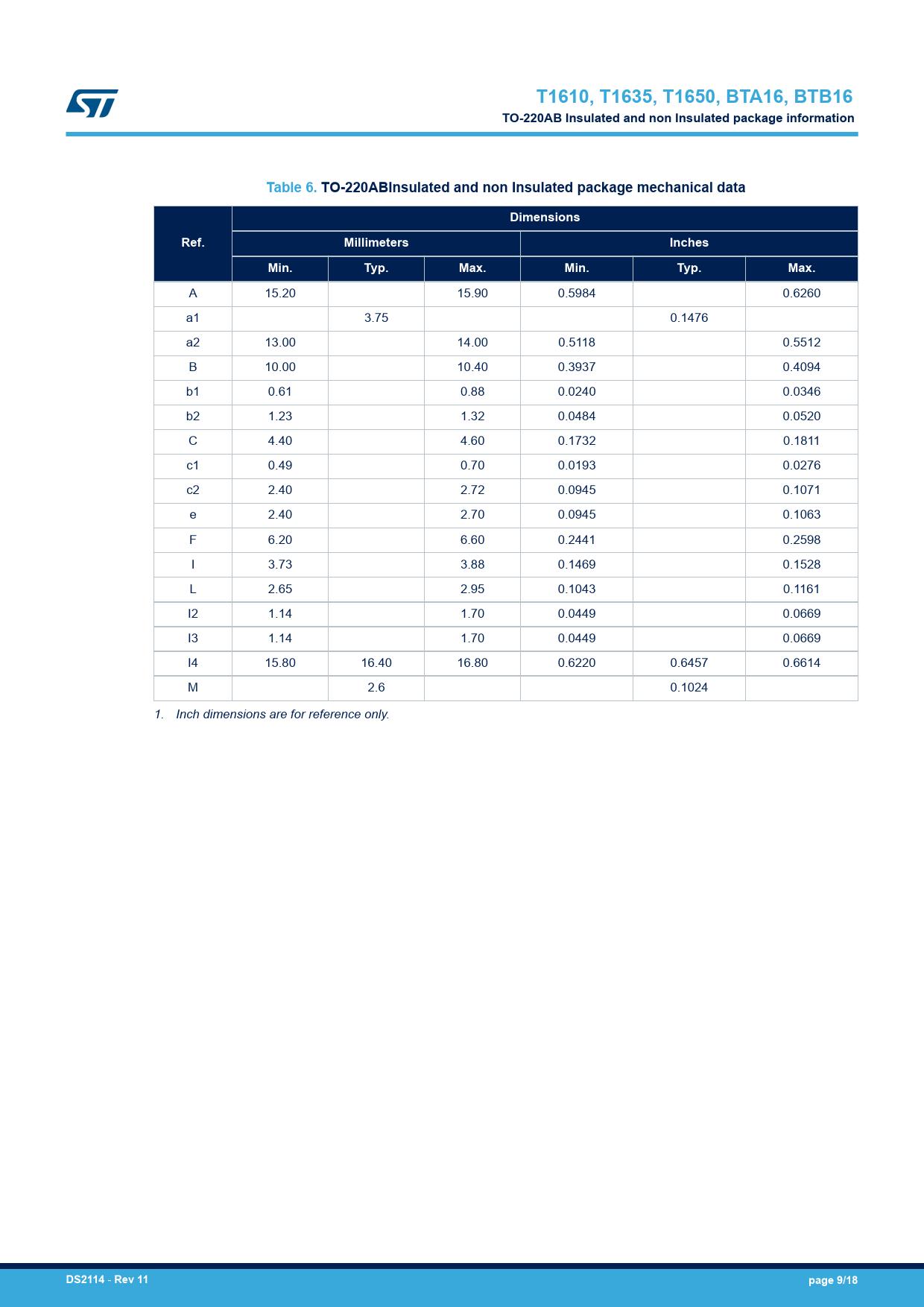

T1610, T1635, T1650, BTA16, BTB16 TO-220AB Insulated and non Insulated package information Table 6. TO-220ABInsulated and non Insulated package mechanical data Dimensions Ref. Millimeters Inches Min. Typ. Max. Min. Typ. Max.
A 15.20 15.90 0.5984 0.6260 a1 3.75 0.1476 a2 13.00 14.00 0.5118 0.5512 B 10.00 10.40 0.3937 0.4094 b1 0.61 0.88 0.0240 0.0346 b2 1.23 1.32 0.0484 0.0520 C 4.40 4.60 0.1732 0.1811 c1 0.49 0.70 0.0193 0.0276 c2 2.40 2.72 0.0945 0.1071 e 2.40 2.70 0.0945 0.1063 F 6.20 6.60 0.2441 0.2598 I 3.73 3.88 0.1469 0.1528 L 2.65 2.95 0.1043 0.1161 I2 1.14 1.70 0.0449 0.0669 I3 1.14 1.70 0.0449 0.0669 I4 15.80 16.40 16.80 0.6220 0.6457 0.6614 M 2.6 0.1024 1. Inch dimensions are for reference only.
DS2114
-
Rev 11 page 9/18
