Datasheet KSD2012 (Fairchild) - 3
| Manufacturer | Fairchild |
| Description | Low Frequency Power Amplifier |
| Pages / Page | 4 / 3 — KSD201. Package Demensions |
| File Format / Size | PDF / 54 Kb |
| Document Language | English |
KSD201. Package Demensions
Model Line for this Datasheet
Text Version of Document
KSD201 Package Demensions 2

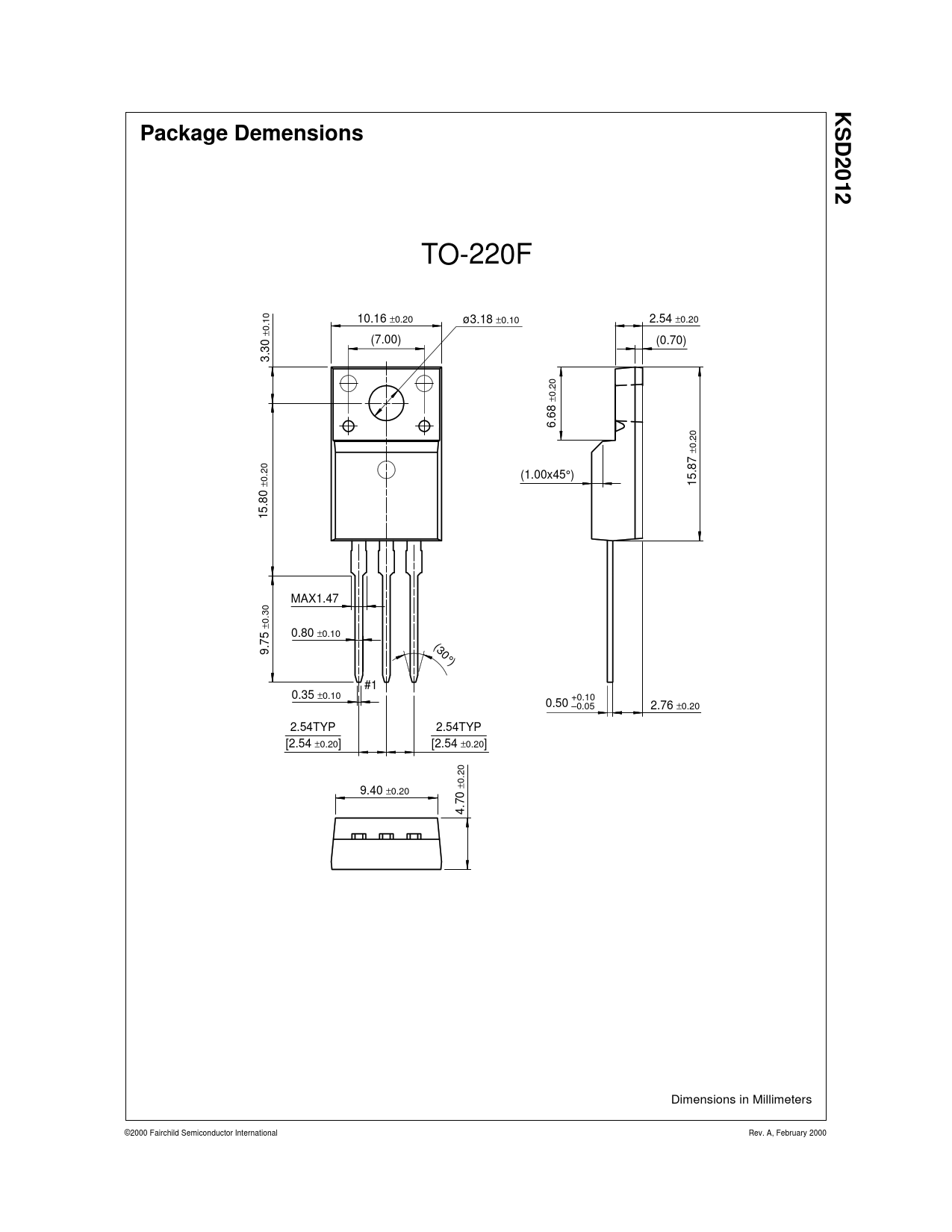

TO-220F 10.16 ±0.20 ø3.18 ±0.10 2.54 ±0.20 ±0.10 (7.00) (0.70) 3.30 ±0.20 6.68 ±0.20 (1.00x45°) ±0.20 15.87 15.80 MAX1.47 ±0.30 0.80 ±0.10 (30 9.75 °) #1 0.35 ±0.10 +0.10 0.50 –0.05 2.76 ±0.20 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] ±0.20 9.40 ±0.20 4.70 Dimensions in Millimeters ©2000 Fairchild Semiconductor International Rev. A, February 2000
TO-220F 10.16 ±0.20 ø3.18 ±0.10 2.54 ±0.20 ±0.10 (7.00) (0.70) 3.30 ±0.20 6.68 ±0.20 (1.00x45°) ±0.20 15.87 15.80 MAX1.47 ±0.30 0.80 ±0.10 (30 9.75 °) #1 0.35 ±0.10 +0.10 0.50 –0.05 2.76 ±0.20 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] ±0.20 9.40 ±0.20 4.70 Dimensions in Millimeters ©2000 Fairchild Semiconductor International Rev. A, February 2000
