Datasheet CBR35F-010P (Central Semiconductor)
| Manufacturer | Central Semiconductor |
| Description | FAST RECOVERY SILICON BRIDGE RECTIFIERS 35 AMP, 100 THRU 600 VOLT |
| Pages / Page | 5 / 1 — CBR35F-010P SERIES. FAST RECOVERY. w w w. c e n t r a l s e m i . c o m. … |
| File Format / Size | PDF / 624 Kb |
| Document Language | English |

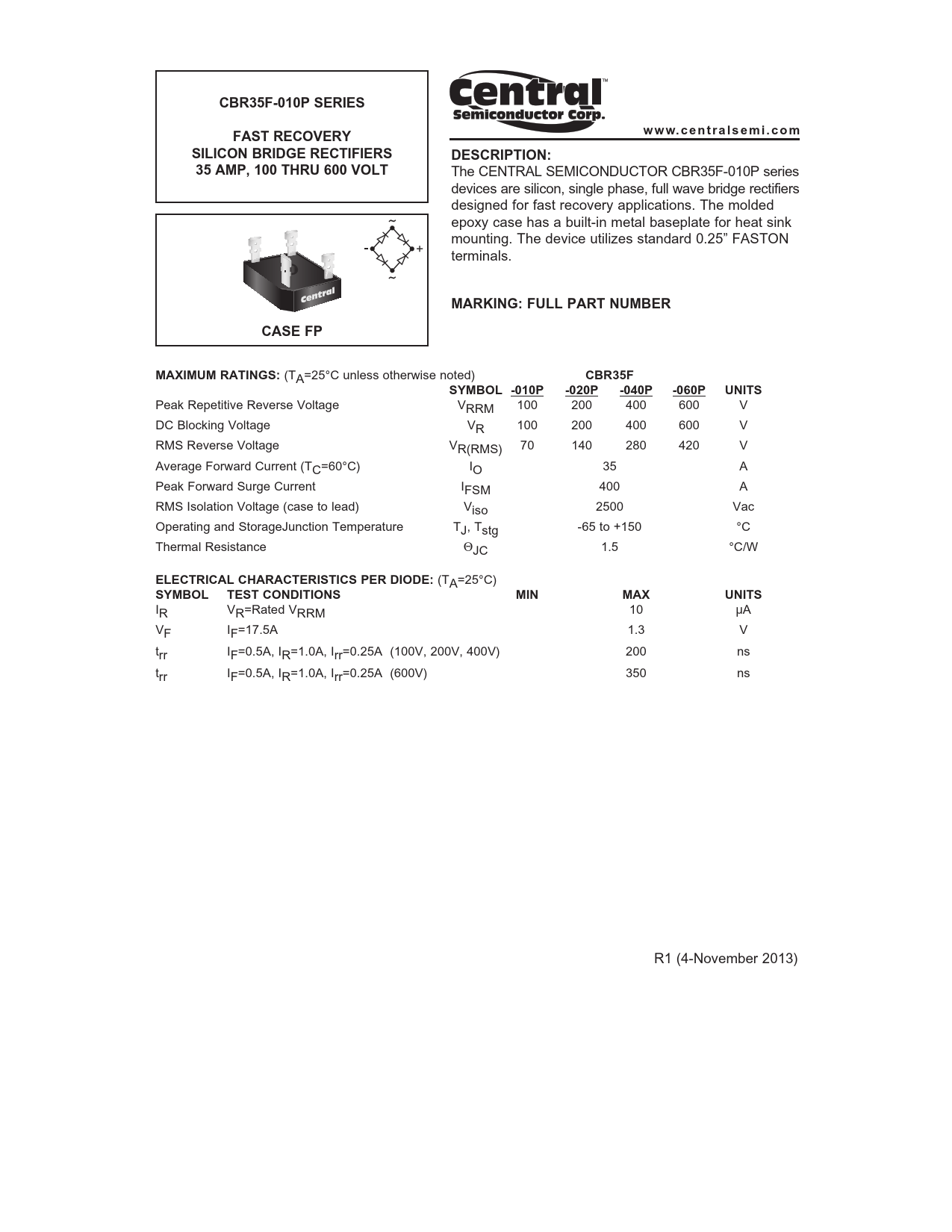

CBR35F-010P SERIES. FAST RECOVERY. w w w. c e n t r a l s e m i . c o m. SILICON BRIDGE RECTIFIERS. DESCRIPTION:
Model Line for this Datasheet
Text Version of Document
CBR35F-010P SERIES FAST RECOVERY w w w. c e n t r a l s e m i . c o m SILICON BRIDGE RECTIFIERS DESCRIPTION: 35 AMP, 100 THRU 600 VOLT
The CENTRAL SEMICONDUCTOR CBR35F-010P series devices are silicon, single phase, full wave bridge rectifiers designed for fast recovery applications. The molded epoxy case has a built-in metal baseplate for heat sink mounting. The device utilizes standard 0.25” FASTON terminals.
MARKING: FULL PART NUMBER CASE FP MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
CBR35F SYMBOL -010P -020P -040P -060P UNITS
Peak Repetitive Reverse Voltage VRRM 100 200 400 600 V DC Blocking Voltage VR 100 200 400 600 V RMS Reverse Voltage VR(RMS) 70 140 280 420 V Average Forward Current (TC=60°C) IO 35 A Peak Forward Surge Current IFSM 400 A RMS Isolation Voltage (case to lead) Viso 2500 Vac Operating and StorageJunction Temperature TJ, Tstg -65 to +150 °C Thermal Resistance ΘJC 1.5 °C/W
ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C)
SYMBOL TEST CONDITIONS MIN MAX UNITS
IR VR=Rated VRRM 10 μA VF IF=17.5A 1.3 V trr IF=0.5A, IR=1.0A, Irr=0.25A (100V, 200V, 400V) 200 ns trr IF=0.5A, IR=1.0A, Irr=0.25A (600V) 350 ns R1 (4-November 2013)
The CENTRAL SEMICONDUCTOR CBR35F-010P series devices are silicon, single phase, full wave bridge rectifiers designed for fast recovery applications. The molded epoxy case has a built-in metal baseplate for heat sink mounting. The device utilizes standard 0.25” FASTON terminals.
MARKING: FULL PART NUMBER CASE FP MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
CBR35F SYMBOL -010P -020P -040P -060P UNITS
Peak Repetitive Reverse Voltage VRRM 100 200 400 600 V DC Blocking Voltage VR 100 200 400 600 V RMS Reverse Voltage VR(RMS) 70 140 280 420 V Average Forward Current (TC=60°C) IO 35 A Peak Forward Surge Current IFSM 400 A RMS Isolation Voltage (case to lead) Viso 2500 Vac Operating and StorageJunction Temperature TJ, Tstg -65 to +150 °C Thermal Resistance ΘJC 1.5 °C/W
ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C)
SYMBOL TEST CONDITIONS MIN MAX UNITS
IR VR=Rated VRRM 10 μA VF IF=17.5A 1.3 V trr IF=0.5A, IR=1.0A, Irr=0.25A (100V, 200V, 400V) 200 ns trr IF=0.5A, IR=1.0A, Irr=0.25A (600V) 350 ns R1 (4-November 2013)
