Datasheet ADR1399 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Oven-Compensated, Buried Zener, 7.05 V Voltage Reference |
| Pages / Page | 11 / 3 — ADR1399. SPECIFICATIONS. ELECTRICAL CHARACTERISTICS. Table 2. Parameter. … |
| File Format / Size | PDF / 2.3 Mb |
| Document Language | English |
ADR1399. SPECIFICATIONS. ELECTRICAL CHARACTERISTICS. Table 2. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit. analog.com
Model Line for this Datasheet
Text Version of Document
link to page 3 link to page 3 Data Sheet

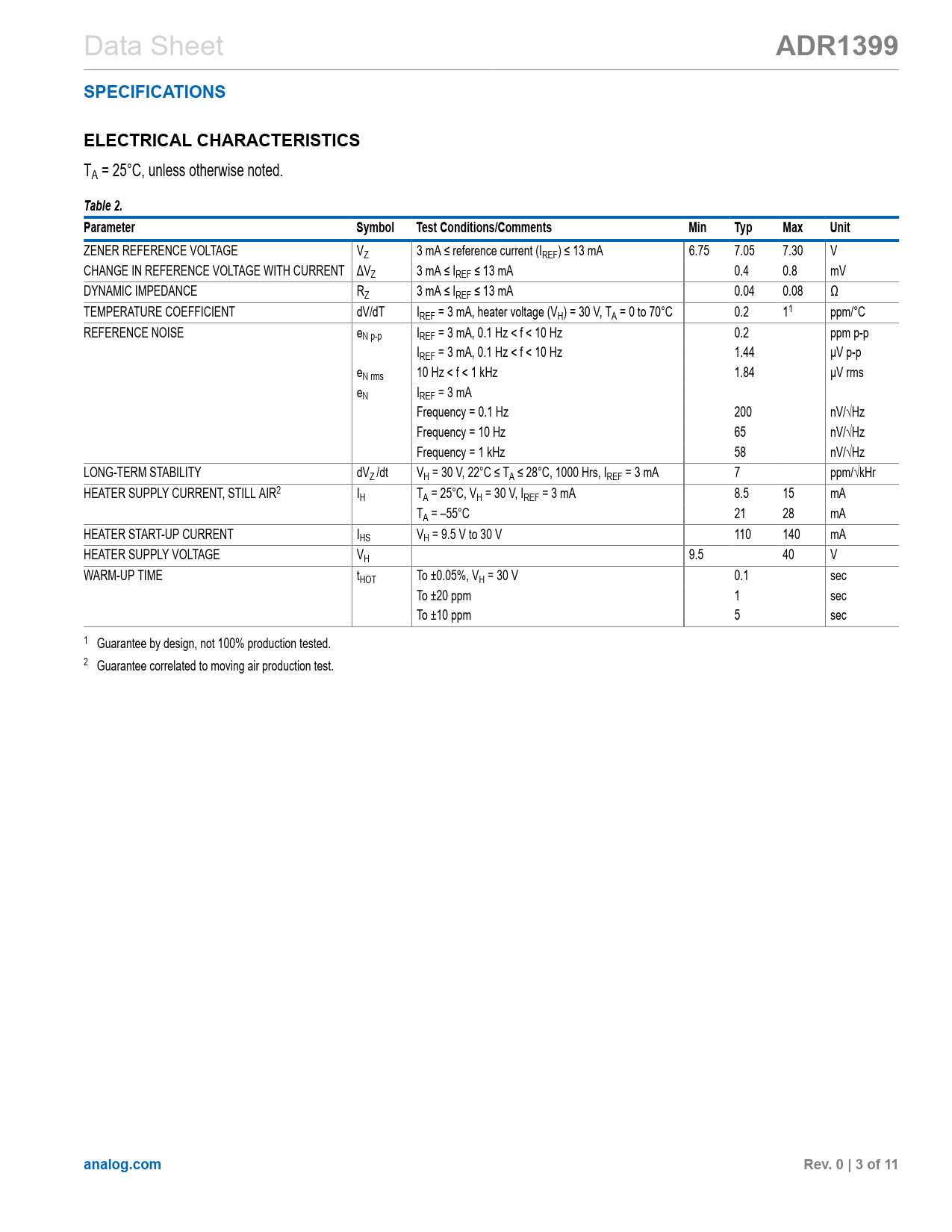

ADR1399 SPECIFICATIONS ELECTRICAL CHARACTERISTICS
TA = 25°C, unless otherwise noted.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
ZENER REFERENCE VOLTAGE VZ 3 mA ≤ reference current (IREF) ≤ 13 mA 6.75 7.05 7.30 V CHANGE IN REFERENCE VOLTAGE WITH CURRENT ΔVZ 3 mA ≤ IREF ≤ 13 mA 0.4 0.8 mV DYNAMIC IMPEDANCE RZ 3 mA ≤ IREF ≤ 13 mA 0.04 0.08 Ω TEMPERATURE COEFFICIENT dV/dT IREF = 3 mA, heater voltage (VH) = 30 V, TA = 0 to 70°C 0.2 11 ppm/°C REFERENCE NOISE eN p-p IREF = 3 mA, 0.1 Hz < f < 10 Hz 0.2 ppm p-p IREF = 3 mA, 0.1 Hz < f < 10 Hz 1.44 µV p-p eN rms 10 Hz < f < 1 kHz 1.84 µV rms eN IREF = 3 mA Frequency = 0.1 Hz 200 nV/√Hz Frequency = 10 Hz 65 nV/√Hz Frequency = 1 kHz 58 nV/√Hz LONG-TERM STABILITY dVZ /dt VH = 30 V, 22°C ≤ TA ≤ 28°C, 1000 Hrs, IREF = 3 mA 7 ppm/√kHr HEATER SUPPLY CURRENT, STILL AIR2 IH TA = 25°C, VH = 30 V, IREF = 3 mA 8.5 15 mA TA = –55°C 21 28 mA HEATER START-UP CURRENT IHS VH = 9.5 V to 30 V 110 140 mA HEATER SUPPLY VOLTAGE VH 9.5 40 V WARM-UP TIME tHOT To ±0.05%, VH = 30 V 0.1 sec To ±20 ppm 1 sec To ±10 ppm 5 sec 1 Guarantee by design, not 100% production tested. 2 Guarantee correlated to moving air production test.
analog.com Rev. 0 | 3 of 11
