Datasheet ADR1399 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | Oven-Compensated, Buried Zener, 7.05 V Voltage Reference |
| Pages / Page | 11 / 7 — ADR1399. TYPICAL PERFORMANCE CHARACTERISTICS. Figure 9. Zener Spectral … |
| File Format / Size | PDF / 2.3 Mb |
| Document Language | English |
ADR1399. TYPICAL PERFORMANCE CHARACTERISTICS. Figure 9. Zener Spectral Noise with the Heater On
Model Line for this Datasheet
Text Version of Document
Data Sheet

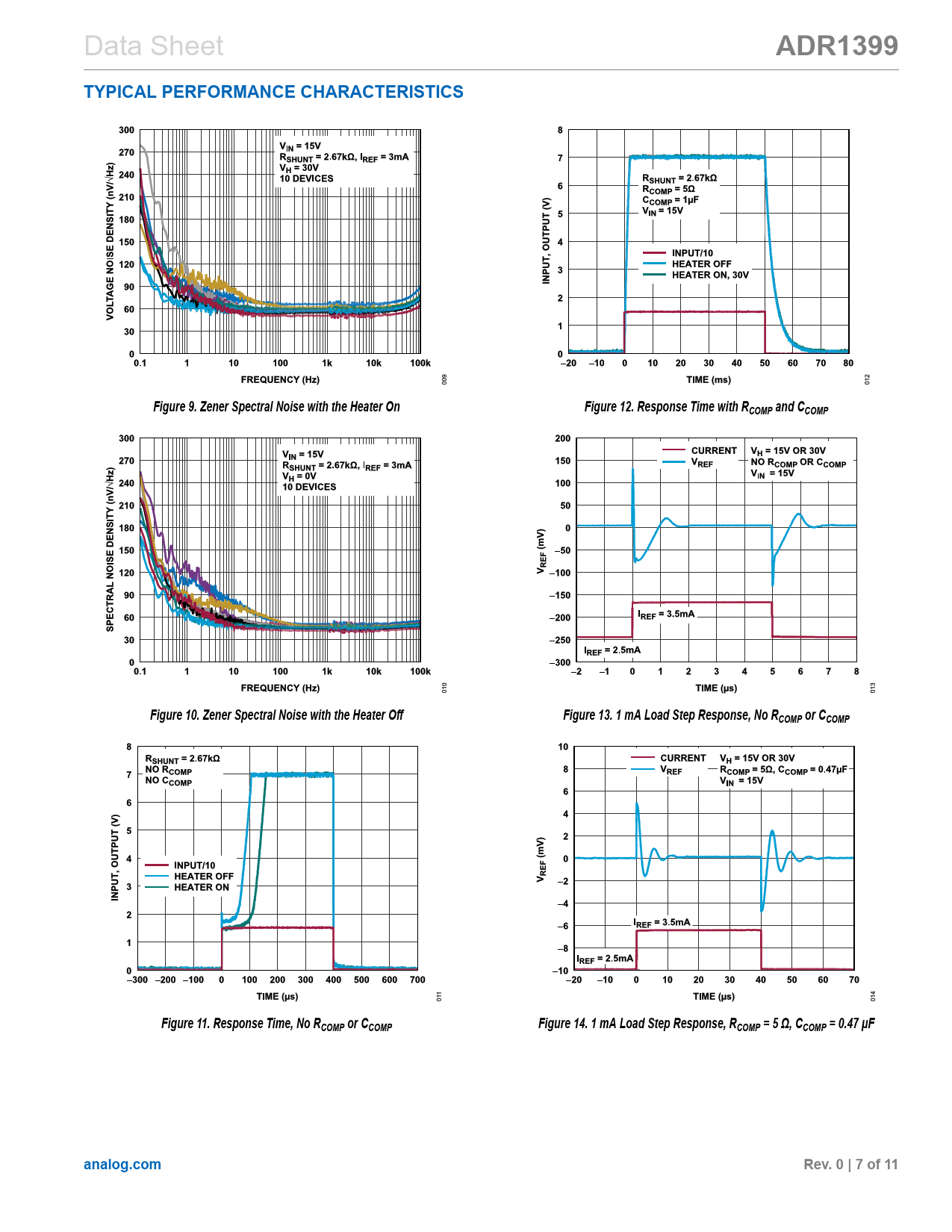

ADR1399 TYPICAL PERFORMANCE CHARACTERISTICS Figure 9. Zener Spectral Noise with the Heater On Figure 12. Response Time with RCOMP and CCOMP Figure 10. Zener Spectral Noise with the Heater Off Figure 13. 1 mA Load Step Response, No RCOMP or CCOMP Figure 11. Response Time, No RCOMP or CCOMP Figure 14. 1 mA Load Step Response, RCOMP = 5 Ω, CCOMP = 0.47 μF analog.com Rev. 0 | 7 of 11
