Datasheet NTE102 (PNP), NTE103 (NPN) (NTE Electronics) - 2
| Manufacturer | NTE Electronics |
| Description | Germanium Complementary Transistors Power Output, Driver TO−5 / TO−39 Type Package |
| Pages / Page | 2 / 2 — Electrical Characteristics (Cont’d):. Parameter. Symbol. Test Conditions. … |
| File Format / Size | PDF / 63 Kb |
| Document Language | English |
Electrical Characteristics (Cont’d):. Parameter. Symbol. Test Conditions. Min. Typ. Max. Unit. ON Characteristics
Model Line for this Datasheet
Text Version of Document

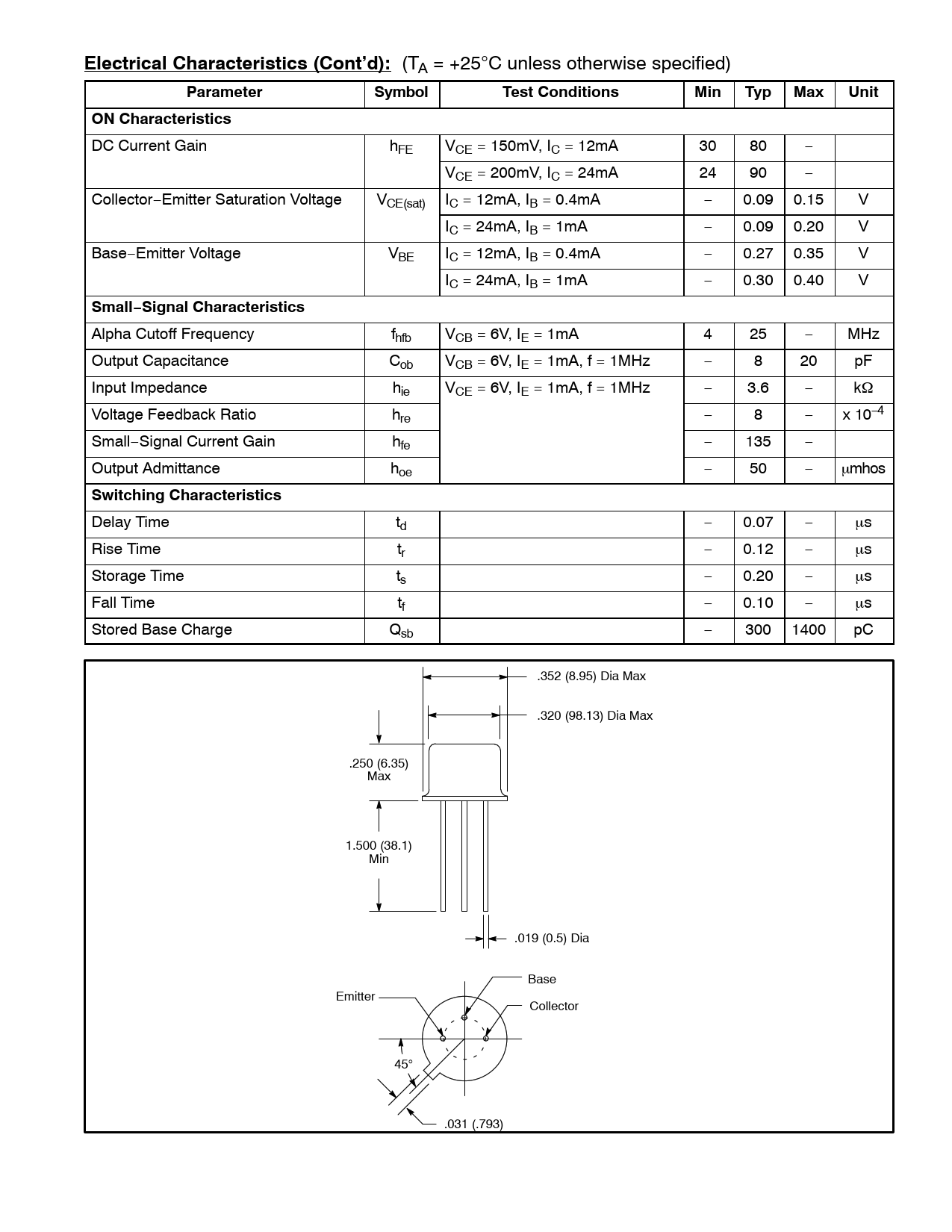

Electrical Characteristics (Cont’d):
(TA = +25C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit ON Characteristics
DC Current Gain hFE VCE = 150mV, IC = 12mA 30 80 − VCE = 200mV, IC = 24mA 24 90 − Collector−Emitter Saturation Voltage VCE(sat) IC = 12mA, IB = 0.4mA − 0.09 0.15 V IC = 24mA, IB = 1mA − 0.09 0.20 V Base−Emitter Voltage VBE IC = 12mA, IB = 0.4mA − 0.27 0.35 V IC = 24mA, IB = 1mA − 0.30 0.40 V
Small−Signal Characteristics
Alpha Cutoff Frequency fhfb VCB = 6V, IE = 1mA 4 25 − MHz Output Capacitance Cob VCB = 6V, IE = 1mA, f = 1MHz − 8 20 pF Input Impedance hie VCE = 6V, IE = 1mA, f = 1MHz − 3.6 − k Voltage Feedback Ratio hre − 8 − x 10−4 Small−Signal Current Gain hfe − 135 − Output Admittance hoe − 50 − mhos
Switching Characteristics
Delay Time td − 0.07 − s Rise Time tr − 0.12 − s Storage Time ts − 0.20 − s Fall Time tf − 0.10 − s Stored Base Charge Qsb − 300 1400 pC .352 (8.95) Dia Max .320 (98.13) Dia Max .250 (6.35) Max 1.500 (38.1) Min .019 (0.5) Dia Base Emitter Collector 45 .031 (.793)
(TA = +25C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit ON Characteristics
DC Current Gain hFE VCE = 150mV, IC = 12mA 30 80 − VCE = 200mV, IC = 24mA 24 90 − Collector−Emitter Saturation Voltage VCE(sat) IC = 12mA, IB = 0.4mA − 0.09 0.15 V IC = 24mA, IB = 1mA − 0.09 0.20 V Base−Emitter Voltage VBE IC = 12mA, IB = 0.4mA − 0.27 0.35 V IC = 24mA, IB = 1mA − 0.30 0.40 V
Small−Signal Characteristics
Alpha Cutoff Frequency fhfb VCB = 6V, IE = 1mA 4 25 − MHz Output Capacitance Cob VCB = 6V, IE = 1mA, f = 1MHz − 8 20 pF Input Impedance hie VCE = 6V, IE = 1mA, f = 1MHz − 3.6 − k Voltage Feedback Ratio hre − 8 − x 10−4 Small−Signal Current Gain hfe − 135 − Output Admittance hoe − 50 − mhos
Switching Characteristics
Delay Time td − 0.07 − s Rise Time tr − 0.12 − s Storage Time ts − 0.20 − s Fall Time tf − 0.10 − s Stored Base Charge Qsb − 300 1400 pC .352 (8.95) Dia Max .320 (98.13) Dia Max .250 (6.35) Max 1.500 (38.1) Min .019 (0.5) Dia Base Emitter Collector 45 .031 (.793)
