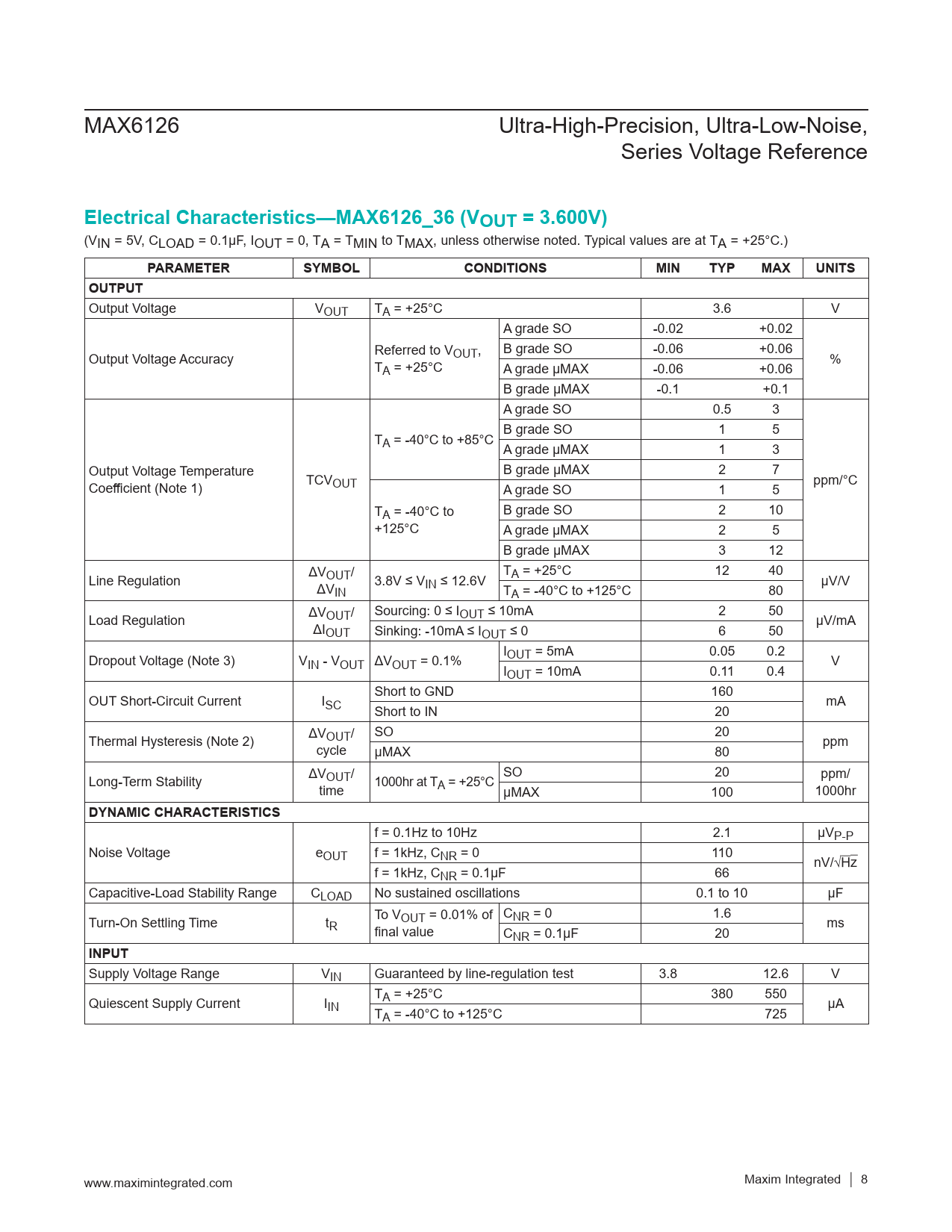

Electrical Characteristics—MAX6126_36 (VOUT = 3.600V). PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS. OUTPUT
Model Line for this Datasheet
- MAX6126A21+ MAX6126A21+T MAX6126A21/GG8 MAX6126A25+ MAX6126A25+T MAX6126A28+ MAX6126A28+T MAX6126A30+ MAX6126A30+T MAX6126A41+ MAX6126A41+T MAX6126A50+ MAX6126A50+T MAX6126AASA21+ MAX6126AASA21+T MAX6126AASA21/GG8 MAX6126AASA25+ MAX6126AASA25+T MAX6126AASA25/GG8 MAX6126AASA30+ MAX6126AASA30+T MAX6126AASA41+ MAX6126AASA41+T MAX6126AASA50+ MAX6126AASA50+T MAX6126B21+ MAX6126B21+T MAX6126B25+ MAX6126B25+T MAX6126B28+ MAX6126B30+ MAX6126B30+T MAX6126B41+ MAX6126B41+T MAX6126B50+ MAX6126B50+T MAX6126BASA21+ MAX6126BASA21+T MAX6126BASA25+ MAX6126BASA25+T MAX6126BASA30+ MAX6126BASA41+ MAX6126BASA41+T MAX6126BASA41/V+ MAX6126BASA41/V+T MAX6126BASA50+ MAX6126BASA50+T
Text Version of Document
MAX6126 Ultra-High-Precision, Ultra-Low-Noise, Series Voltage Reference
Electrical Characteristics—MAX6126_36 (VOUT = 3.600V)
(VIN = 5V, CLOAD = 0.1μF, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
Output Voltage VOUT TA = +25°C 3.6 V A grade SO -0.02 +0.02 B grade SO -0.06 +0.06 Output Voltage Accuracy Referred to VOUT, T % A = +25°C A grade µMAX -0.06 +0.06 B grade µMAX -0.1 +0.1 A grade SO 0.5 3 B grade SO 1 5 TA = -40°C to +85°C A grade µMAX 1 3 Output Voltage Temperature B grade µMAX 2 7 Coefficient (Note 1) TCVOUT ppm/°C A grade SO 1 5 TA = -40°C to B grade SO 2 10 +125°C A grade µMAX 2 5 B grade µMAX 3 12 T Line Regulation ΔVOUT/ A = +25°C 12 40 ΔV 3.8V ≤ VIN ≤ 12.6V µV/V IN TA = -40°C to +125°C 80 Sourcing: 0 ≤ I Load Regulation ΔVOUT/ OUT ≤ 10mA 2 50 ΔI µV/mA OUT Sinking: -10mA ≤ IOUT ≤ 0 6 50 I Dropout Voltage (Note 3) V OUT = 5mA 0.05 0.2 IN - VOUT ΔVOUT = 0.1% V IOUT = 10mA 0.11 0.4 Short to GND 160 OUT Short-Circuit Current ISC mA Short to IN 20 SO 20 Thermal Hysteresis (Note 2) ΔVOUT/ cycle ppm µMAX 80 SO 20 Long-Term Stability ΔVOUT/ ppm/ time 1000hr at TA = +25°C µMAX 100 1000hr
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 2.1 µVP-P Noise Voltage eOUT f = 1kHz, CNR = 0 110 nV/√Hz f = 1kHz, CNR = 0.1µF 66 Capacitive-Load Stability Range CLOAD No sustained oscillations 0.1 to 10 µF C Turn-On Settling Time t To VOUT = 0.01% of NR = 0 1.6 R final value ms CNR = 0.1µF 20
INPUT
Supply Voltage Range VIN Guaranteed by line-regulation test 3.8 12.6 V T Quiescent Supply Current I A = +25°C 380 550 IN µA TA = -40°C to +125°C 725 www.maximintegrated.com Maxim Integrated │ 8
Electrical Characteristics—MAX6126_36 (VOUT = 3.600V)
(VIN = 5V, CLOAD = 0.1μF, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
Output Voltage VOUT TA = +25°C 3.6 V A grade SO -0.02 +0.02 B grade SO -0.06 +0.06 Output Voltage Accuracy Referred to VOUT, T % A = +25°C A grade µMAX -0.06 +0.06 B grade µMAX -0.1 +0.1 A grade SO 0.5 3 B grade SO 1 5 TA = -40°C to +85°C A grade µMAX 1 3 Output Voltage Temperature B grade µMAX 2 7 Coefficient (Note 1) TCVOUT ppm/°C A grade SO 1 5 TA = -40°C to B grade SO 2 10 +125°C A grade µMAX 2 5 B grade µMAX 3 12 T Line Regulation ΔVOUT/ A = +25°C 12 40 ΔV 3.8V ≤ VIN ≤ 12.6V µV/V IN TA = -40°C to +125°C 80 Sourcing: 0 ≤ I Load Regulation ΔVOUT/ OUT ≤ 10mA 2 50 ΔI µV/mA OUT Sinking: -10mA ≤ IOUT ≤ 0 6 50 I Dropout Voltage (Note 3) V OUT = 5mA 0.05 0.2 IN - VOUT ΔVOUT = 0.1% V IOUT = 10mA 0.11 0.4 Short to GND 160 OUT Short-Circuit Current ISC mA Short to IN 20 SO 20 Thermal Hysteresis (Note 2) ΔVOUT/ cycle ppm µMAX 80 SO 20 Long-Term Stability ΔVOUT/ ppm/ time 1000hr at TA = +25°C µMAX 100 1000hr
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 2.1 µVP-P Noise Voltage eOUT f = 1kHz, CNR = 0 110 nV/√Hz f = 1kHz, CNR = 0.1µF 66 Capacitive-Load Stability Range CLOAD No sustained oscillations 0.1 to 10 µF C Turn-On Settling Time t To VOUT = 0.01% of NR = 0 1.6 R final value ms CNR = 0.1µF 20
INPUT
Supply Voltage Range VIN Guaranteed by line-regulation test 3.8 12.6 V T Quiescent Supply Current I A = +25°C 380 550 IN µA TA = -40°C to +125°C 725 www.maximintegrated.com Maxim Integrated │ 8
