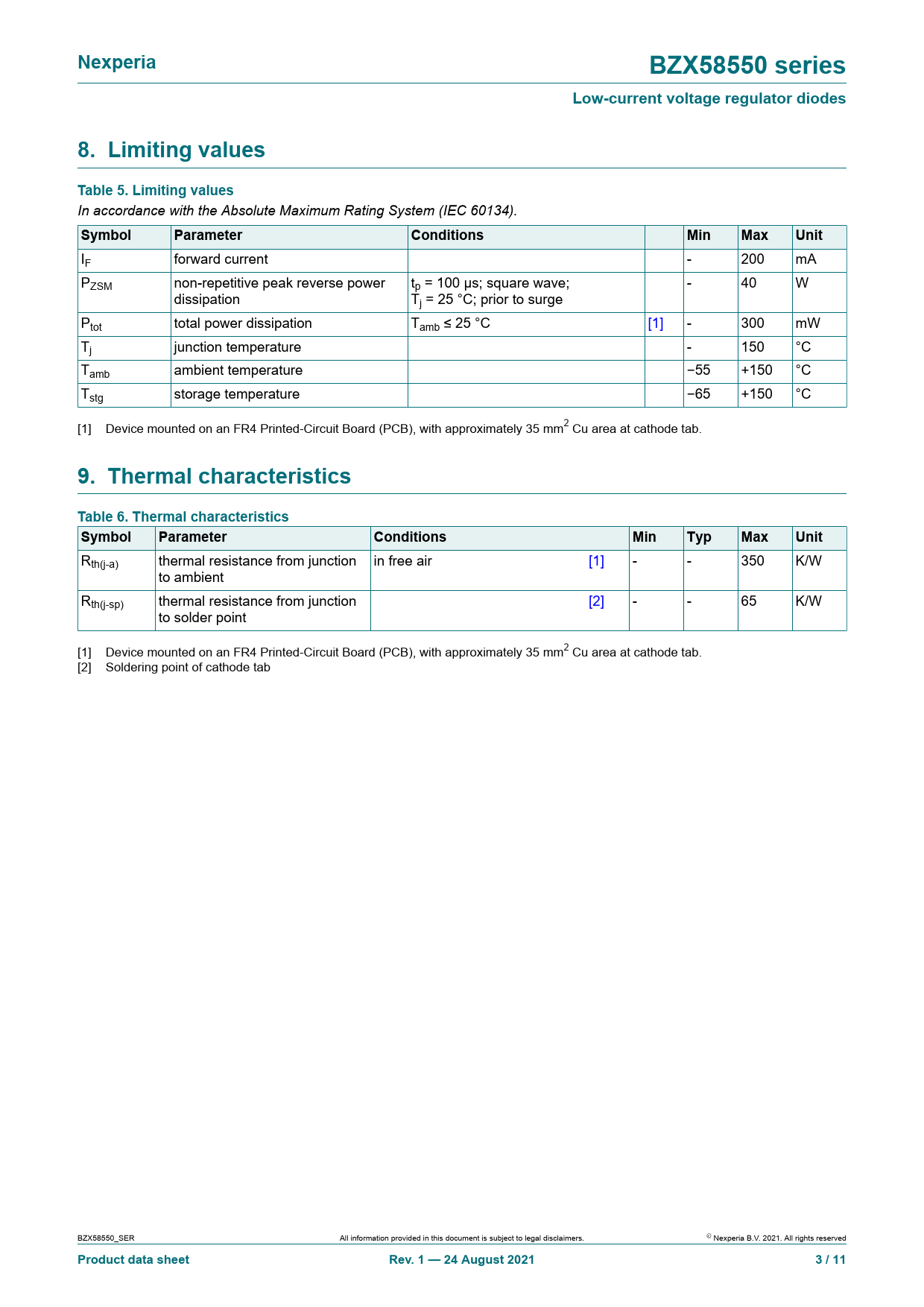

Nexperia. BZX58550 series. Low-current voltage regulator diodes. 8. Limiting values Table 5. Limiting values. Symbol. Parameter
Model Line for this Datasheet
- BZX58550-C10X BZX58550-C11X BZX58550-C12X BZX58550-C13X BZX58550-C15X BZX58550-C16X BZX58550-C18X BZX58550-C1V8X BZX58550-C20X BZX58550-C22X BZX58550-C24X BZX58550-C27X BZX58550-C2V0X BZX58550-C2V2X BZX58550-C2V4X BZX58550-C2V7X BZX58550-C30X BZX58550-C33X BZX58550-C36X BZX58550-C39X BZX58550-C3V0X BZX58550-C3V3X BZX58550-C3V6X BZX58550-C3V9X BZX58550-C43X BZX58550-C47X BZX58550-C4V3X BZX58550-C4V7X BZX58550-C51X BZX58550-C56X BZX58550-C5V1X BZX58550-C5V6X BZX58550-C62X BZX58550-C68X BZX58550-C6V2X BZX58550-C6V8X BZX58550-C75X BZX58550-C7V5X BZX58550-C8V2X BZX58550-C9V1X
Text Version of Document
link to page 3 link to page 3 link to page 3
Nexperia BZX58550 series Low-current voltage regulator diodes 8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
IF forward current - 200 mA PZSM non-repetitive peak reverse power tp = 100 µs; square wave; - 40 W dissipation Tj = 25 °C; prior to surge Ptot total power dissipation Tamb ≤ 25 °C [1] - 300 mW Tj junction temperature - 150 °C Tamb ambient temperature −55 +150 °C Tstg storage temperature −65 +150 °C [1] Device mounted on an FR4 Printed-Circuit Board (PCB), with approximately 35 mm2 Cu area at cathode tab.
9. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from junction in free air [1] - - 350 K/W to ambient Rth(j-sp) thermal resistance from junction [2] - - 65 K/W to solder point [1] Device mounted on an FR4 Printed-Circuit Board (PCB), with approximately 35 mm2 Cu area at cathode tab. [2] Soldering point of cathode tab BZX58550_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 1 — 24 August 2021 3 / 11
