Nexperia RB520S30 200 mA low VF MEGA Schottky barrier rectifier

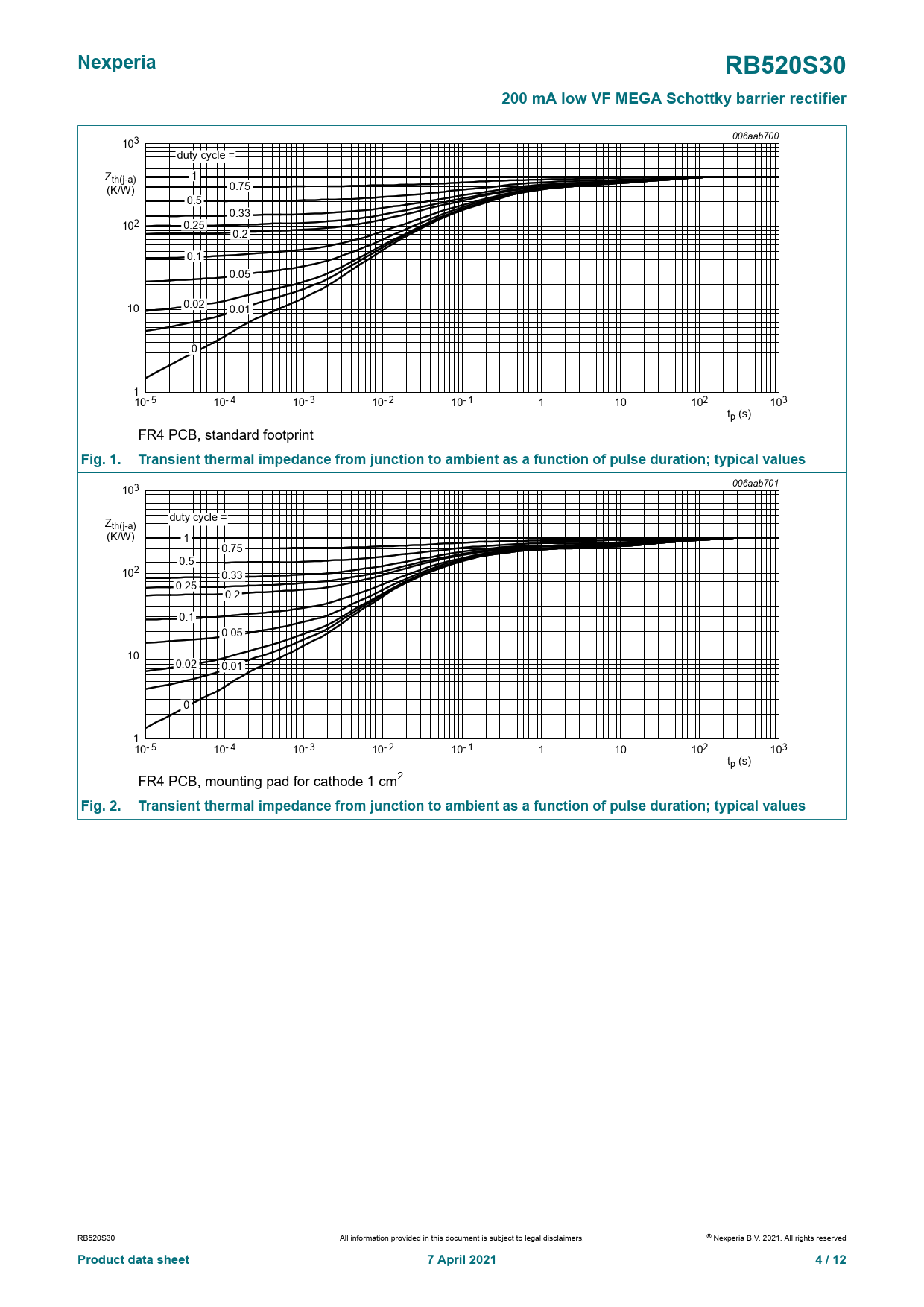

006aab700 103 duty cycle = Zth(j-a) 1 (K/W) 0.75 0.5 0.33 102 0.25 0.2 0.1 0.05 10 0.02 0.01 0 110-5 10- 3 10- 2 10- 4 10 102 10- 1 103 1 tp (s) FR4 PCB, standard footprint
Fig. 1. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
006aab701 103 Z duty cycle = th(j-a) (K/W) 1 0.75 0.5 102 0.33 0.25 0.2 0.1 0.05 10 0.02 0.01 0 110-5 10- 3 10- 2 10- 4 10 102 10- 1 103 1 tp (s) FR4 PCB, mounting pad for cathode 1 cm2
Fig. 2. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
RB520S30 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet 7 April 2021 4 / 12
