Datasheet MAX1698, MAX1698A (Maxim) - 8
| Manufacturer | Maxim |
| Description | High-Efficiency Step-Up Current Regulator for LEDs |
| Pages / Page | 8 / 8 — High-Efficiency Step-Up Current Regulator for LEDs. Package Information. … |
| File Format / Size | PDF / 172 Kb |
| Document Language | English |
High-Efficiency Step-Up Current Regulator for LEDs. Package Information. www.maxim-ic.com/packages. MAX1698/MAX1698A. Note:
Model Line for this Datasheet
Text Version of Document

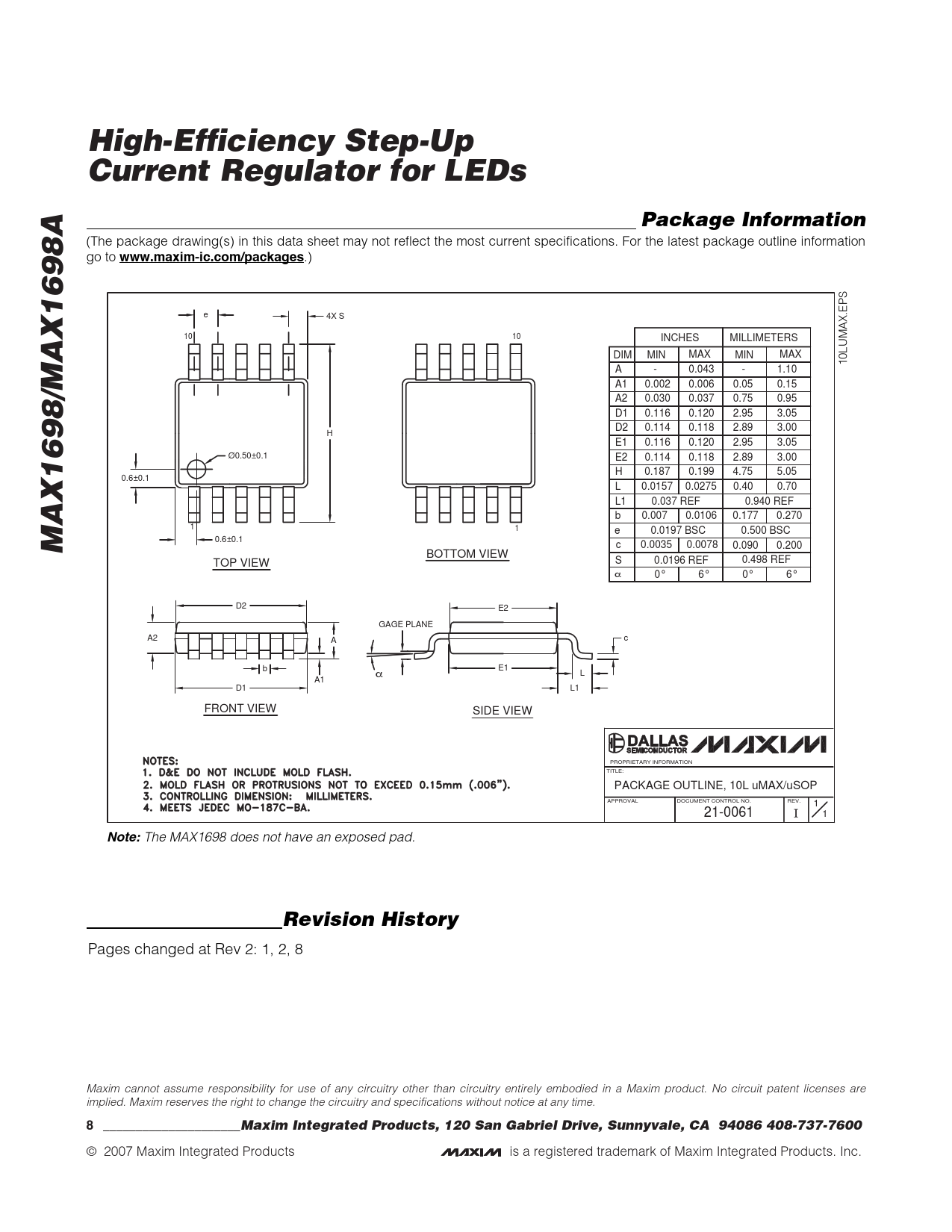

High-Efficiency Step-Up Current Regulator for LEDs Package Information
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information go to
www.maxim-ic.com/packages
.) e 4X S 10 10 INCHES MILLIMETERS DIM MIN MAX MIN MAX 10LUMAX.EPS A - 0.043 - 1.10 A1 0.002 0.006 0.05 0.15 A2 0.030 0.037 0.75 0.95 D1 0.116 0.120 2.95 3.05 D2 0.114 0.118 2.89 3.00 H E1 0.116 0.120 2.95 3.05 Ø0.50±0.1 E2 0.114 0.118 2.89 3.00 H 0.187 0.199 4.75 5.05 0.6±0.1 L 0.0157 0.0275 0.40 0.70 L1 0.037 REF 0.940 REF b 0.007 0.0106 0.177 0.270 1 1 e 0.0197 BSC 0.500 BSC
MAX1698/MAX1698A
0.6±0.1 c 0.0035 0.0078 0.090 0.200 BOTTOM VIEW TOP VIEW S 0.0196 REF 0.498 REF α 0° 6° 0° 6° D2 E2 GAGE PLANE A2 A c b E1 α L A1 D1 L1 FRONT VIEW SIDE VIEW PROPRIETARY INFORMATION TITLE: PACKAGE OUTLINE, 10L uMAX/uSOP APPROVAL DOCUMENT CONTROL NO. REV. 1 21-0061 1
Note:
The MAX1698 does not have an exposed pad.
Revision History
Pages changed at Rev 2: 1, 2, 8 Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
8 _____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 2007 Maxim Integrated Products is a registered trademark of Maxim Integrated Products. Inc.
