Datasheet TCK126BG (Toshiba) - 9
| Manufacturer | Toshiba |
| Description | 0.08 nA Ultra small IQ 1.0 A Load Switch IC in Ultra Small Package |
| Pages / Page | 13 / 9 — TCK126BG. tON Response |
| File Format / Size | PDF / 996 Kb |
| Document Language | English |
TCK126BG. tON Response
Model Line for this Datasheet
Text Version of Document

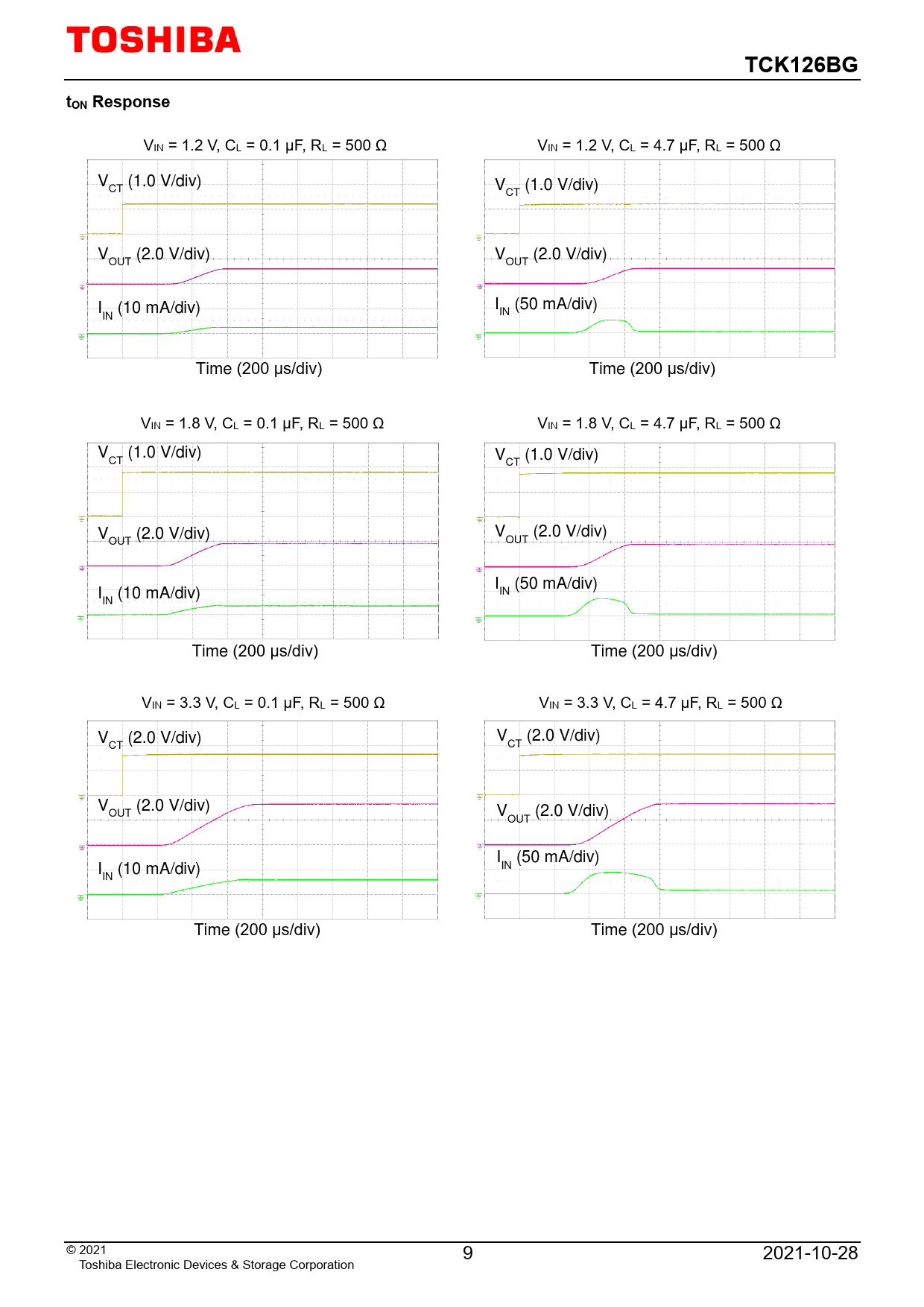

TCK126BG tON Response
VIN = 1.2 V, CL = 0.1 μF, RL = 500 Ω VIN = 1.2 V, CL = 4.7 μF, RL = 500 Ω V V CT (1.0 V/div) CT (1.0 V/div) V V OUT (2.0 V/div) OUT (2.0 V/div) I I IN (10 mA/div) IN (50 mA/div) Time (200 μs/div) Time (200 μs/div) VIN = 1.8 V, CL = 0.1 μF, RL = 500 Ω VIN = 1.8 V, CL = 4.7 μF, RL = 500 Ω V V CT (1.0 V/div) CT (1.0 V/div) V V OUT (2.0 V/div) OUT (2.0 V/div) I I IN (50 mA/div) IN (10 mA/div) Time (200 μs/div) Time (200 μs/div) VIN = 3.3 V, CL = 0.1 μF, RL = 500 Ω VIN = 3.3 V, CL = 4.7 μF, RL = 500 Ω VCT (2.0 V/div) VCT (2.0 V/div) VOUT (2.0 V/div) VOUT (2.0 V/div) I I IN (50 mA/div) IN (10 mA/div) Time (200 μs/div) Time (200 μs/div) © 2021 9 2021-10-28 Toshiba Electronic Devices & Storage Corporation
VIN = 1.2 V, CL = 0.1 μF, RL = 500 Ω VIN = 1.2 V, CL = 4.7 μF, RL = 500 Ω V V CT (1.0 V/div) CT (1.0 V/div) V V OUT (2.0 V/div) OUT (2.0 V/div) I I IN (10 mA/div) IN (50 mA/div) Time (200 μs/div) Time (200 μs/div) VIN = 1.8 V, CL = 0.1 μF, RL = 500 Ω VIN = 1.8 V, CL = 4.7 μF, RL = 500 Ω V V CT (1.0 V/div) CT (1.0 V/div) V V OUT (2.0 V/div) OUT (2.0 V/div) I I IN (50 mA/div) IN (10 mA/div) Time (200 μs/div) Time (200 μs/div) VIN = 3.3 V, CL = 0.1 μF, RL = 500 Ω VIN = 3.3 V, CL = 4.7 μF, RL = 500 Ω VCT (2.0 V/div) VCT (2.0 V/div) VOUT (2.0 V/div) VOUT (2.0 V/div) I I IN (50 mA/div) IN (10 mA/div) Time (200 μs/div) Time (200 μs/div) © 2021 9 2021-10-28 Toshiba Electronic Devices & Storage Corporation
