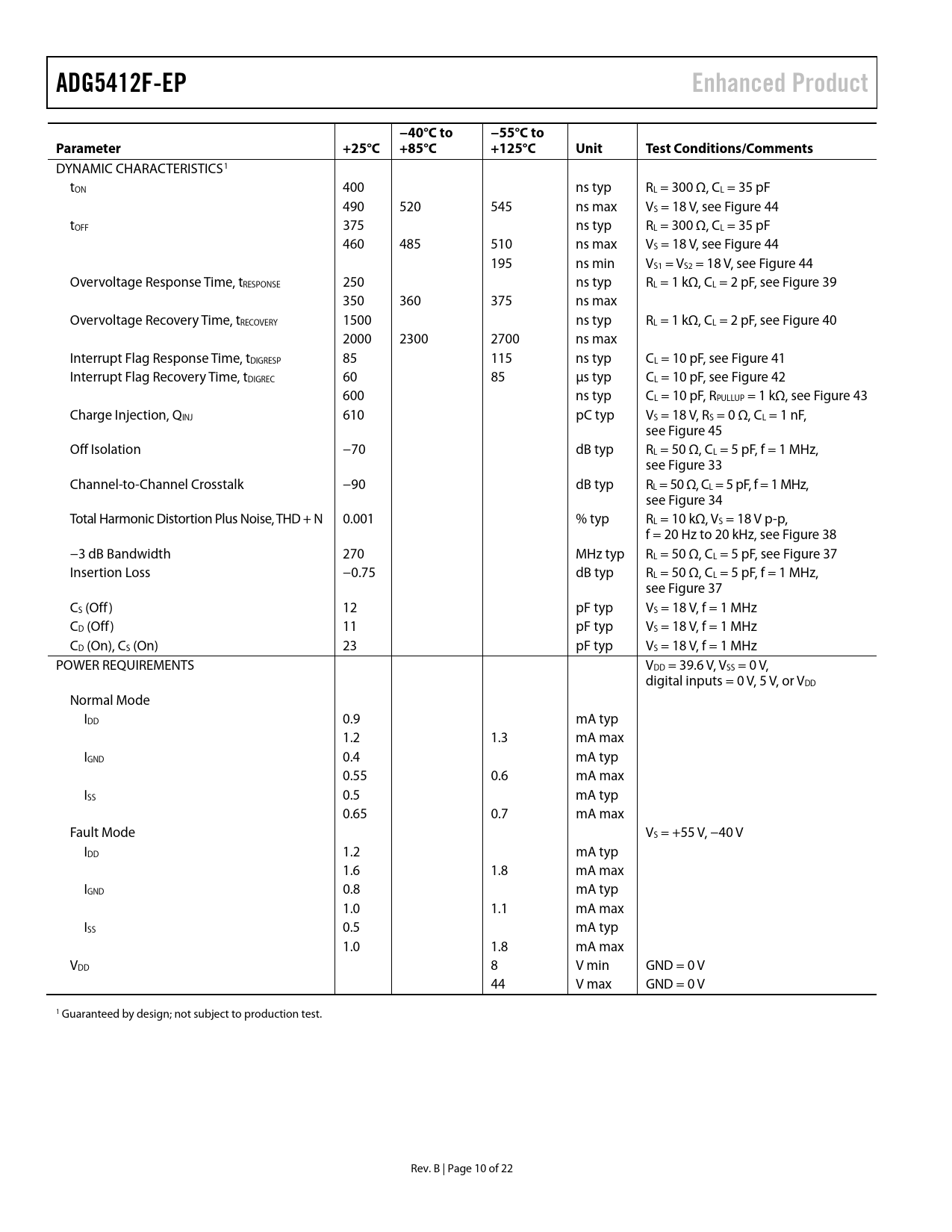

ADG5412F-EP Enhanced Product −40°C to −55°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
DYNAMIC CHARACTERISTICS1 tON 400 ns typ RL = 300 Ω, CL = 35 pF 490 520 545 ns max VS = 18 V, see Figure 44 tOFF 375 ns typ RL = 300 Ω, CL = 35 pF 460 485 510 ns max VS = 18 V, see Figure 44 195 ns min VS1 = VS2 = 18 V, see Figure 44 Overvoltage Response Time, tRESPONSE 250 ns typ RL = 1 kΩ, CL = 2 pF, see Figure 39 350 360 375 ns max Overvoltage Recovery Time, tRECOVERY 1500 ns typ RL = 1 kΩ, CL = 2 pF, see Figure 40 2000 2300 2700 ns max Interrupt Flag Response Time, tDIGRESP 85 115 ns typ CL = 10 pF, see Figure 41 Interrupt Flag Recovery Time, tDIGREC 60 85 µs typ CL = 10 pF, see Figure 42 600 ns typ CL = 10 pF, RPULLUP = 1 kΩ, see Figure 43 Charge Injection, QINJ 610 pC typ VS = 18 V, RS = 0 Ω, CL = 1 nF, see Figure 45 Off Isolation −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 33 Channel-to-Channel Crosstalk −90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 34 Total Harmonic Distortion Plus Noise, THD + N 0.001 % typ RL = 10 kΩ, VS = 18 V p-p, f = 20 Hz to 20 kHz, see Figure 38 −3 dB Bandwidth 270 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 37 Insertion Loss −0.75 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 37 CS (Off) 12 pF typ VS = 18 V, f = 1 MHz CD (Off) 11 pF typ VS = 18 V, f = 1 MHz CD (On), CS (On) 23 pF typ VS = 18 V, f = 1 MHz POWER REQUIREMENTS VDD = 39.6 V, VSS = 0 V, digital inputs = 0 V, 5 V, or VDD Normal Mode IDD 0.9 mA typ 1.2 1.3 mA max IGND 0.4 mA typ 0.55 0.6 mA max ISS 0.5 mA typ 0.65 0.7 mA max Fault Mode VS = +55 V, −40 V IDD 1.2 mA typ 1.6 1.8 mA max IGND 0.8 mA typ 1.0 1.1 mA max ISS 0.5 mA typ 1.0 1.8 mA max VDD 8 V min GND = 0 V 44 V max GND = 0 V 1 Guaranteed by design; not subject to production test. Rev. B | Page 10 of 22 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
