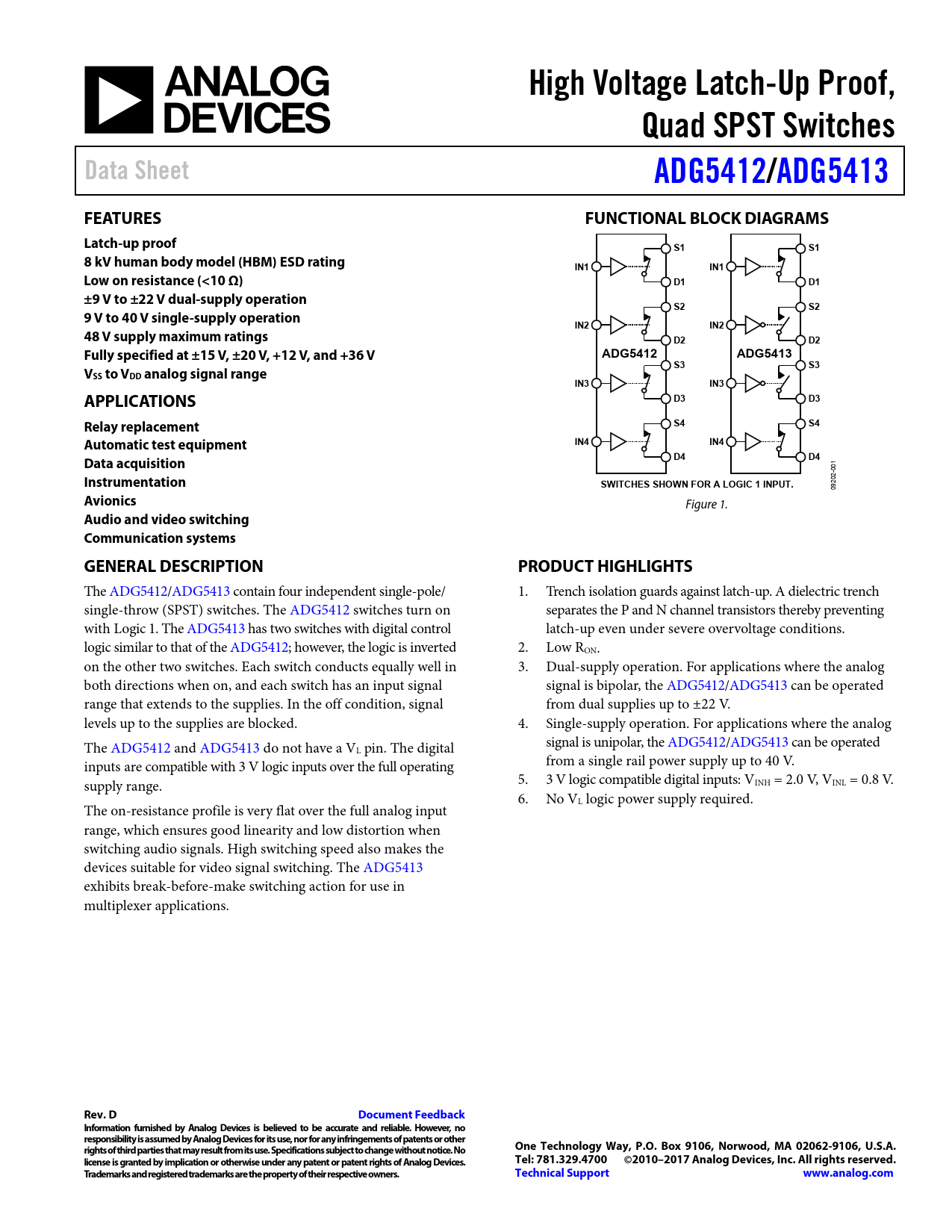

High Voltage Latch-Up Proof,. Quad SPST Switches. Data Sheet. ADG5412/. ADG5413. FEATURES. FUNCTIONAL BLOCK DIAGRAMS. Latch-up proof
Model Line for this Datasheet
Text Version of Document
High Voltage Latch-Up Proof, Quad SPST Switches Data Sheet ADG5412/ ADG5413 FEATURES FUNCTIONAL BLOCK DIAGRAMS Latch-up proof S1 S1 8 kV human body model (HBM) ESD rating IN1 IN1 Low on resistance (<10 Ω) D1 D1 ±9 V to ±22 V dual-supply operation S2 S2 9 V to 40 V single-supply operation IN2 IN2 48 V supply maximum ratings D2 D2 Fully specified at ±15 V, ±20 V, +12 V, and +36 V ADG5412 ADG5413 S3 S3 VSS to VDD analog signal range IN3 IN3 APPLICATIONS D3 D3 Relay replacement S4 S4 Automatic test equipment IN4 IN4 Data acquisition D4 D4
001
Instrumentation SWITCHES SHOWN FOR A LOGIC 1 INPUT.
09202-
Avionics
Figure 1.
Audio and video switching Communication systems GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG5412/ADG5413 contain four independent single-pole/ 1. Trench isolation guards against latch-up. A dielectric trench single-throw (SPST) switches. The ADG5412 switches turn on separates the P and N channel transistors thereby preventing with Logic 1. The ADG5413 has two switches with digital control latch-up even under severe overvoltage conditions. logic similar to that of the ADG5412; however, the logic is inverted 2. Low RON. on the other two switches. Each switch conducts equally wel in 3. Dual-supply operation. For applications where the analog both directions when on, and each switch has an input signal signal is bipolar, the ADG5412/ADG5413 can be operated range that extends to the supplies. In the off condition, signal from dual supplies up to ±22 V. levels up to the supplies are blocked. 4. Single-supply operation. For applications where the analog The ADG5412 and ADG5413 do not have a V signal is unipolar, the ADG5412/ADG5413 can be operated L pin. The digital inputs are compatible with 3 V logic inputs over the full operating from a single rail power supply up to 40 V. supply range. 5. 3 V logic compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V. 6. No VL logic power supply required. The on-resistance profile is very flat over the full analog input range, which ensures good linearity and low distortion when switching audio signals. High switching speed also makes the devices suitable for video signal switching. The ADG5413 exhibits break-before-make switching action for use in multiplexer applications.
