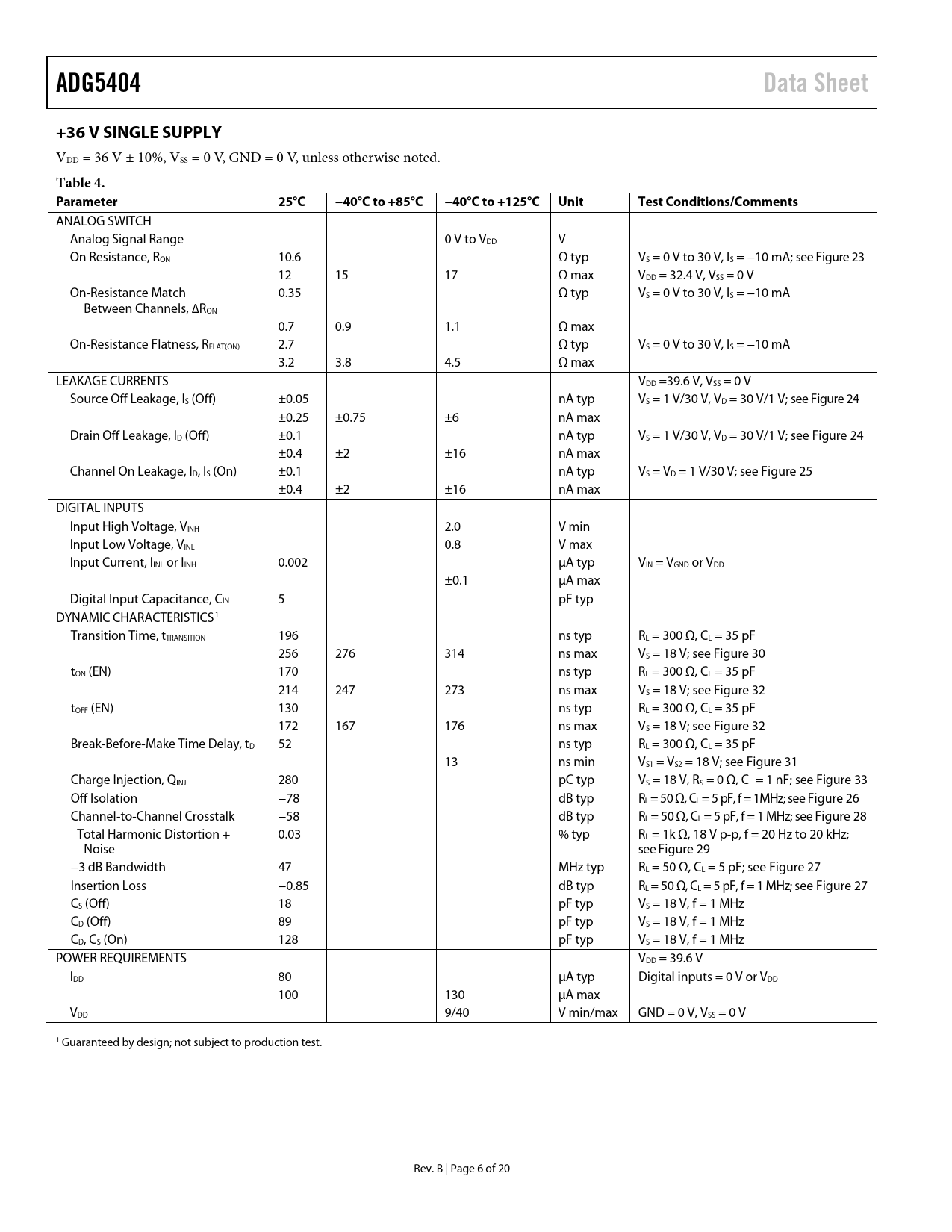

ADG5404 Data Sheet +36 V SINGLE SUPPLY
VDD = 36 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 10.6 Ω typ VS = 0 V to 30 V, IS = −10 mA; see Figure 23 12 15 17 Ω max VDD = 32.4 V, VSS = 0 V On-Resistance Match 0.35 Ω typ VS = 0 V to 30 V, IS = −10 mA Between Channels, ∆RON 0.7 0.9 1.1 Ω max On-Resistance Flatness, RFLAT(ON) 2.7 Ω typ VS = 0 V to 30 V, IS = −10 mA 3.2 3.8 4.5 Ω max LEAKAGE CURRENTS VDD =39.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.05 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 24 ±0.25 ±0.75 ±6 nA max Drain Off Leakage, ID (Off) ±0.1 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 24 ±0.4 ±2 ±16 nA max Channel On Leakage, ID, IS (On) ±0.1 nA typ VS = VD = 1 V/30 V; see Figure 25 ±0.4 ±2 ±16 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 196 ns typ RL = 300 Ω, CL = 35 pF 256 276 314 ns max VS = 18 V; see Figure 30 tON (EN) 170 ns typ RL = 300 Ω, CL = 35 pF 214 247 273 ns max VS = 18 V; see Figure 32 tOFF (EN) 130 ns typ RL = 300 Ω, CL = 35 pF 172 167 176 ns max VS = 18 V; see Figure 32 Break-Before-Make Time Delay, tD 52 ns typ RL = 300 Ω, CL = 35 pF 13 ns min VS1 = VS2 = 18 V; see Figure 31 Charge Injection, QINJ 280 pC typ VS = 18 V, RS = 0 Ω, CL = 1 nF; see Figure 33 Off Isolation −78 dB typ RL = 50 Ω, CL = 5 pF, f = 1MHz; see Figure 26 Channel-to-Channel Crosstalk −58 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 28 Total Harmonic Distortion + 0.03 % typ RL = 1k Ω, 18 V p-p, f = 20 Hz to 20 kHz; Noise see Figure 29 −3 dB Bandwidth 47 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 27 Insertion Loss −0.85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 27 CS (Off) 18 pF typ VS = 18 V, f = 1 MHz CD (Off) 89 pF typ VS = 18 V, f = 1 MHz CD, CS (On) 128 pF typ VS = 18 V, f = 1 MHz POWER REQUIREMENTS VDD = 39.6 V IDD 80 µA typ Digital inputs = 0 V or VDD 100 130 µA max VDD 9/40 V min/max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test. Rev. B | Page 6 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY +12 V SINGLE SUPPLY +36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
