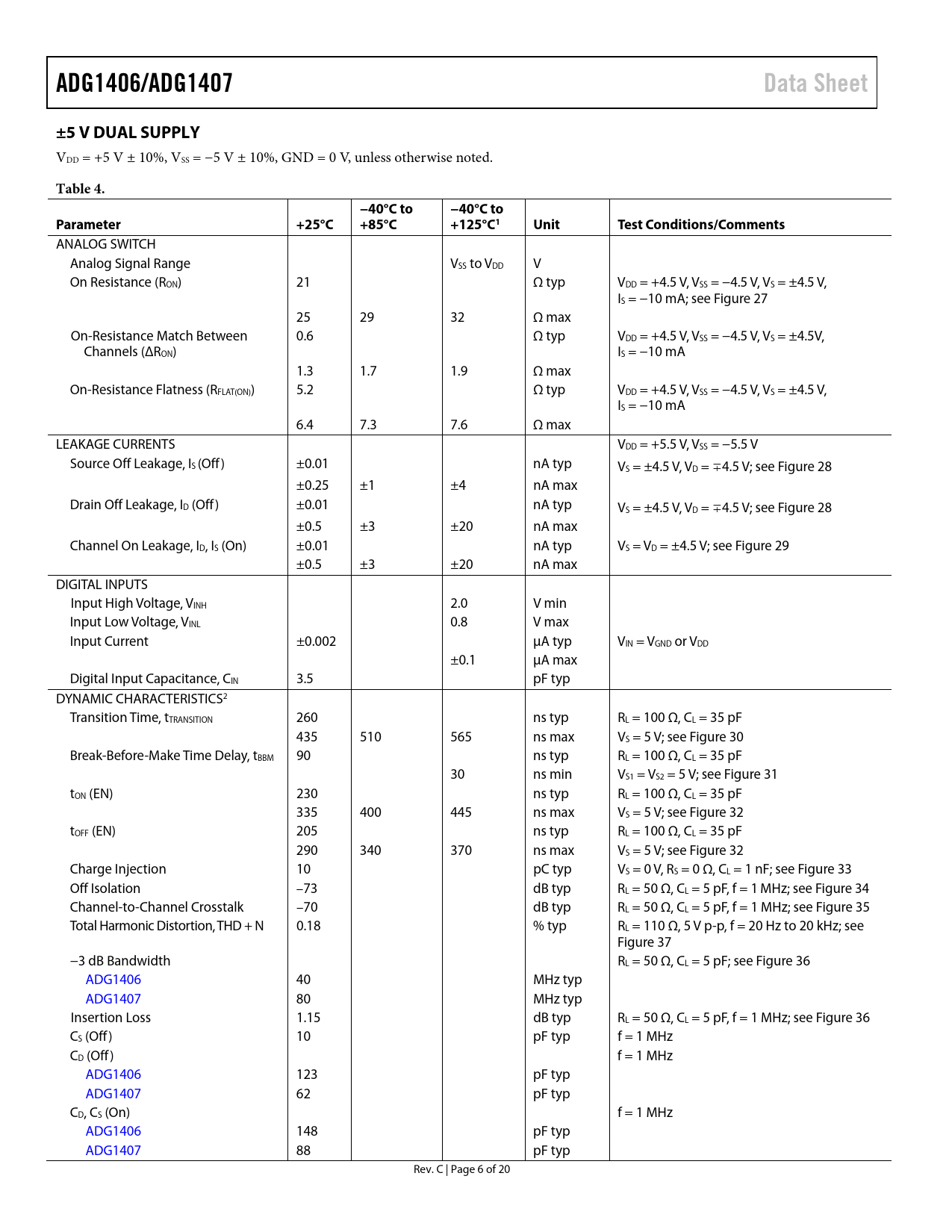

ADG1406/ADG1407 Data Sheet ±5 V DUAL SUPPLY
VDD = +5 V ± 10%, VSS = −5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 4. −40°C to −40°C to Parameter +25°C +85°C +125°C1 Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V On Resistance (RON) 21 Ω typ VDD = +4.5 V, VSS = −4.5 V, VS = ±4.5 V, IS = −10 mA; see Figure 27 25 29 32 Ω max On-Resistance Match Between 0.6 Ω typ VDD = +4.5 V, VSS = −4.5 V, VS = ±4.5V, Channels (ΔRON) IS = −10 mA 1.3 1.7 1.9 Ω max On-Resistance Flatness (RFLAT(ON)) 5.2 Ω typ VDD = +4.5 V, VSS = −4.5 V, VS = ±4.5 V, IS = −10 mA 6.4 7.3 7.6 Ω max LEAKAGE CURRENTS VDD = +5.5 V, VSS = −5.5 V Source Off Leakage, IS (Off ) ±0.01 nA typ VS = ±4.5 V, VD = ∓4.5 V; see Figure 28 ±0.25 ±1 ±4 nA max Drain Off Leakage, ID (Off ) ±0.01 nA typ VS = ±4.5 V, VD = ∓4.5 V; see Figure 28 ±0.5 ±3 ±20 nA max Channel On Leakage, ID, IS (On) ±0.01 nA typ VS = VD = ±4.5 V; see Figure 29 ±0.5 ±3 ±20 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current ±0.002 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 3.5 pF typ DYNAMIC CHARACTERISTICS2 Transition Time, tTRANSITION 260 ns typ RL = 100 Ω, CL = 35 pF 435 510 565 ns max VS = 5 V; see Figure 30 Break-Before-Make Time Delay, tBBM 90 ns typ RL = 100 Ω, CL = 35 pF 30 ns min VS1 = VS2 = 5 V; see Figure 31 tON (EN) 230 ns typ RL = 100 Ω, CL = 35 pF 335 400 445 ns max VS = 5 V; see Figure 32 tOFF (EN) 205 ns typ RL = 100 Ω, CL = 35 pF 290 340 370 ns max VS = 5 V; see Figure 32 Charge Injection 10 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 33 Off Isolation –73 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 34 Channel-to-Channel Crosstalk –70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 35 Total Harmonic Distortion, THD + N 0.18 % typ RL = 110 Ω, 5 V p-p, f = 20 Hz to 20 kHz; see Figure 37 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 36 ADG1406 40 MHz typ ADG1407 80 MHz typ Insertion Loss 1.15 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 36 CS (Off ) 10 pF typ f = 1 MHz CD (Off ) f = 1 MHz ADG1406 123 pF typ ADG1407 62 pF typ CD, CS (On) f = 1 MHz ADG1406 148 pF typ ADG1407 88 pF typ Rev. C | Page 6 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY 12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
