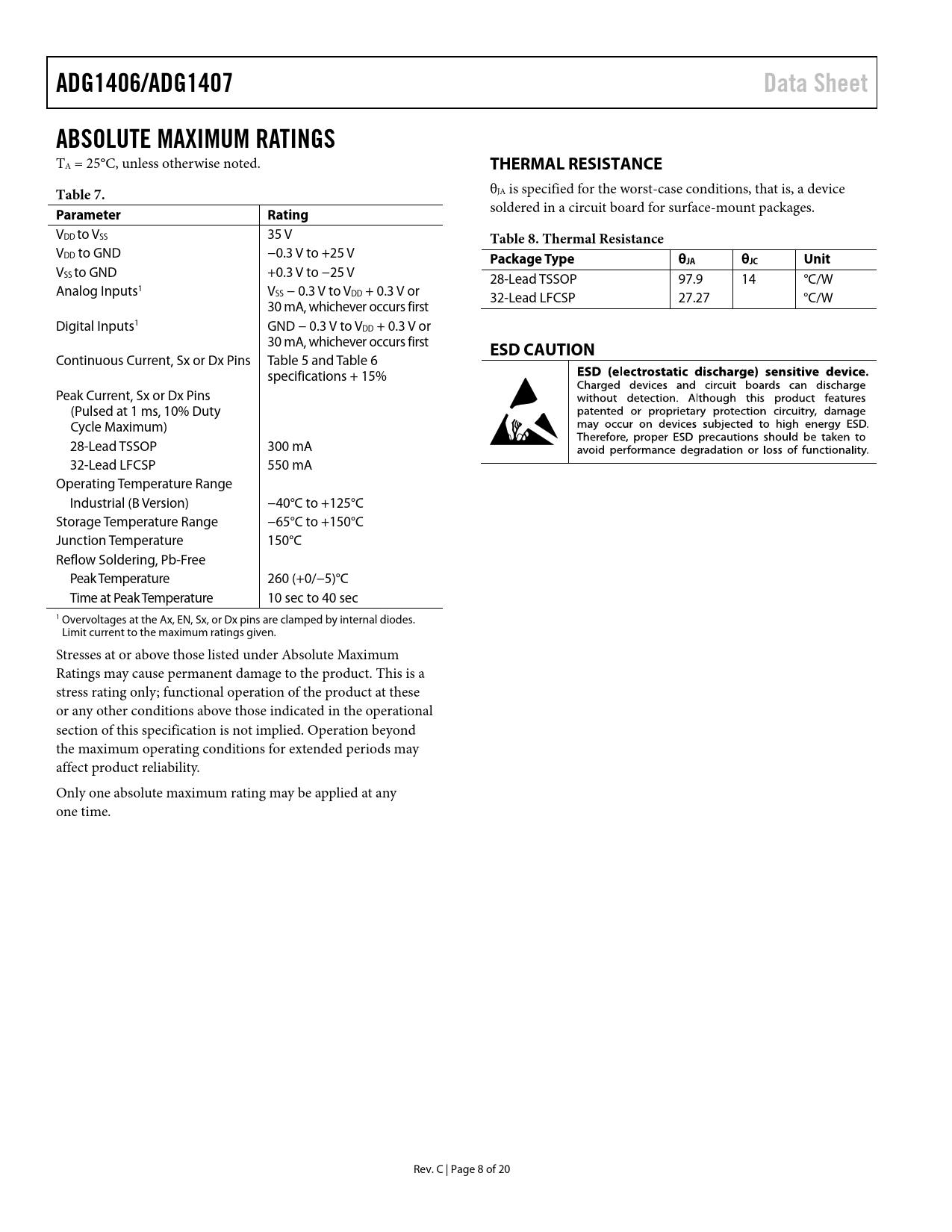

ADG1406/ADG1407 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
THERMAL RESISTANCE Table 7.
θJA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages.
Parameter Rating
VDD to VSS 35 V
Table 8. Thermal Resistance
VDD to GND −0.3 V to +25 V
Package Type θJA θJC Unit
VSS to GND +0.3 V to −25 V 28-Lead TSSOP 97.9 14 °C/W Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or 32-Lead LFCSP 27.27 °C/W 30 mA, whichever occurs first Digital Inputs1 GND − 0.3 V to V DD + 0.3 V or 30 mA, whichever occurs first
ESD CAUTION
Continuous Current, Sx or Dx Pins Table 5 and Table 6 specifications + 15% Peak Current, Sx or Dx Pins (Pulsed at 1 ms, 10% Duty Cycle Maximum) 28-Lead TSSOP 300 mA 32-Lead LFCSP 550 mA Operating Temperature Range Industrial (B Version) −40°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Reflow Soldering, Pb-Free Peak Temperature 260 (+0/−5)°C Time at Peak Temperature 10 sec to 40 sec 1 Overvoltages at the Ax, EN, Sx, or Dx pins are clamped by internal diodes. Limit current to the maximum ratings given. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Only one absolute maximum rating may be applied at any one time. Rev. C | Page 8 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY 12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
