Data Sheet. ADG1206/ADG1207. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document

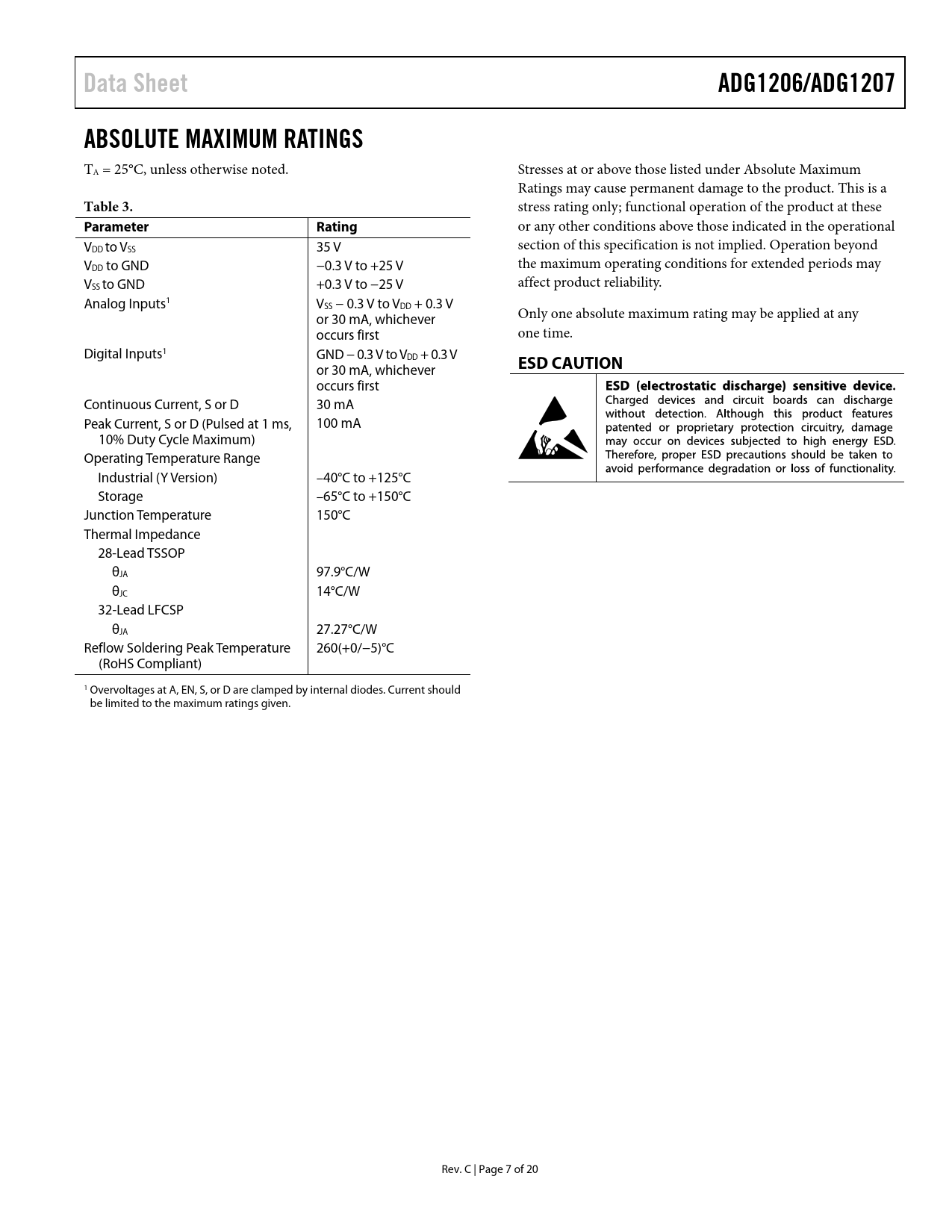

Data Sheet ADG1206/ADG1207 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Table 3.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational VDD to VSS 35 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +25 V the maximum operating conditions for extended periods may V affect product reliability. SS to GND +0.3 V to −25 V Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or 30 mA, whichever Only one absolute maximum rating may be applied at any occurs first one time. Digital Inputs1 GND − 0.3 V to VDD + 0.3 V
ESD CAUTION
or 30 mA, whichever occurs first Continuous Current, S or D 30 mA Peak Current, S or D (Pulsed at 1 ms, 100 mA 10% Duty Cycle Maximum) Operating Temperature Range Industrial (Y Version) –40°C to +125°C Storage –65°C to +150°C Junction Temperature 150°C Thermal Impedance 28-Lead TSSOP θJA 97.9°C/W θJC 14°C/W 32-Lead LFCSP θJA 27.27°C/W Reflow Soldering Peak Temperature 260(+0/−5)°C (RoHS Compliant) 1 Overvoltages at A, EN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. C | Page 7 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
