Datasheet ADG611, ADG612, ADG613 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 1 pC Charge Injection, 100 pA Leakage, CMOS, ±5 V/+5 V/+3 V, Quad SPST Switches |
| Pages / Page | 16 / 7 — ADG611/ADG612/ADG613. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. IN1 1. … |
| Revision | A |
| File Format / Size | PDF / 364 Kb |
| Document Language | English |

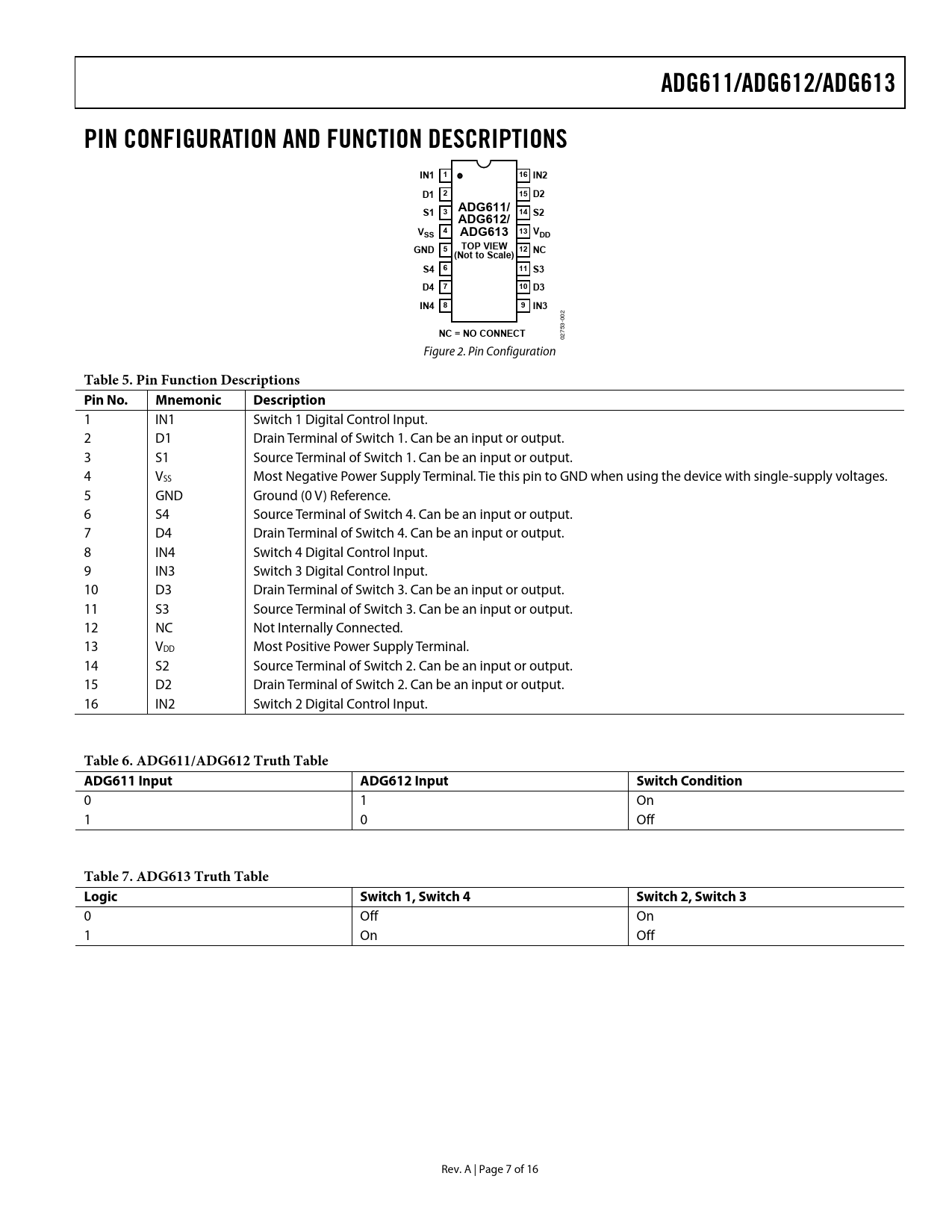

ADG611/ADG612/ADG613. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. IN1 1. 16 IN2. D1 2. 15 D2. ADG611/. S1 3. ADG612/. VSS. ADG613 13 VDD
Model Line for this Datasheet
Text Version of Document
ADG611/ADG612/ADG613 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS IN1 1 16 IN2 D1 2 15 D2 ADG611/ S1 3 14 ADG612/ S2 4 VSS ADG613 13 VDD TOP VIEW GND 5 12 NC (Not to Scale) 6 S4 11 S3 D4 7 10 D3 IN4 8 9 IN3
2 -00 53
NC = NO CONNECT
27 0 Figure 2. Pin Configuration
Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1 IN1 Switch 1 Digital Control Input. 2 D1 Drain Terminal of Switch 1. Can be an input or output. 3 S1 Source Terminal of Switch 1. Can be an input or output. 4 VSS Most Negative Power Supply Terminal. Tie this pin to GND when using the device with single-supply voltages. 5 GND Ground (0 V) Reference. 6 S4 Source Terminal of Switch 4. Can be an input or output. 7 D4 Drain Terminal of Switch 4. Can be an input or output. 8 IN4 Switch 4 Digital Control Input. 9 IN3 Switch 3 Digital Control Input. 10 D3 Drain Terminal of Switch 3. Can be an input or output. 11 S3 Source Terminal of Switch 3. Can be an input or output. 12 NC Not Internally Connected. 13 VDD Most Positive Power Supply Terminal. 14 S2 Source Terminal of Switch 2. Can be an input or output. 15 D2 Drain Terminal of Switch 2. Can be an input or output. 16 IN2 Switch 2 Digital Control Input.
Table 6. ADG611/ADG612 Truth Table ADG611 Input ADG612 Input Switch Condition
0 1 On 1 0 Off
Table 7. ADG613 Truth Table Logic Switch 1, Switch 4 Switch 2, Switch 3
0 Off On 1 On Off Rev. A | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL-SUPPLY OPERATION SINGLE-SUPPLY OPERATION ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
