DescriptionCMOS, ±5 V/+5 V, 4 Ω, Single SPDT Switch
Pages / Page12 / 1 — CMOS, ±5 V/+5 V,. 4 Ω, Single SPDT Switch. ADG619-EP. FEATURES. …
File Format / SizePDF / 226 Kb
Document LanguageEnglish

CMOS, ±5 V/+5 V,. 4 Ω, Single SPDT Switch. ADG619-EP. FEATURES. FUNCTIONAL BLOCK DIAGRAM. 14 Ω (maximum) on resistance

Datasheet ADG619-EP Analog Devices

Model Line for this Datasheet

Text Version of Document

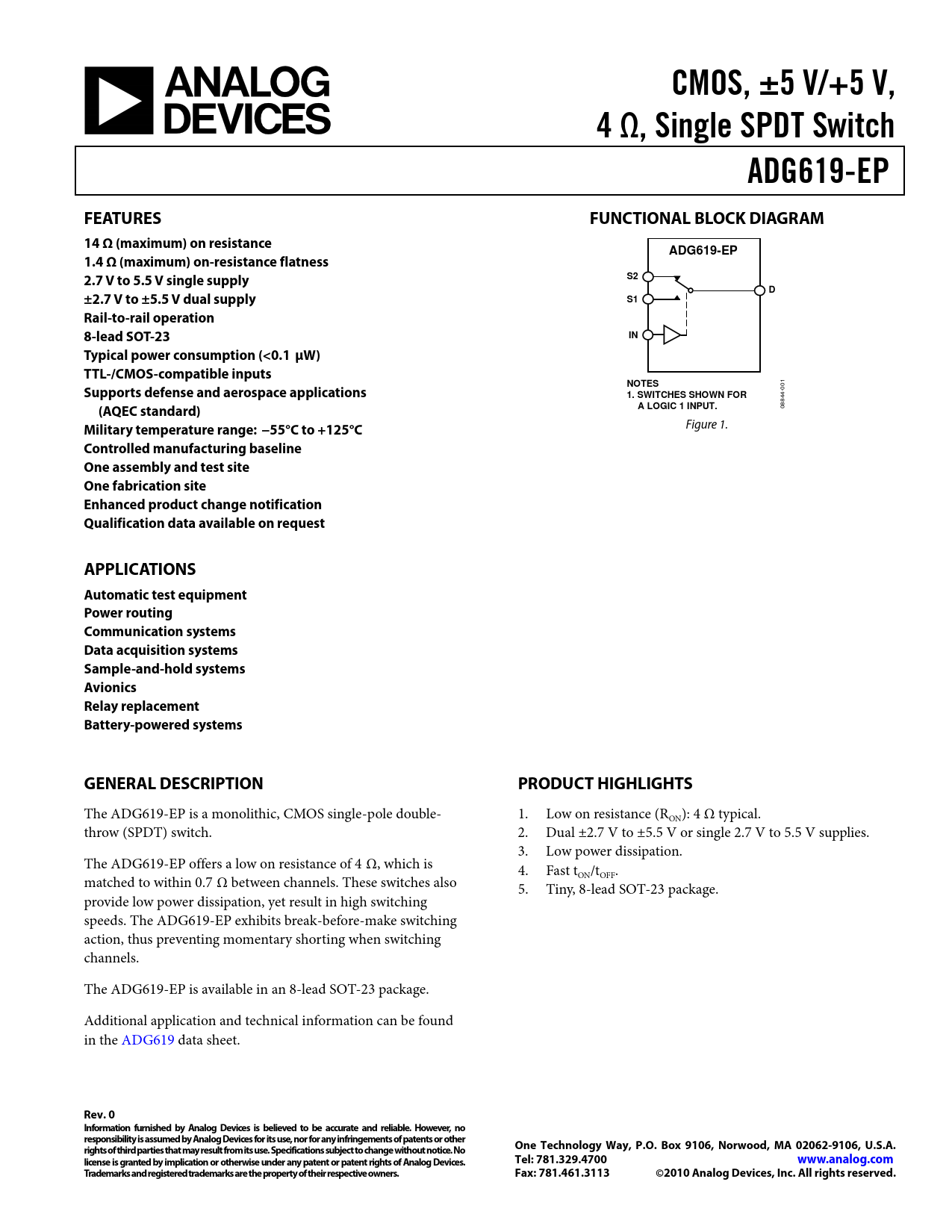

CMOS, ±5 V/+5 V, 4 Ω, Single SPDT Switch ADG619-EP FEATURES FUNCTIONAL BLOCK DIAGRAM 14 Ω (maximum) on resistance ADG619-EP 1.4 Ω (maximum) on-resistance flatness 2.7 V to 5.5 V single supply S2 D ±2.7 V to ±5.5 V dual supply S1 Rail-to-rail operation 8-lead SOT-23 IN Typical power consumption (<0.1 μW) TTL-/CMOS-compatible inputs NOTES Supports defense and aerospace applications
001
1. SWITCHES SHOWN FOR (AQEC standard) A LOGIC 1 INPUT.
08844-
Military temperature range: −55°C to +125°C
Figure 1.
Controlled manufacturing baseline One assembly and test site One fabrication site Enhanced product change notification Qualification data available on request APPLICATIONS Automatic test equipment Power routing Communication systems Data acquisition systems Sample-and-hold systems Avionics Relay replacement Battery-powered systems GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG619-EP is a monolithic, CMOS single-pole double- 1. Low on resistance (RON): 4 Ω typical. throw (SPDT) switch. 2. Dual ±2.7 V to ±5.5 V or single 2.7 V to 5.5 V supplies. 3. Low power dissipation. The ADG619-EP offers a low on resistance of 4 Ω, which is 4. Fast t matched to within 0.7 Ω between channels. These switches also ON/tOFF. 5. Tiny, 8-lead SOT-23 package. provide low power dissipation, yet result in high switching speeds. The ADG619-EP exhibits break-before-make switching action, thus preventing momentary shorting when switching channels. The ADG619-EP is available in an 8-lead SOT-23 package. Additional application and technical information can be found in the ADG619 data sheet.
Rev. 0 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2010 Analog Devices, Inc. All rights reserved.
Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide
