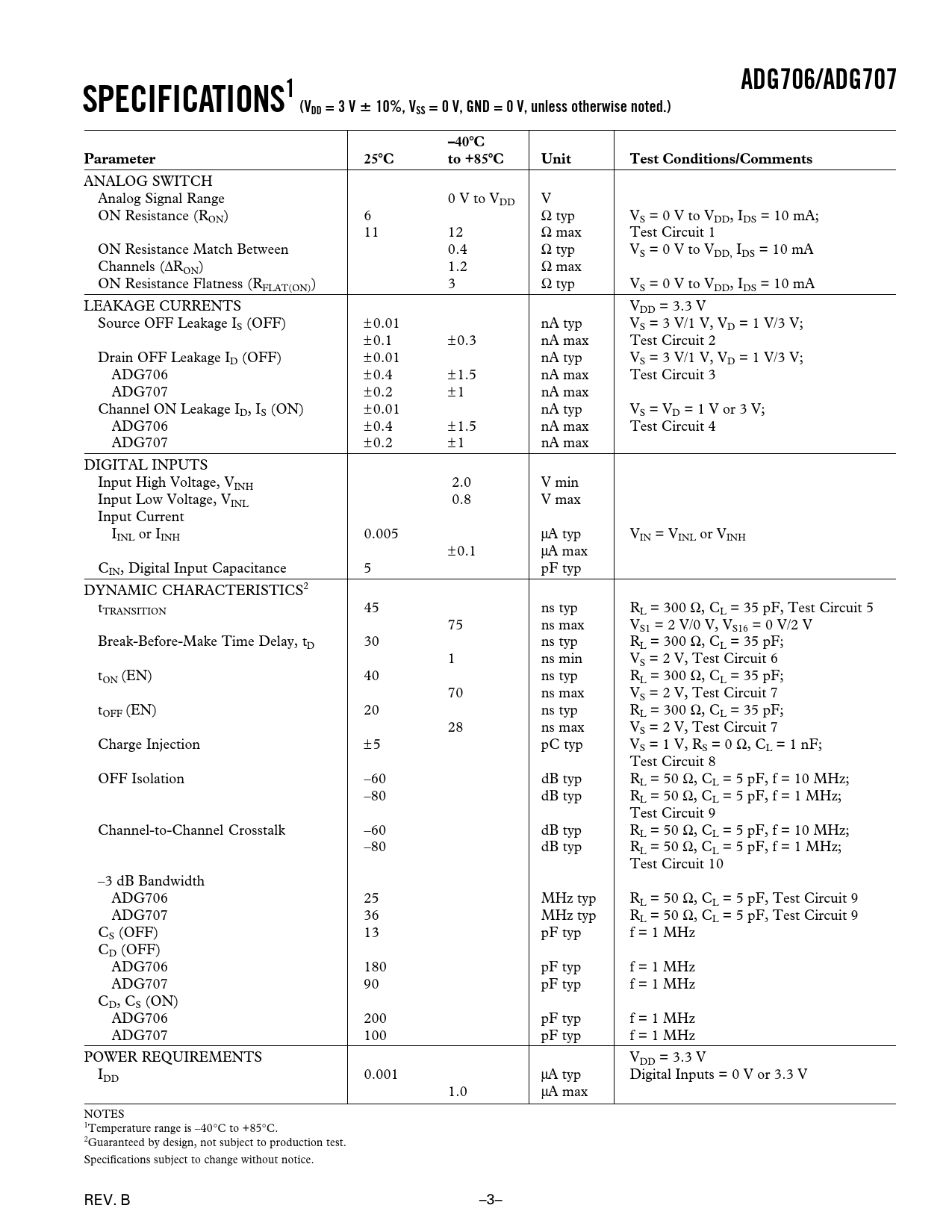

ADG706/ADG707. SPECIFICATIONS1 (VDD = 3 V. 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.). –40. Parameter. to +85. Unit
Model Line for this Datasheet
Text Version of Document
ADG706/ADG707 SPECIFICATIONS1 (VDD = 3 V
ⴞ
10%, VSS = 0 V, GND = 0 V, unless otherwise noted.) –40
ⴗ
C Parameter 25
ⴗ
C to +85
ⴗ
C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V ON Resistance (RON) 6 Ω typ VS = 0 V to VDD, IDS = 10 mA; 11 12 Ω max Test Circuit 1 ON Resistance Match Between 0.4 Ω typ VS = 0 V to VDD, IDS = 10 mA Channels (∆RON) 1.2 Ω max ON Resistance Flatness (RFLAT(ON)) 3 Ω typ VS = 0 V to VDD, IDS = 10 mA LEAKAGE CURRENTS VDD = 3.3 V Source OFF Leakage IS (OFF) ±0.01 nA typ VS = 3 V/1 V, VD = 1 V/3 V; ±0.1 ±0.3 nA max Test Circuit 2 Drain OFF Leakage ID (OFF) ±0.01 nA typ VS = 3 V/1 V, VD = 1 V/3 V; ADG706 ±0.4 ±1.5 nA max Test Circuit 3 ADG707 ±0.2 ±1 nA max Channel ON Leakage ID, IS (ON) ±0.01 nA typ VS = VD = 1 V or 3 V; ADG706 ±0.4 ±1.5 nA max Test Circuit 4 ADG707 ±0.2 ±1 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH 0.005 µA typ VIN = VINL or VINH ±0.1 µA max CIN, Digital Input Capacitance 5 pF typ DYNAMIC CHARACTERISTICS2 tTRANSITION 45 ns typ RL = 300 Ω, CL = 35 pF, Test Circuit 5 75 ns max VS1 = 2 V/0 V, VS16 = 0 V/2 V Break-Before-Make Time Delay, tD 30 ns typ RL = 300 Ω, CL = 35 pF; 1 ns min VS = 2 V, Test Circuit 6 tON (EN) 40 ns typ RL = 300 Ω, CL = 35 pF; 70 ns max VS = 2 V, Test Circuit 7 tOFF (EN) 20 ns typ RL = 300 Ω, CL = 35 pF; 28 ns max VS = 2 V, Test Circuit 7 Charge Injection ±5 pC typ VS = 1 V, RS = 0 Ω, CL = 1 nF; Test Circuit 8 OFF Isolation –60 dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz; –80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; Test Circuit 9 Channel-to-Channel Crosstalk –60 dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz; –80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; Test Circuit 10 –3 dB Bandwidth ADG706 25 MHz typ RL = 50 Ω, CL = 5 pF, Test Circuit 9 ADG707 36 MHz typ RL = 50 Ω, CL = 5 pF, Test Circuit 9 CS (OFF) 13 pF typ f = 1 MHz CD (OFF) ADG706 180 pF typ f = 1 MHz ADG707 90 pF typ f = 1 MHz CD, CS (ON) ADG706 200 pF typ f = 1 MHz ADG707 100 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 3.3 V IDD 0.001 µA typ Digital Inputs = 0 V or 3.3 V 1.0 µA max NOTES 1Temperature range is –40°C to +85°C. 2Guaranteed by design, not subject to production test. Specifications subject to change without notice. REV. B –3–
