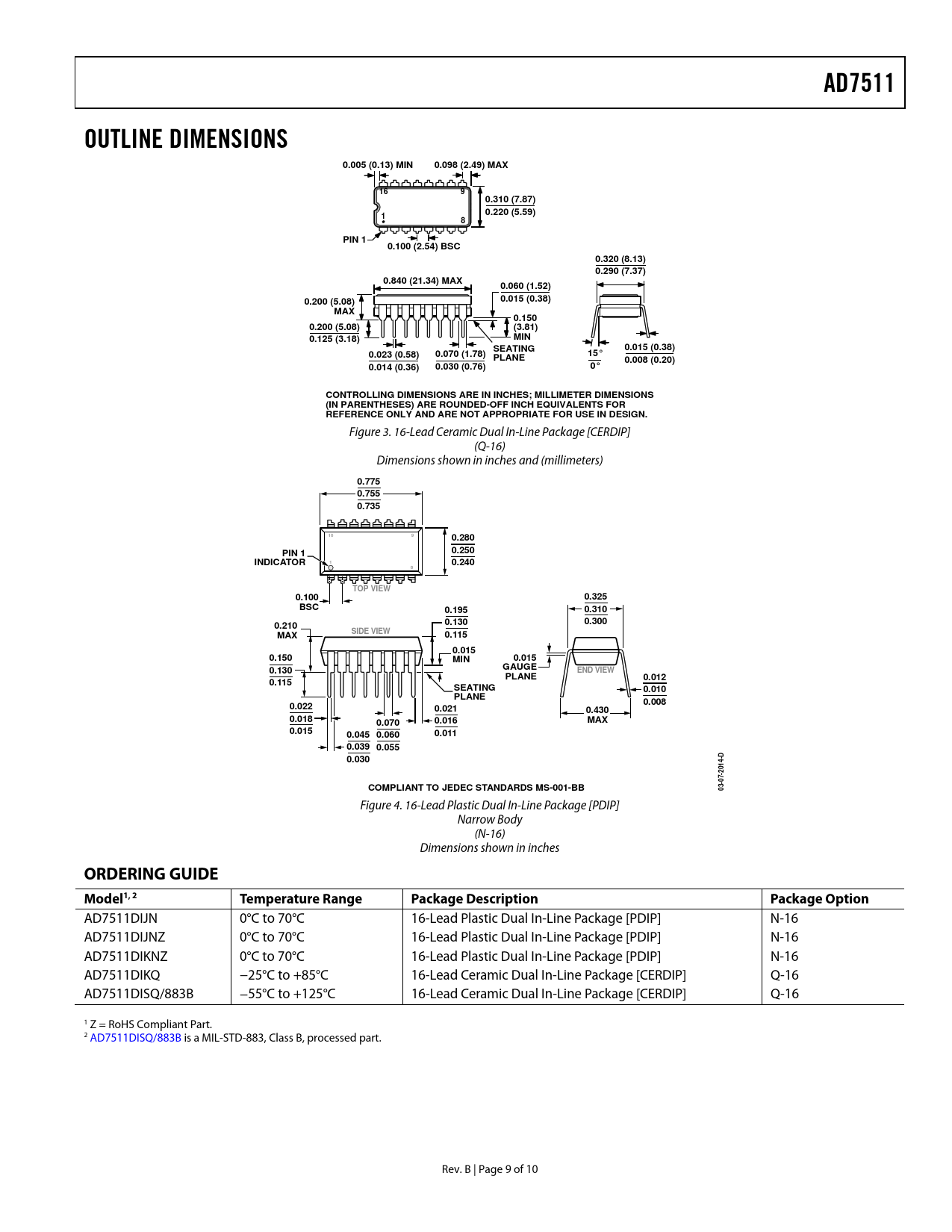

AD7511. OUTLINE DIMENSIONS. 0.005 (0.13) MIN. 0.098 (2.49) MAX. 0.310 (7.87) 0.220 (5.59). PIN 1. 0.100 (2.54) BSC

AD7511 OUTLINE DIMENSIONS 0.005 (0.13) MIN 0.098 (2.49) MAX 0.310 (7.87) 0.220 (5.59) PIN 1 0.100 (2.54) BSC

Model Line for this Datasheet

Text Version of Document

AD7511 OUTLINE DIMENSIONS 0.005 (0.13) MIN 0.098 (2.49) MAX 16 9 0.310 (7.87) 0.220 (5.59) 1 8 PIN 1 0.100 (2.54) BSC 0.320 (8.13) 0.290 (7.37) 0.840 (21.34) MAX 0.060 (1.52) 0.200 (5.08) 0.015 (0.38) MAX 0.150 0.200 (5.08) (3.81) 0.125 (3.18) MIN SEATING 0.015 (0.38) 0.023 (0.58) 0.070 (1.78) 15° PLANE 0.008 (0.20) 0.014 (0.36) 0.030 (0.76) CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS (IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.
Figure 3. 16-Lead Ceramic Dual In-Line Package [CERDIP] (Q-16) Dimensions shown in inches and (millimeters)
0.775 0.755 0.735 16 9 0.280 0.250 PIN 1 1 INDICATOR 0.240 8 TOP VIEW 0.100 0.325 BSC 0.195 0.310 0.130 0.210 0.300 MAX SIDE VIEW 0.115 0.015 0.150 MIN 0.015 0.130 GAUGE END VIEW PLANE 0.012 0.115 SEATING 0.010 PLANE 0.008 0.022 0.021 0.430 0.018 0.070 0.016 MAX 0.015 0.045 0.060 0.011 0.039 0.055 D 0.030 14- -20 07 COMPLIANT TO JEDEC STANDARDS MS-001-BB 3- 0
Figure 4. 16-Lead Plastic Dual In-Line Package [PDIP] Narrow Body (N-16) Dimensions shown in inches
ORDERING GUIDE Model1, 2 Temperature Range Package Description Package Option
AD7511DIJN 0°C to 70°C 16-Lead Plastic Dual In-Line Package [PDIP] N-16 AD7511DIJNZ 0°C to 70°C 16-Lead Plastic Dual In-Line Package [PDIP] N-16 AD7511DIKNZ 0°C to 70°C 16-Lead Plastic Dual In-Line Package [PDIP] N-16 AD7511DIKQ −25°C to +85°C 16-Lead Ceramic Dual In-Line Package [CERDIP] Q-16 AD7511DISQ/883B −55°C to +125°C 16-Lead Ceramic Dual In-Line Package [CERDIP] Q-16 1 Z = RoHS Compliant Part. 2 AD7511DISQ/883B is a MIL-STD-883, Class B, processed part. Rev. B | Page 9 of 10
