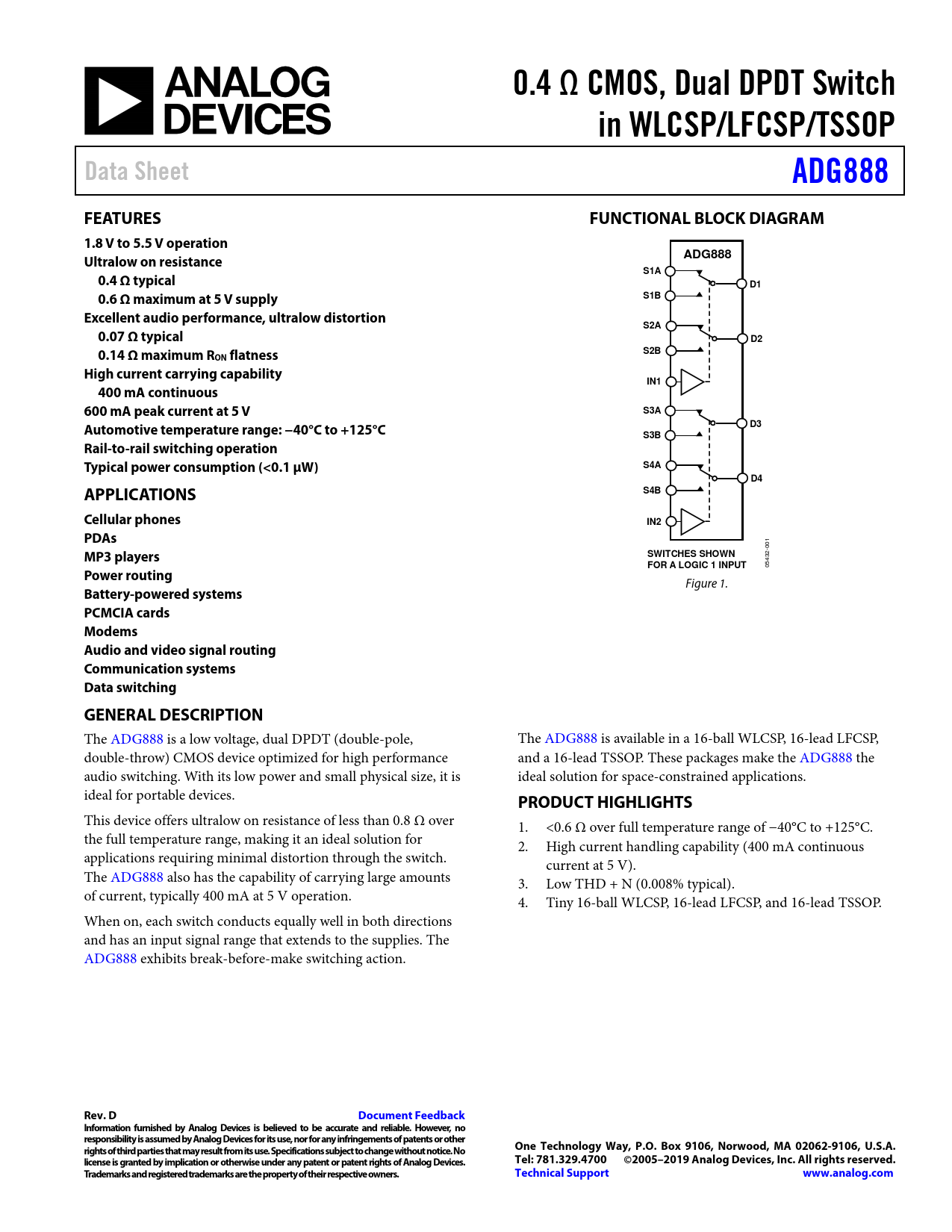

0.4 Ω CMOS, Dual DPDT Switch. in WLCSP/LFCSP/TSSOP. Data Sheet. ADG888. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
0.4 Ω CMOS, Dual DPDT Switch in WLCSP/LFCSP/TSSOP Data Sheet ADG888 FEATURES FUNCTIONAL BLOCK DIAGRAM 1.8 V to 5.5 V operation ADG888 Ultralow on resistance S1A 0.4 Ω typical D1 0.6 Ω maximum at 5 V supply S1B Excellent audio performance, ultralow distortion S2A 0.07 Ω typical D2 0.14 Ω maximum R S2B ON flatness High current carrying capability IN1 400 mA continuous 600 mA peak current at 5 V S3A D3 Automotive temperature range: −40°C to +125°C S3B Rail-to-rail switching operation Typical power consumption (<0.1 μW) S4A D4 APPLICATIONS S4B Cellular phones IN2 PDAs
01 0
MP3 players
2-
SWITCHES SHOWN
43
FOR A LOGIC 1 INPUT
05
Power routing
Figure 1.
Battery-powered systems PCMCIA cards Modems Audio and video signal routing Communication systems Data switching GENERAL DESCRIPTION
The ADG888 is a low voltage, dual DPDT (double-pole, The ADG888 is available in a 16-ball WLCSP, 16-lead LFCSP, double-throw) CMOS device optimized for high performance and a 16-lead TSSOP. These packages make the ADG888 the audio switching. With its low power and small physical size, it is ideal solution for space-constrained applications. ideal for portable devices.
PRODUCT HIGHLIGHTS
This device offers ultralow on resistance of less than 0.8 Ω over 1. <0.6 Ω over full temperature range of −40°C to +125°C. the full temperature range, making it an ideal solution for 2. High current handling capability (400 mA continuous applications requiring minimal distortion through the switch. current at 5 V). The ADG888 also has the capability of carrying large amounts 3. Low THD + N (0.008% typical). of current, typically 400 mA at 5 V operation. 4. Tiny 16-ball WLCSP, 16-lead LFCSP, and 16-lead TSSOP. When on, each switch conducts equally well in both directions and has an input signal range that extends to the supplies. The ADG888 exhibits break-before-make switching action.
