Mechanical Dimensions, Continued. Side Emitting
Model Line for this Datasheet
Text Version of Document

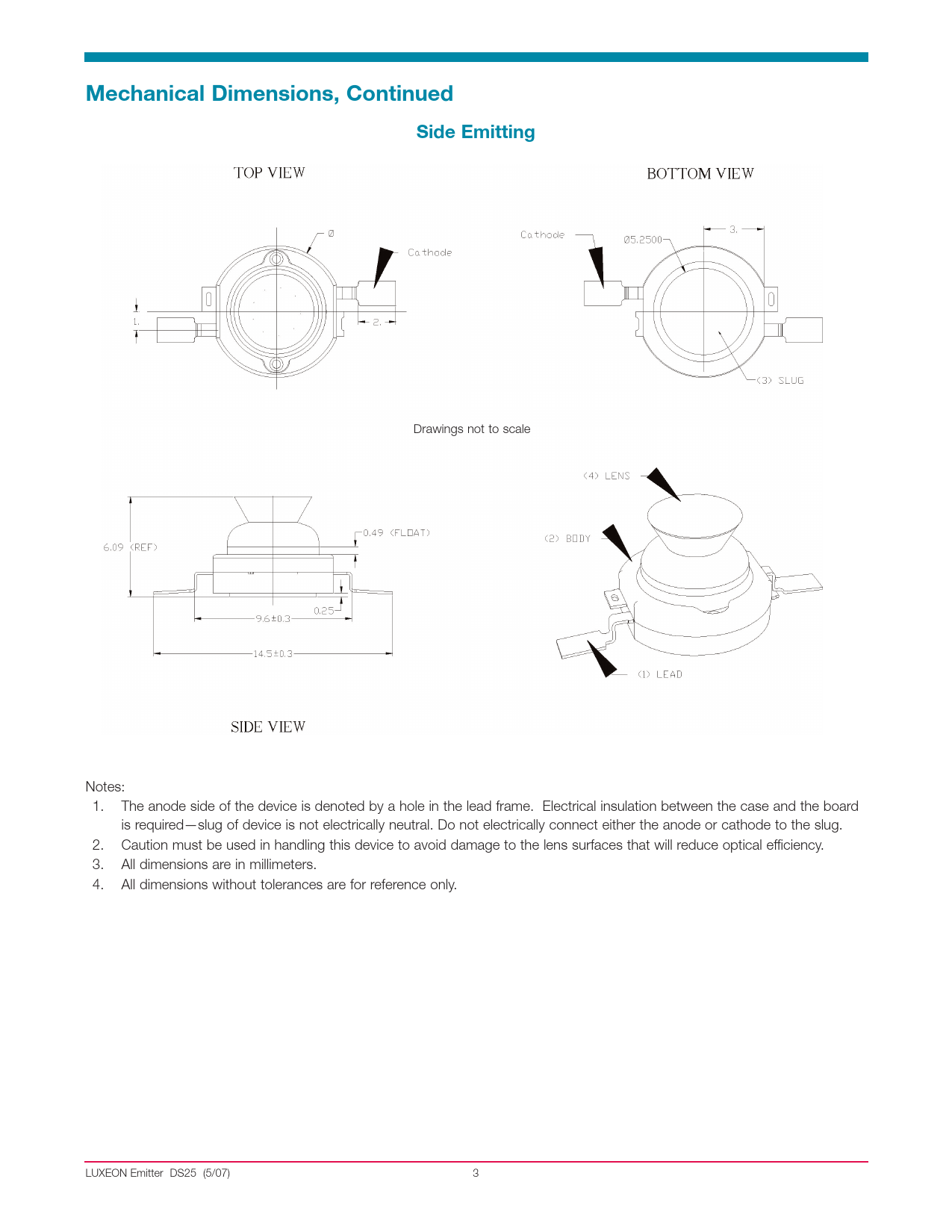

Mechanical Dimensions, Continued Side Emitting
Drawings not to scale Notes: 1. The anode side of the device is denoted by a hole in the lead frame. Electrical insulation between the case and the board is required—slug of device is not electrically neutral. Do not electrically connect either the anode or cathode to the slug. 2. Caution must be used in handling this device to avoid damage to the lens surfaces that will reduce optical efficiency. 3. All dimensions are in millimeters. 4. All dimensions without tolerances are for reference only. LUXEON Emitter DS25 (5/07) 3
Drawings not to scale Notes: 1. The anode side of the device is denoted by a hole in the lead frame. Electrical insulation between the case and the board is required—slug of device is not electrically neutral. Do not electrically connect either the anode or cathode to the slug. 2. Caution must be used in handling this device to avoid damage to the lens surfaces that will reduce optical efficiency. 3. All dimensions are in millimeters. 4. All dimensions without tolerances are for reference only. LUXEON Emitter DS25 (5/07) 3
