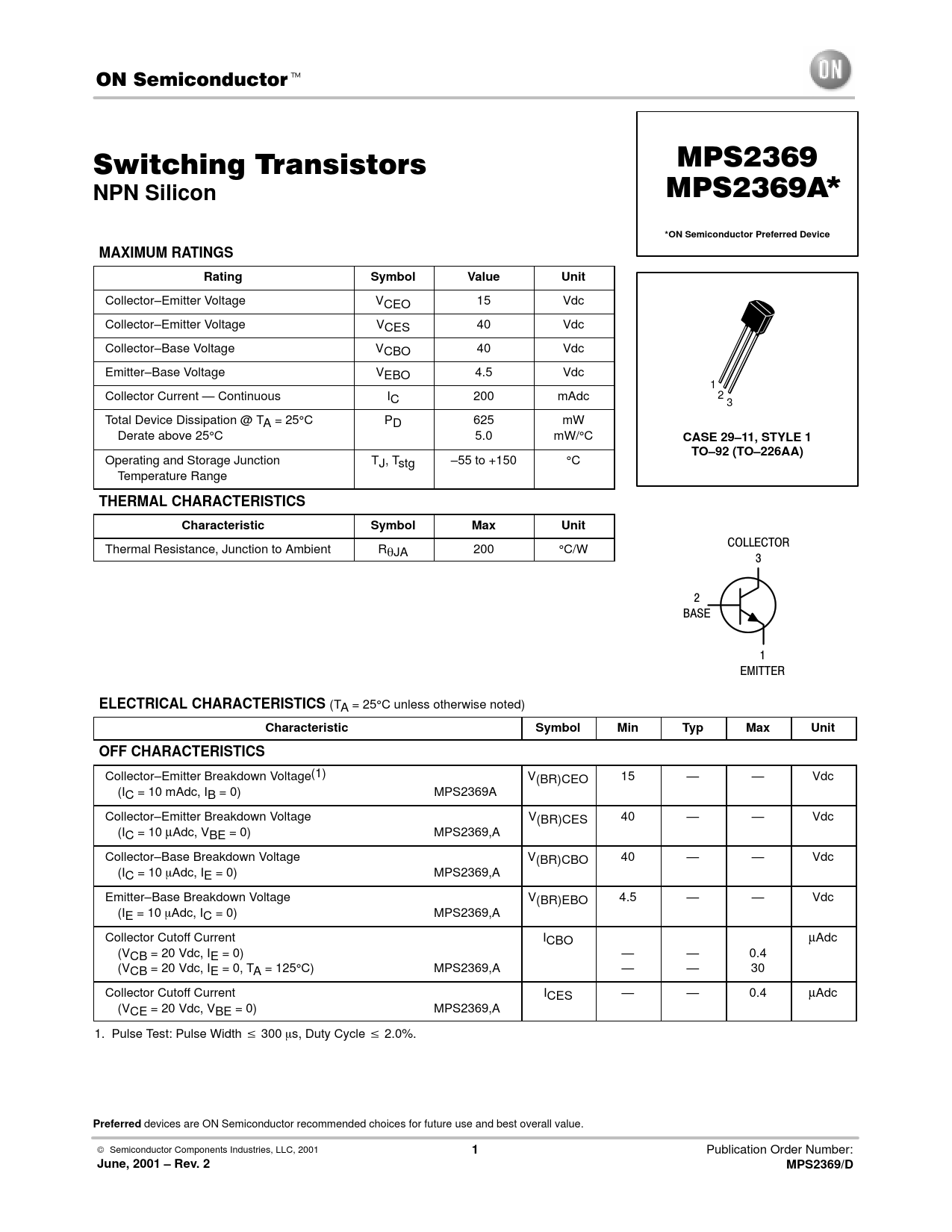

NPN Silicon. *ON Semiconductor Preferred Device. MAXIMUM RATINGS. Rating. Symbol. Value. Unit. CASE 29–11, STYLE 1. TO–92 (TO–226AA)
Model Line for this Datasheet
Text Version of Document
ON Semiconductor Switching Transistors MPS2369
NPN Silicon
MPS2369A*
*ON Semiconductor Preferred Device MAXIMUM RATINGS Rating Symbol Value Unit
Collector–Emitter Voltage VCEO 15 Vdc Collector–Emitter Voltage VCES 40 Vdc Collector–Base Voltage VCBO 40 Vdc Emitter–Base Voltage VEBO 4.5 Vdc 1 Collector Current — Continuous IC 200 mAdc 2 3 Total Device Dissipation @ TA = 25°C PD 625 mW Derate above 25°C 5.0 mW/°C
CASE 29–11, STYLE 1 TO–92 (TO–226AA)
Operating and Storage Junction TJ, Tstg –55 to +150 °C Temperature Range
THERMAL CHARACTERISTICS Characteristic Symbol Max Unit
COLLECTOR Thermal Resistance, Junction to Ambient RJA 200 °C/W 3 2 BASE 1 EMITTER
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)
Characteristic Symbol Min Typ Max Unit OFF CHARACTERISTICS
Collector–Emitter Breakdown Voltage(1) V(BR)CEO 15 — — Vdc (IC = 10 mAdc, IB = 0) MPS2369A Collector–Emitter Breakdown Voltage V(BR)CES 40 — — Vdc (IC = 10 µAdc, VBE = 0) MPS2369,A Collector–Base Breakdown Voltage V(BR)CBO 40 — — Vdc (IC = 10 Adc, IE = 0) MPS2369,A Emitter–Base Breakdown Voltage V(BR)EBO 4.5 — — Vdc (IE = 10 Adc, IC = 0) MPS2369,A Collector Cutoff Current ICBO µAdc (VCB = 20 Vdc, IE = 0) — — 0.4 (VCB = 20 Vdc, IE = 0, TA = 125°C) MPS2369,A — — 30 Collector Cutoff Current ICES — — 0.4 µAdc (VCE = 20 Vdc, VBE = 0) MPS2369,A 1. Pulse Test: Pulse Width 300 s, Duty Cycle 2.0%.
