BlueNRG-LPS Functional overview 1 Functional overview 1.1 System architecture
The main system consists of 32-bit multilayer AHB bus matrix that interconnects: • Three masters: – CPU (Cortex®-M0+) core S-bus – DMA1 – Radio system • Seven slaves: – Internal Flash memory on CPU (Cortex®-M0+) S bus – Internal SRAM0 (12 kB) – Internal SRAM1 (12 kB) – APB0 peripherals (through an AHB to APB bridge) – APB1 peripherals (through an AHB to APB bridge) – AHB0 peripherals – AHBRF including AHB to APB bridge and radio peripherals (connected to APB2) The bus matrix provides access from a master to a slave, enabling concurrent access and efficient operation even when several high-speed peripherals work simultaneously.

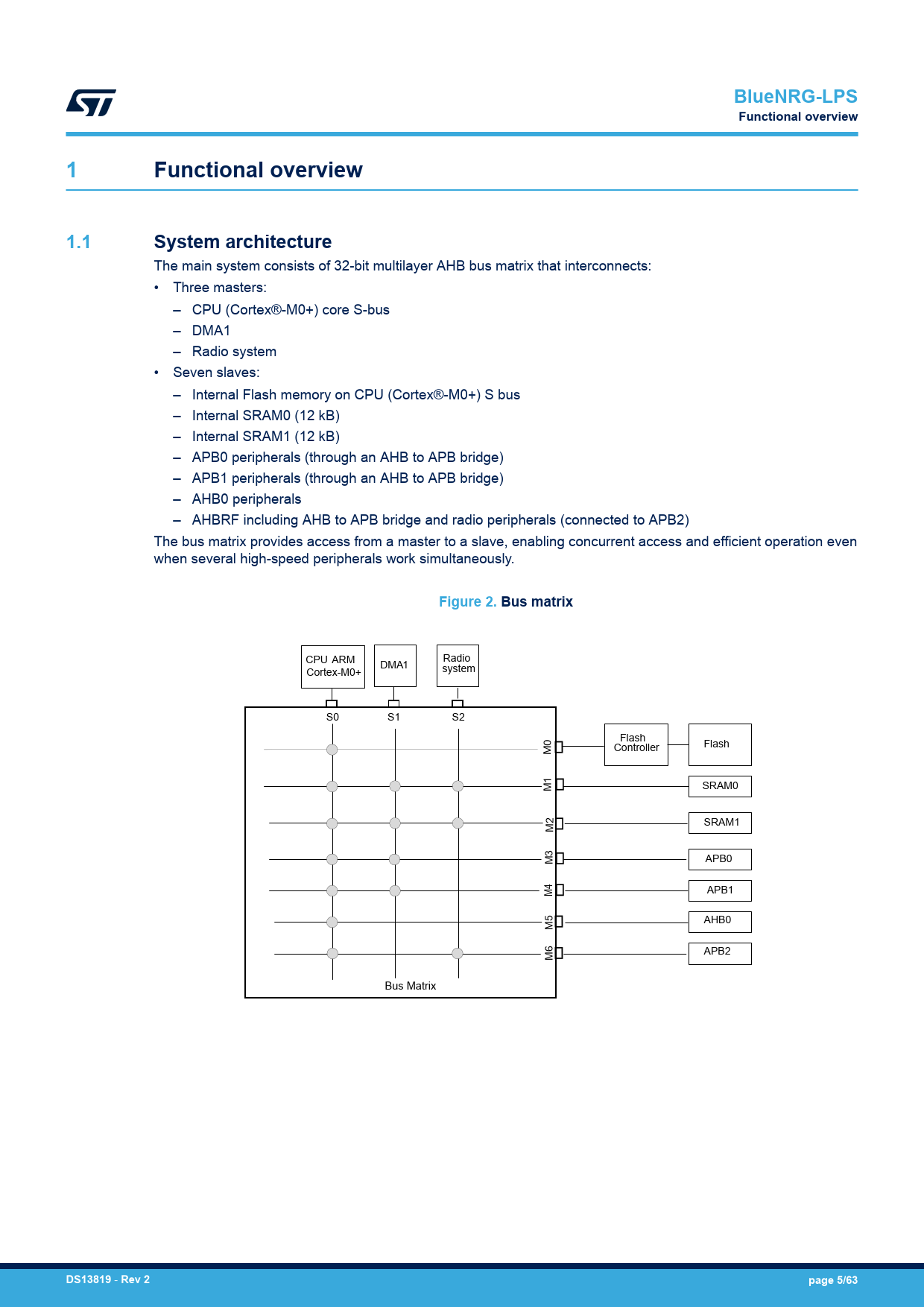

Figure 2. Bus matrix
CPU ARM Radio DMA 1 Cortex-M0+ system S0 S1 S2 Flash Flash M0 Controller M1 SRAM0 SRAM1 M2 APB0 M3 APB1 M4 AHB0 M5 APB2 M6 Bus Matrix
DS13819
-
Rev 2 page 5/63
