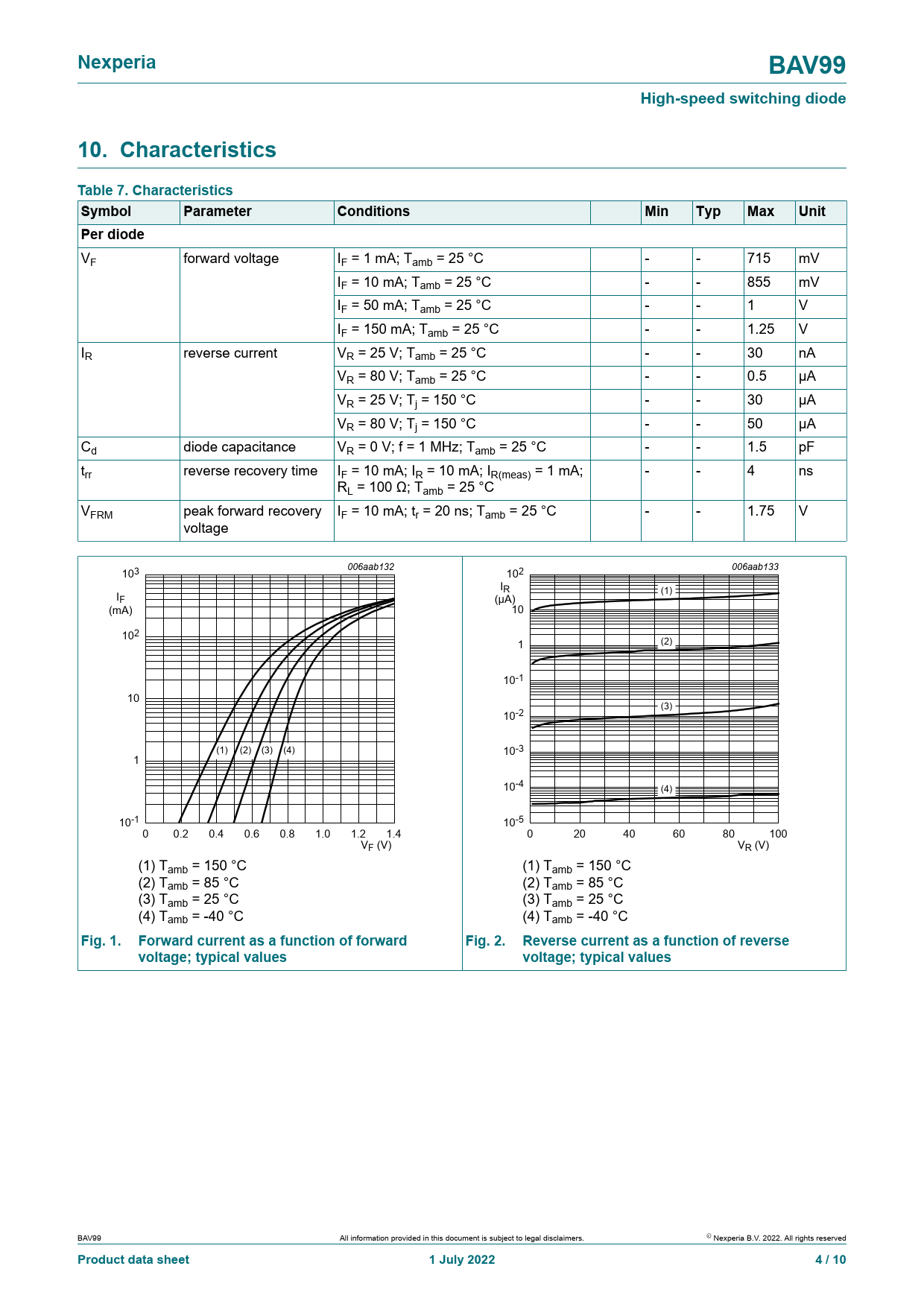

Nexperia. BAV99. High-speed switching diode. 10. Characteristics Table 7. Characteristics. Symbol. Parameter. Conditions. Min. Typ. Max
Model Line for this Datasheet
Text Version of Document
Nexperia BAV99 High-speed switching diode 10. Characteristics Table 7. Characteristics Symbol Parameter Conditions Min Typ Max Unit Per diode
VF forward voltage IF = 1 mA; Tamb = 25 °C - - 715 mV IF = 10 mA; Tamb = 25 °C - - 855 mV IF = 50 mA; Tamb = 25 °C - - 1 V IF = 150 mA; Tamb = 25 °C - - 1.25 V IR reverse current VR = 25 V; Tamb = 25 °C - - 30 nA VR = 80 V; Tamb = 25 °C - - 0.5 µA VR = 25 V; Tj = 150 °C - - 30 µA VR = 80 V; Tj = 150 °C - - 50 µA Cd diode capacitance VR = 0 V; f = 1 MHz; Tamb = 25 °C - - 1.5 pF trr reverse recovery time IF = 10 mA; IR = 10 mA; IR(meas) = 1 mA; - - 4 ns RL = 100 Ω; Tamb = 25 °C VFRM peak forward recovery IF = 10 mA; tr = 20 ns; Tamb = 25 °C - - 1.75 V voltage 006aab132 103 006aab133 102 IR I (1) F (µA) (mA) 10 102 1 (2) 10-1 10 (3) 10-2 (1) (2) (3) (4) 10-3 1 10-4 (4) 10-1 10-5 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 0 20 40 60 80 100 VF (V) VR (V) (1) Tamb = 150 °C (1) Tamb = 150 °C (2) Tamb = 85 °C (2) Tamb = 85 °C (3) Tamb = 25 °C (3) Tamb = 25 °C (4) Tamb = -40 °C (4) Tamb = -40 °C
Fig. 1. Forward current as a function of forward Fig. 2. Reverse current as a function of reverse voltage; typical values voltage; typical values
BAV99 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet 1 July 2022 4 / 10
