SFH610A, SFH6106
www.vishay.com Vishay Semiconductors

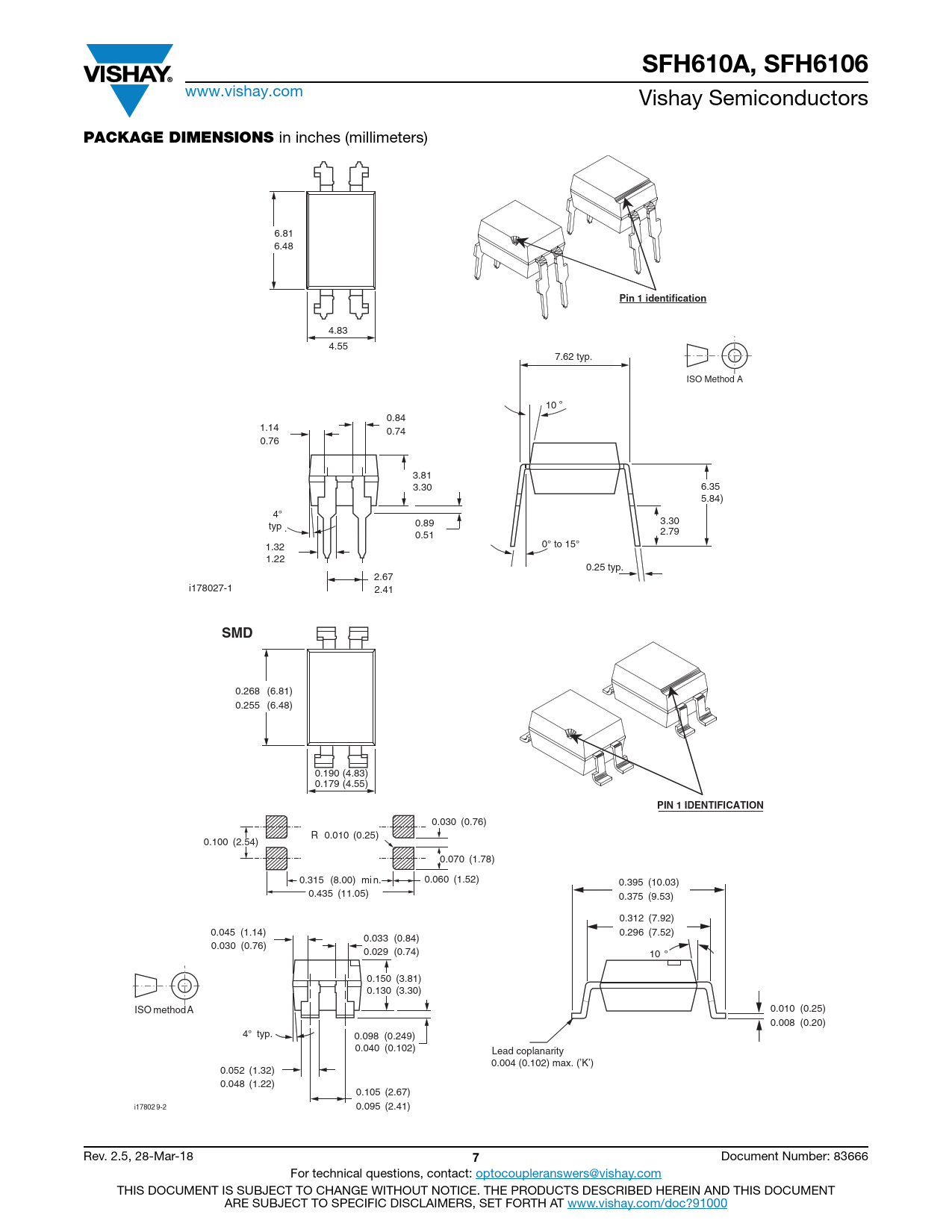

PACKAGE DIMENSIONS
in inches (millimeters) 6.81 6.48
Pin 1 identification
4.83 4.55 7.62 typ. IS O M ethod A 10 ° 0.84 1.14 0.74 0.76 3.81 3.30 6.35 5.84) 4° 3.30 typ 0.89 . 2.79 0.51 0° to 15° 1.32 1.22 0.25 typ. 2.67 i178027-1 2.41
SMD
0.268 (6.81) 0.255 (6.48) 0.190 (4.83) 0.179 (4.55)
PIN 1 IDENTIFICATION
0.030 (0.76) R 0.010 (0.25) 0.100 (2.54) 0.070 (1.78) 0.315 (8.00) mi n. 0.060 (1.52) 0.395 (10.03) 0.435 (11.05) 0.375 (9.53) 0.312 (7.92) 0.045 (1.14) 0.296 (7.52) 0.033 (0.84) 0.030 (0.76) 0.029 (0.74) 10 ° 0.150 (3.81) 0.130 (3.30) ISO method A 0.010 (0.25) 0.008 (0.20) 4° typ. 0.098 (0.249) 0.040 (0.102) Lead coplanarity 0.004 (0.102) max. (’K’) 0.052 (1.32) 0.048 (1.22) 0.105 (2.67) i17802 9-2 0.095 (2.41) Rev. 2.5, 28-Mar-18
