Datasheet NDS9948 (Fairchild) - 3
| Manufacturer | Fairchild |
| Description | Dual 60V P-Channel PowerTrench MOSFET |
| Pages / Page | 6 / 3 — NDS9948. Electrical Characteristics (cont.). Symbol. Parameter. Test. … |
| File Format / Size | PDF / 382 Kb |
| Document Language | English |

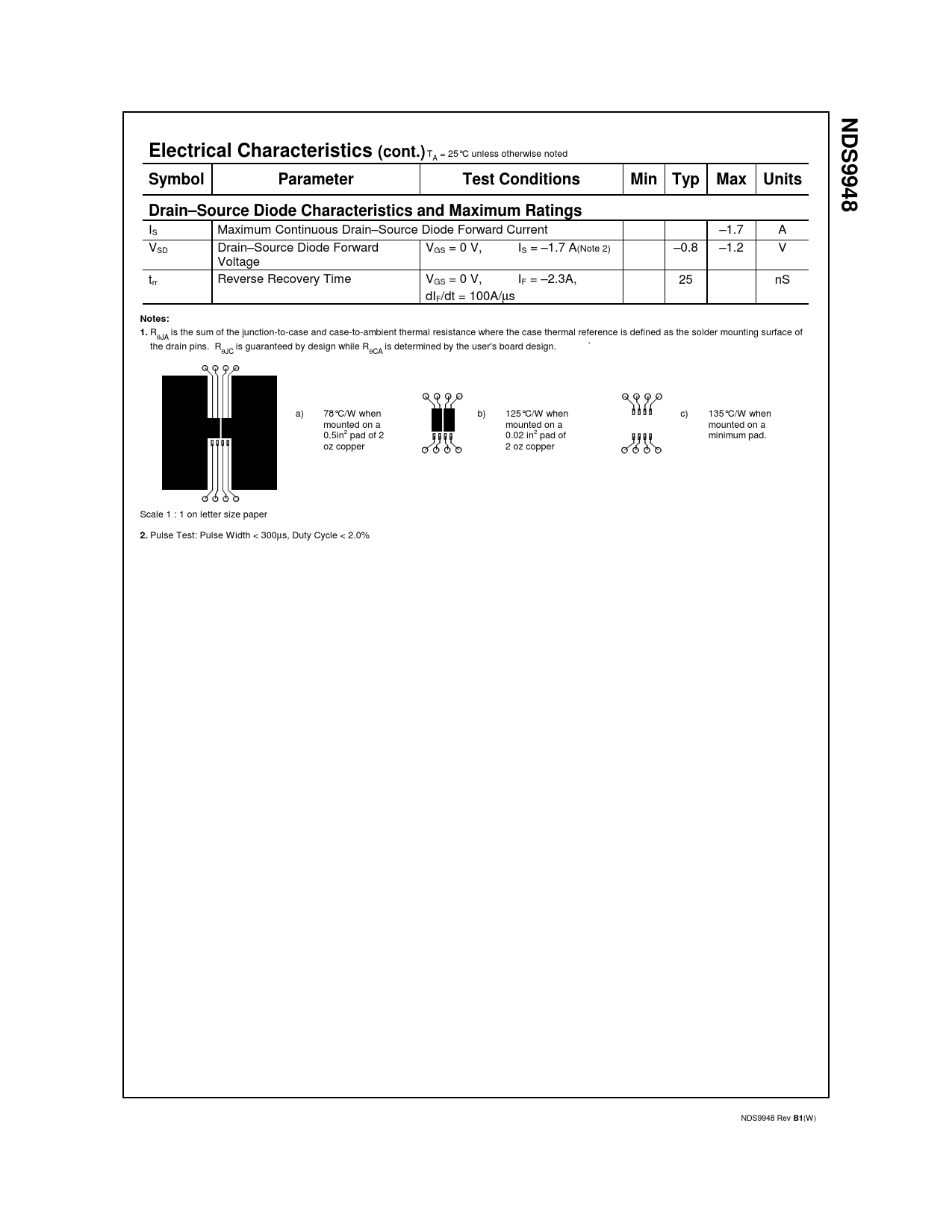

NDS9948. Electrical Characteristics (cont.). Symbol. Parameter. Test. Conditions. Min. Typ. Max. Units
Model Line for this Datasheet
Text Version of Document
NDS9948 Electrical Characteristics (cont.)
T = 25°C unless otherwise noted A
Symbol Parameter Test Conditions Min Typ Max Units Drain–Source Diode Characteristics and Maximum Ratings
IS Maximum Continuous Drain–Source Diode Forward Current –1.7 A VSD Drain–Source Diode Forward VGS = 0 V, IS = –1.7 A(Note 2) –0.8 –1.2 V Voltage trr Reverse Recovery Time VGS = 0 V, IF = –2.3A, 25 nS dIF/dt = 100A/µs
Notes: 1.
Rθ is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of JA the drain pins. Rθ is guaranteed by design while R is determined by the user's board design. ` JC θCA a) 78°C/W when b) 125°C/W when c) 135°C/W when mounted on a mounted on a mounted on a 0.5in2 pad of 2 0.02 in2 pad of minimum pad. oz copper 2 oz copper Scale 1 : 1 on letter size paper
2.
Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0% NDS9948 Rev
