Datasheet TIP110, TIP111, TIP112 (NPN); TIP115, TIP116, TIP117 (PNP) (ON Semiconductor) - 3
| Manufacturer | ON Semiconductor |
| Description | Plastic Medium-Power Complementary Silicon Transistors |
| Pages / Page | 8 / 3 — TIP110, TIP111, TIP112 (NPN); TIP115, TIP116, TIP117 (PNP). Figure 1. … |
| File Format / Size | PDF / 157 Kb |
| Document Language | English |

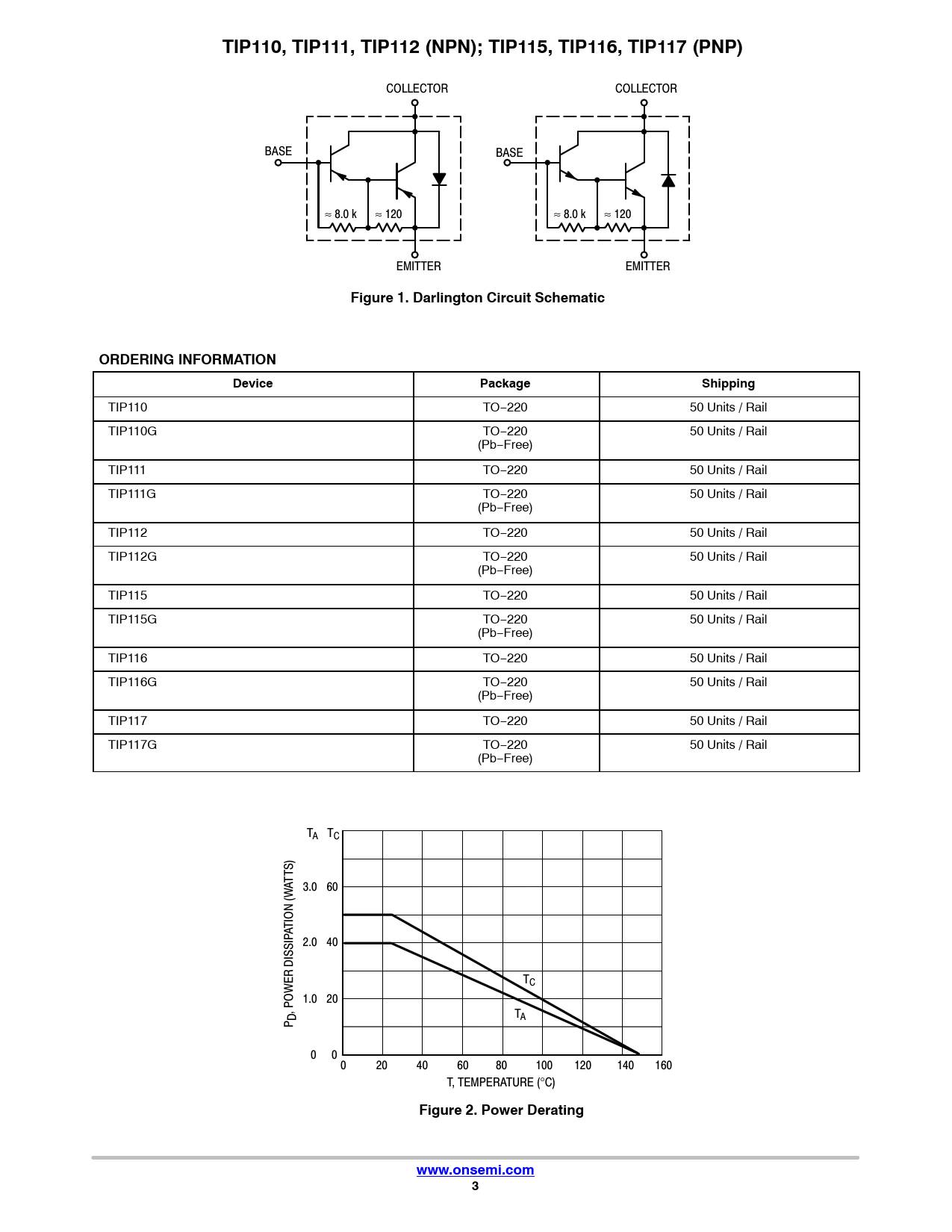

TIP110, TIP111, TIP112 (NPN); TIP115, TIP116, TIP117 (PNP). Figure 1. Darlington Circuit Schematic. ORDERING INFORMATION
Model Line for this Datasheet
Text Version of Document
TIP110, TIP111, TIP112 (NPN); TIP115, TIP116, TIP117 (PNP)
COLLECTOR COLLECTOR BASE BASE ≈ 8.0 k ≈ 120 ≈ 8.0 k ≈ 120 EMITTER EMITTER
Figure 1. Darlington Circuit Schematic ORDERING INFORMATION Device Package Shipping
TIP110 TO−220 50 Units / Rail TIP110G TO−220 50 Units / Rail (Pb−Free) TIP111 TO−220 50 Units / Rail TIP111G TO−220 50 Units / Rail (Pb−Free) TIP112 TO−220 50 Units / Rail TIP112G TO−220 50 Units / Rail (Pb−Free) TIP115 TO−220 50 Units / Rail TIP115G TO−220 50 Units / Rail (Pb−Free) TIP116 TO−220 50 Units / Rail TIP116G TO−220 50 Units / Rail (Pb−Free) TIP117 TO−220 50 Units / Rail TIP117G TO−220 50 Units / Rail (Pb−Free) T T A C TTS) A 3.0 60 TION (W A 2.0 40 TC 1.0 20 , POWER DISSIP D TA P 0 0 0 20 40 60 80 100 120 140 160 T, TEMPERATURE (°C)
Figure 2. Power Derating www.onsemi.com 3
